LANBERG Cable UTP 1Gb/s 305m CCA Black
Lanberg
Product code: LCU6-10CC-0305-BK
- Lenght: 305 m
- Connector: None
Product not available
The product is out of stock from all warehouses and is not currently available.

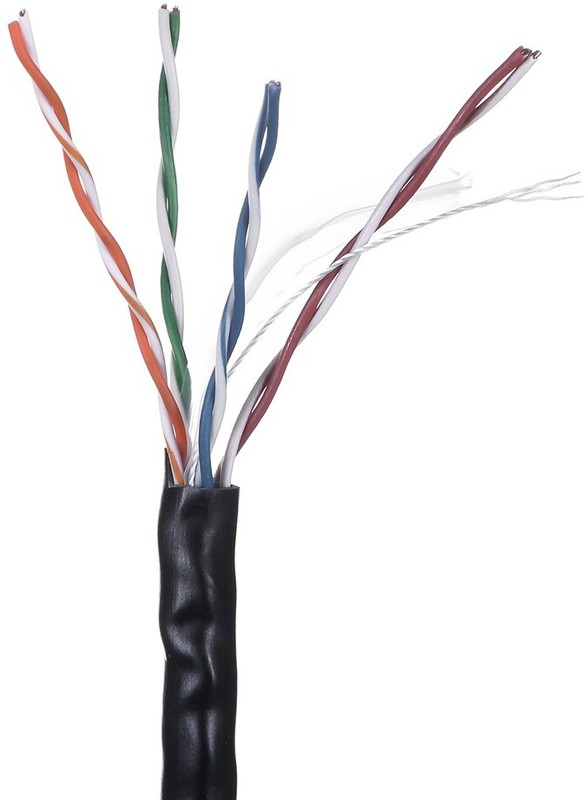

LAN UTP 1GB/S 305M CCA wire black cable.
- Data transmission speed: 1Gbps
- Conductor type: copper (CCA)
- AWG 23 (4 x 2 x 0.57 mm)
- Conductor construction: single wire
- Printed length counter every meter of cable
- PVC outer insulation: 5.6 mm
- HDPE insulation of conductor: 0.95 mm
- Operation up to 250 Mhz

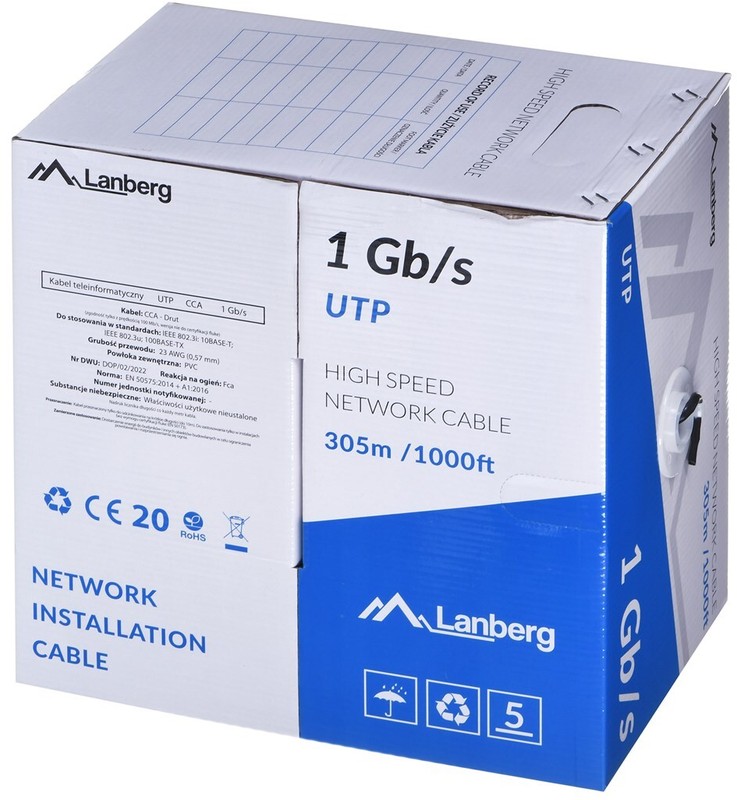

- Packaging: cardboard box
Electrical parameters (20 degrees):
- Conductor resistance (max.): < 27 Ohm / 100 m
- Rated voltage: < 30V
- Maximum current: 0.5 A
- Storage and transport temperature: 0 - 60 degrees
- Operating temperature: -20 - 75 degrees
- Operating distance: 100 m
PURPOSE: cable intended for short lengths (up to 10m) cut-off only. For use only in installations without Fluke certification requirement (EN 50173).
