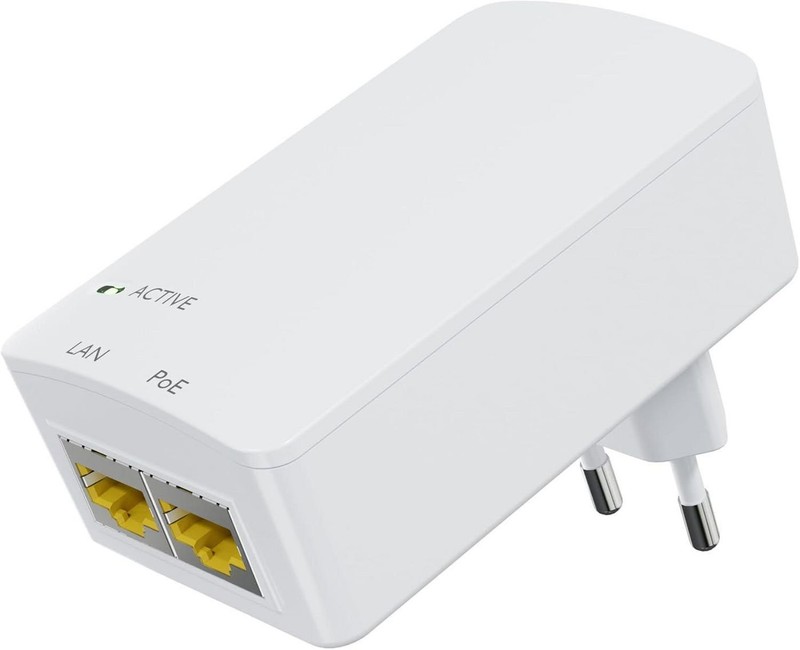

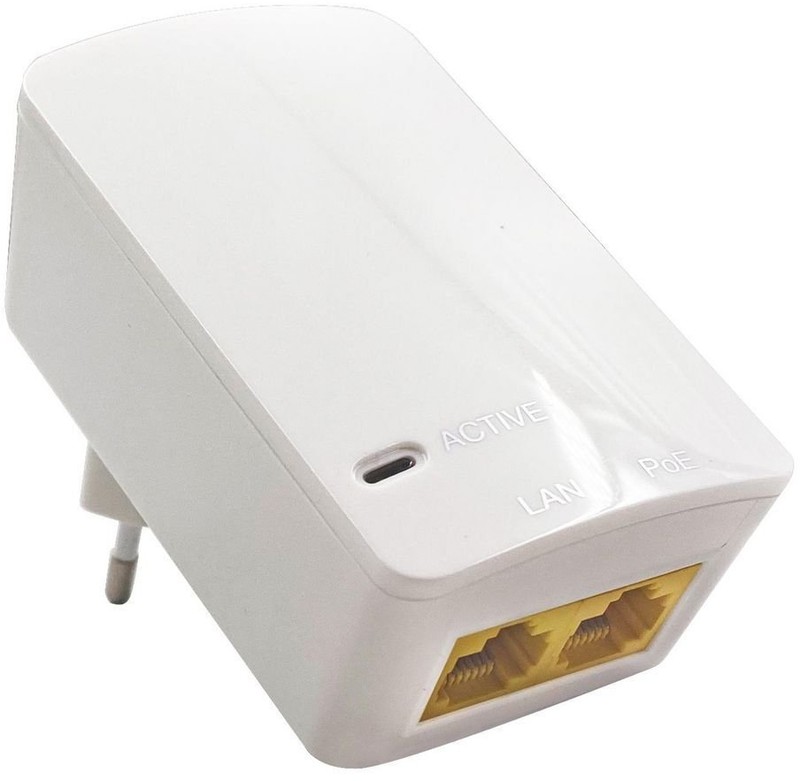

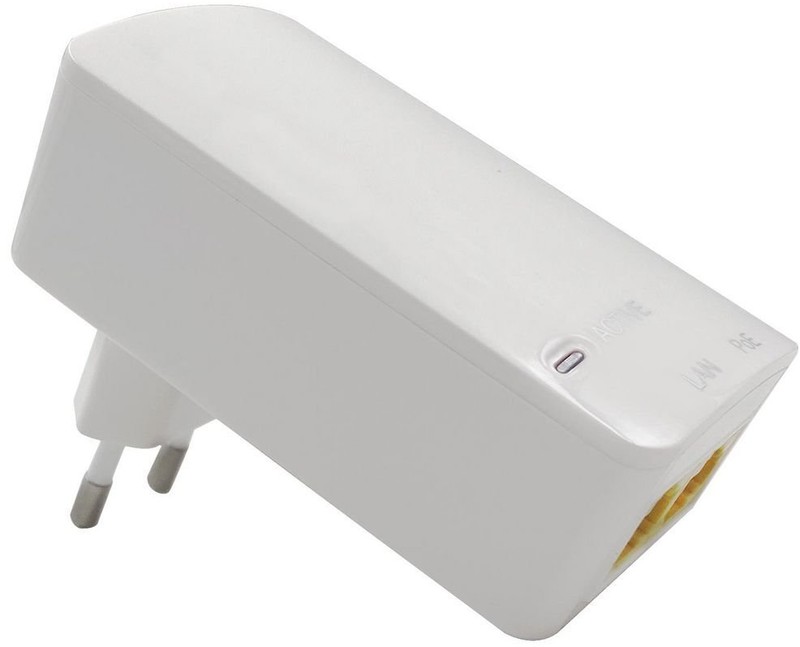

MicroConnect PoE Injector 48V 15.4W EU Plug
Product code: MC-POEINJ-EU
Product not available
The product is out of stock from all warehouses and is not currently available.
- Fully compliant with IEEE 802.3af PoE standards for safe and reliable operation.
- Delivers 48V DC, 0.32A (15.4W) over two-pair Ethernet output for compatible devices.
- Supports 10/100/1000 Mbps Ethernet and works with wireless APs, IP cameras, and phones.
- Built-in chip automatically detects and classifies PDs before delivering power.
- Compact, low-cost injector with 100–240V AC input and up to 100m transmission distance.
Supporting both 10/100 Base-T and Gigabit networks, this injector provides an efficient and cost-effective power solution that meets the IEEE 802.3af PoE standard.
Engineered for plug-and-play indoor use, the MC-POEINJ-EU features a compact design, integrated PD detection, and automatic classification to ensure safe operation. With an input range of 100–240V AC and a maximum transmission distance of 100 meters, it’s ideal for extending network power where outlets are limited.
- Warranty (Month(s)): 24
- Net Weight (Product,kg): 0,25
- Height (Product,cm): 16,5
- Width (Product,cm): 6,2
- Depth (product,cm): 3,85
- Gross Weight (Package,kg): 0,44
- Height (Package,cm): 5,7
- Width (Package,cm): 18,4
- Depth (Package,cm): 13,9
- AC adapter input voltage (V): 100 - 240
- Cabling technology: 10/100
- Certification: CE, FCC
- Ethernet interface type: 10 Gigabit Ethernet|100 Gigabit Ethernet
- Ethernet LAN (RJ-45) ports: 2,0
- Ethernet LAN data rates (Mbit/s): 10|100|1000
- Networking standards: IEEE 802.3af|IEEE 802.3i|IEEE 802.3x
- Operating relative humidity (H-H) (%): 20 - 85
- Operating temperature (T-T) (°C): 0 - 40
- Output power (W): 15,4
- Plug and Play: Yes
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) voltage (V): 48,0
- Product colour: White
- RoHS compliance: Yes
- Suitable for use in country/location: Europe
- Sustainability certificates: RoHS
For more detailed information, please contact customer service via email or the chat window.
