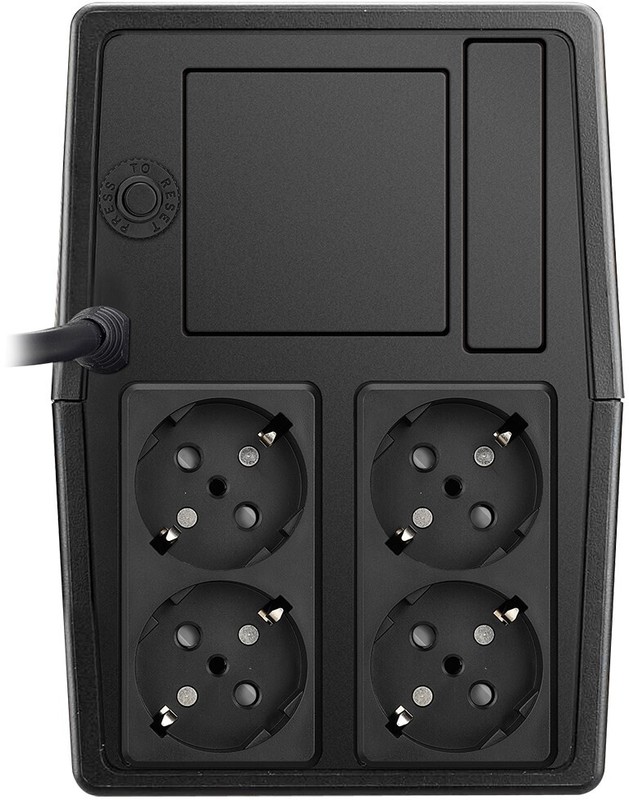

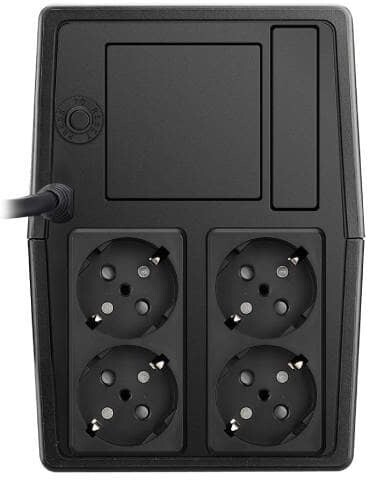

FSP FP 1000 Tower Line-interactive 1000VA 600W 2x12V/7Ah 4x Schuko
- Topology: Line-Interactive
- UPS W: 600 W
- UPS VA: 1 kVA
Features
- Compact size
- Excellent microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
Technical data
| MODEL | FP 600 | FP 800 | FP 1K | FP 1.5K | FP 2K |
| PHASE | Single phase | ||||
| CAPACITY | 600VA / 360W | 800VA / 480W | 1000VA / 600W | 1500VA / 900W | 2000VA / 1200W |
| PARALLEL CAPABILITY | NO |
|
| ||
| INPUT | |||||
| Nominal Voltage | 110 / 120Vac or 220 / 230 / 240Vac | ||||
| Voltage Range | 81-145Vac / 162-290Vac | ||||
| Frequency Range | 60 / 50Hz (auto sensing) | ||||
| Power Factor | - | ||||
| OUTPUT | |||||
| Output Voltage | 110 / 120Vac or 220 / 230 / 240Vac | ||||
| AC Voltage Regulation (Batt. Mode) | ± 10% | ||||
| Frequency Range (Synchronized Range) | - | ||||
| Frequency Range (Batt. Mode) | 60Hz or 50Hz ±1 Hz | ||||
| Current Crest Ratio | - | ||||
| Harmonic Distortion | - | ||||
| Transfer time AC mode to Battery mode | Typical 2-6 ms | ||||
| Transfer time Inverter to Bypass | - | ||||
| Waveform (Batt. Mode) | Simulated Sine Wave | ||||
| Overload AC Mode | - | ||||
| Overload Battery Mode | - | ||||
| EFFICIENCY | |||||
| AC Mode | - | - | - | - | - |
| ECO Mode | - | - | - | - | - |
| Battery Mode | - | - | - | - | - |
| BATTERY | |||||
| Battery Type | 12V / 7Ah | 12V / 9Ah | 12V / 7Ah | 12V / 9Ah | 12V / 9Ah |
| Numbers | 1 | 1 | 2 | 2 | 2 |
| Typical Recharge Time | 4 hours recover to 90% capacity | 4-6 hours recover to 90% capacity | |||
| INDICATORS | |||||
| AC mode | Green lighting | Green lighting | |||
| Battery mode | Green flashing | Yellow flashing | |||
| Fault | - | Red lighting | |||
| ALARM | |||||
| Battery mode | Sounding every 10 seconds | ||||
| Low battery | Sounding every second | ||||
| Overload | Sounding every 0.5 second | ||||
| Fault | Continuosly sounding | ||||
| PROTECTION | |||||
| Full Protection | Overload, discharge and overcharge protection | ||||
| PHYSICAL | |||||
| Dimension, D X W X H (mm) | 279 x 101 x 142 | 320 x 130 x 182 | |||
| Net Weight (kgs) | 4.25Kg | 4.9Kg | 8.2Kg | 10.4 Kg | 11 Kg |
| ENVIRONMENT | |||||
| Operation Temperture | 0-40°C | ||||
| Operation Humidity | 0 - 90 % and non-condersing | ||||
| Noise Level | Less than 40dB @ 1 meter | ||||
| MANAGEMENT | |||||
| Smart RS-232/USB | - | ||||
| Optional SNMP | - | ||||
| Product specifications are subject to change without further notice | |||||
Backup time table
| MODEL | FP 600 | FP 800 | FP 1K | FP 1.5K | FP 2K |
| Battery Type | 12V / 7Ah | 12V / 9Ah | 12V / 7Ah | 12V / 9Ah | 12V / 9Ah |
| Numbers | 1 | 1 | 2 | 2 | 2 |
| Backup time | 19 min. | 20 min. | 18 min. | 18 min. | 15 min. |
| Load Condition | Mac book 15” (90W) x 1 | Mac book 13” (60W) x 2 | Mac book 13” (60W) x 1 | Mac book 13” (60W) x 2 | Mac book 13” (60W) x 2 |
