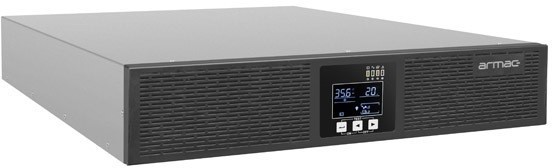

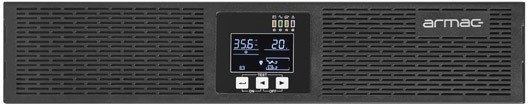

ARMAC UPS On-line Rack PF1 R/2000I/PF1
- Topology: Line interactive
- UPS W: 2000 Watt / 2000 VA W
- UPS VA: 2 kVA VA
UPS RACK ARMAC R/2000I/PF1 ON-LINE 2000VA 6X IEC C13 USB-B LCD metal case
Power factor
A high Power Factor of 1.0 will ensure that almost all of the input power to the device will be output.
Consumption of electricity for the device's own needs is marginal, which translates into high energy efficiency. As a result, the maximum power of the connected devices can be 2000W with an apparent power of 2000VA.
Immediate response
A shutdown due to a power outage can result in serious financial losses and the loss of important data. With Armac R/2000I/PF1 you don't have to worry about it. The device works in continuous mode, which means that in the event of a failure it does not have to switch to battery operation. The lack of waiting time for a response is an advantage in the form of reducing the risk of damage to the supported device.
Increased battery life
Even more battery life? It is possible with the Armac R/2000I/PF1 UPS, thanks to the change of the default "Cut-Off" voltage value, which directly reduces the risk of excessive discharge of the battery, extends its life and eliminates the chance of its damage. Expecting longer uptime at the expense of lifetime? Thanks to the settings available from the LCD panel, you can change the voltage value yourself. Moreover, every 60 days the UPS will perform an automatic battery discharge test, all without requiring any user action. This test will not only extend battery life, but also minimize the risk of potential servicing. See how simple it is.
Possibility to extend the backup time battery module - model B/0609/R
There are situations when much more time is needed to ensure the safety of electronic devices during a power outage. Therefore, in order to extend its battery backup time, the R/2000-3000I/PF1 uninterruptible power supply has been equipped with a socket for connecting additional, dedicated Battery Pack B/0609/R modules. However, it is worth remembering that when connecting the BP, make sure that the total voltage of the UPS battery and the module is the same.
Full security
The correct operation of the emergency power supply is supervised by a specially built-in processor that controls the parameters of the device itself, its correct operation and the power supply of the connected devices. The technology used in the UPS also ensures automatic battery charging in Stand-By mode and automatic start-up after the return of mains power.
Importantly, each Armac emergency power supply system is equipped with an overload protection module. When the UPS is overloaded during its normal operation, the device will automatically safely terminate the power supply to the devices connected to it. This solution enhances the safety and comfort of using Armac uninterruptible power supplies.
Perfect for sensitive equipment
Due to the nature of its operation (full sine wave when operating in battery mode), the power supply can be used with devices with an electric motor or heater, e.g. laser printers, scanners, garage and entrance gates, electric roller shutters, central heating furnaces. You also don't need to invest in expensive RCDs. This model can easily work with a circuit breaker up to 30 mA.
Convenience of monitoring and easy transport
Connect the UPS to a computer (USB or RS-232) and use the PowerManager II software, which will allow you not only to issue commands, but also to monitor the operation of the device. Its simple interface will allow even less advanced users to handle the tool.
Want to transport your device from place to place? From now on it's possible. All larger electrical components such as capacitors and coils have been additionally reinforced with an additional layer of glue between them and the PCB laminate. This solution increases reliability and safety, making moving the device from place to place even easier and safer.
Many installation options and helpful mounting accessories included
The device can be mounted in a 19" Rack cabinet in two ways: using only mounting ears (included with the product) or with the additional use of a set of Armac - R/0019 mounting rails, this option is recommended due to better stability and safety Battery Pack.

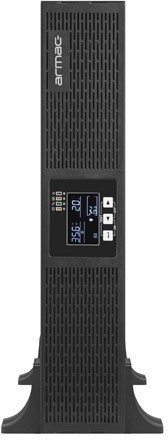

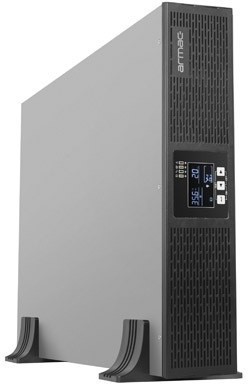

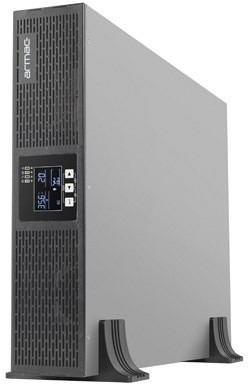

The UPS set also includes special stands that allow the device to be installed vertically, outside the Rack cabinet. If we want to arrange the UPS and more than one Battery Pack in this way, we have this option thanks to the leg extension elements. The package also includes a supply of M6 screws. Both products are made of metal alloy, which guarantees the solidity of the material.
Performance you can count on

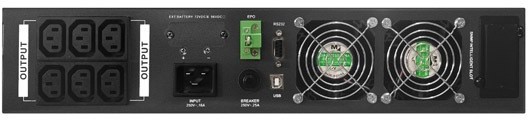

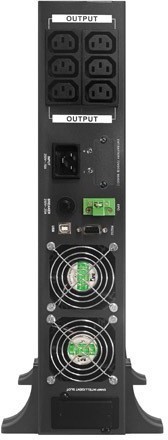

The Armac R/2000I/PF1 emergency power supply was designed with the most demanding tasks in mind, such as protection of really powerful computers, workstations or equipment with high energy consumption. The UPS is able to do such hard work thanks to the use of more efficient 9Ah batteries, with a Power Factor of 1.0. What's more, this model has 6 IEC 320 C13 output sockets, allowing you to protect several devices at the same time.
The UPS of this series always provide full sine wave, it was created for sensitive equipment with high power consumption. The double conversion function ensures that the UPS has ideal electrical parameters at the output, it converts all incoming AC power and then supplies the device with the current generated by the UPS itself. The transfer time is zero between AC and DC mode.
