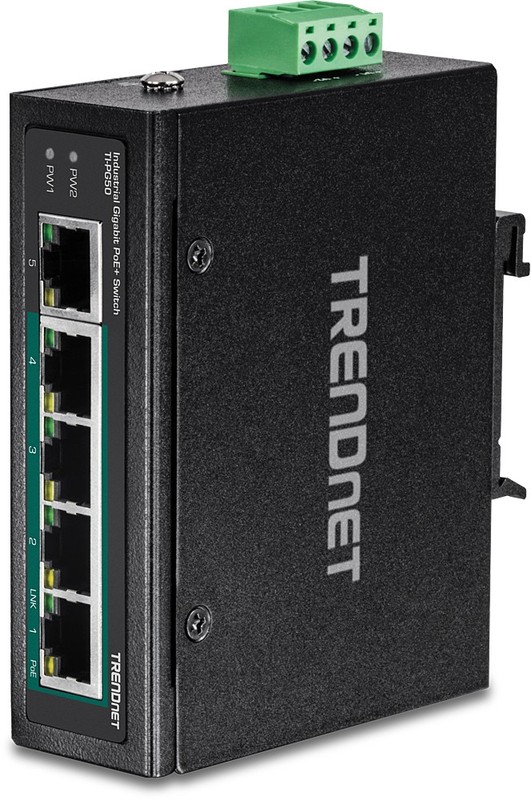

Trendnet 5-Port Industrial Gigabit PoE + DIN-Rail Switch
TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These rugged industrial switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial switch minimizes network downtime.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls.
PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE or PoE+ power.
Fault Tolerance
The industrial switch features redundant power inputs for backup power with overload current protection.
Industrial Design
Rugged IP30 rated housing with a high degree of vibration and shock resistance, and an operating temperature range of -40° – 75° C (-40° – 167° F).
_1.png)
PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port from the industrial PoE+ switch with a 120W total PoE power budget
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
Easy Installation
No configuration needed, simply connect PoE+ network devices to the industrial PoE+ switch
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Switching Capacity
10Gbps switching capacity
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S15052, TI-S24052, TI-S12048 or TI-S24048)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Extreme Temperatures
Indsutrial hardened PoE switch is rated for an operating temperature range of -40° – 75° C (-40° – 167° F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges
