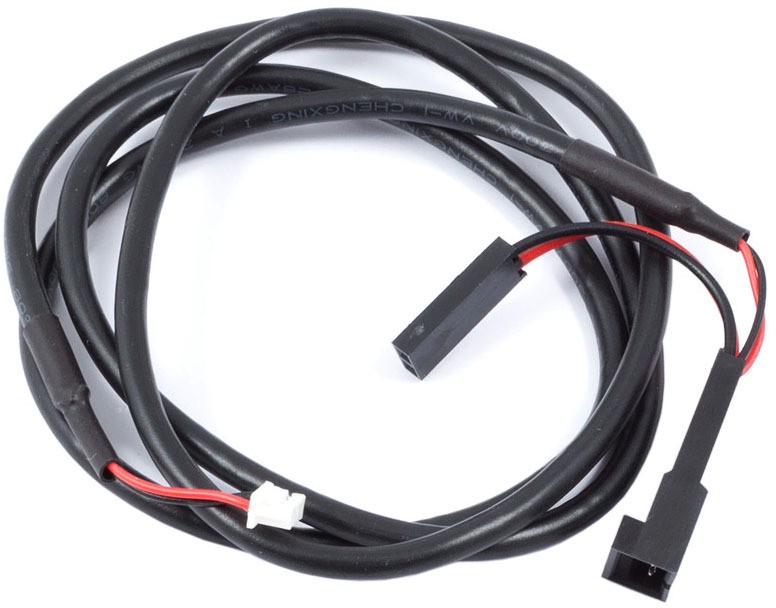

Aquacomputer Connection Cable Alarm Output - VISION/OCTO Series, 70mm
This cable from Aquacomputer, is used for emergency shutdown of the computer in case of alarm. It is compatible with the Vision series and connects to the power button input of the main board without affecting the power button.
Included in delivery:
- 1x cable (length 70cm)
Compatible with the following devices:
- cuplex cryos NEXT with VISION
- VISION connection terminal for cryographics (23664, 23665, 23666, 23667)
- VISION Touch (53232, 53235)
- OCTO (53286)
Note: Before connecting the cable, please make sure that the alarm output/tacho signal output of the corresponding device is configured correctly!
Brief instructions:
Settings for VISION devices (in aquasuite software):
Tab "Alarm settings": Selection item "Power button (53216)" must be activated.
Only then connect the alarm cable to the mainboard. Then check the correct function by provoking an alarm. If the PC does not switch off, turn the plug on the mainboard 180 degrees and repeat the test. During the emergency shutdown data can be lost because the operating system and open programs are not closed properly!
