Cooler Master MasterBox 600 White Desktop Case
- CPU<: 170 mm
- GPU<: 41 cm
- Colour: White
- Case form: Desktop

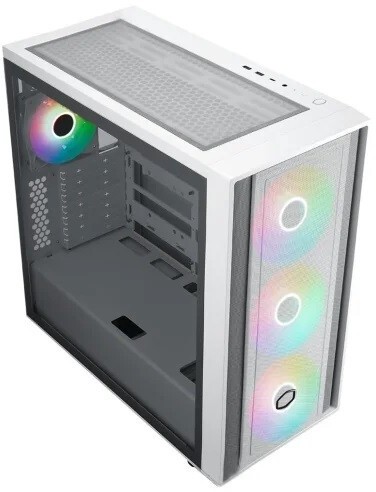

Cooler Master MasterBox 600 computer case (white)
The MasterBox 600 is a spacious computer case designed for building modern systems based on ITX, Micro ATX, ATX, or E-ATX motherboards. It also supports boards with an inverted connector layout (back-connector), which saves space at the front. The interior is designed for easy installation and broad compatibility - it will meet the expectations of gamers, graphic designers, and more!
Multiple cooling installation options
The case allows installation of up to 420 mm water cooling at the front, up to 360 mm at the top, and 120 mm at the rear. It also supports the installation of up to seven 120 mm fans or five 140 mm fans - depending on your preference. An additional advantage is the FineMesh front panel with a mesh structure that improves airflow and helps maintain optimal temperatures. Forget about computer overheating problems!

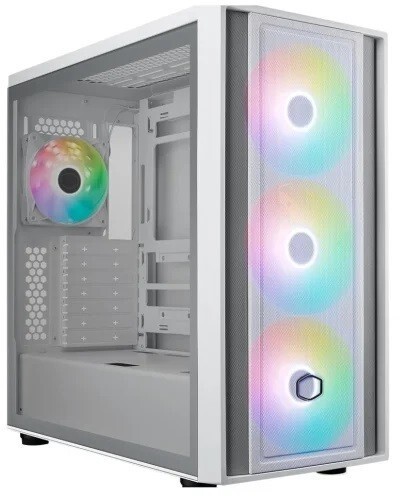

Four fans included
The MasterBox 600 comes pre-installed with three 140 mm SickleFlow ARGB PWM fans at the front and one 120 mm CF120 ARGB fan at the rear. Each is ARGB-compatible and offers adjustable speeds for efficient and quiet cooling right out of the box. You'll also find an ARGB hub for the fans included in the package.

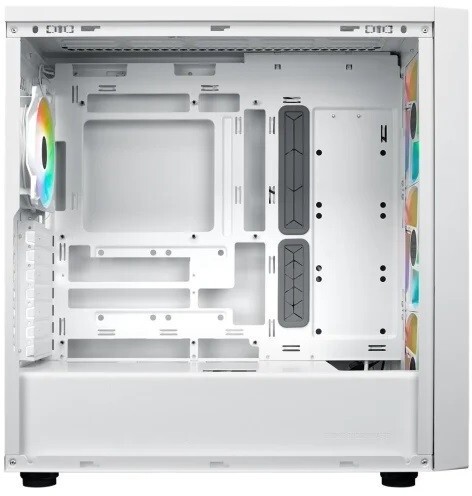

Spacious interior
The MasterBox 600 supports graphics cards up to 410 mm in length (or 360 mm with front-mounted water cooling) and CPU coolers up to 170 mm high. What's more, the built-in 3.5" hard drive cage is removable, making it easy to upgrade your setup and freeing up additional space for a power supply (up to 210 mm).
Even more convenience

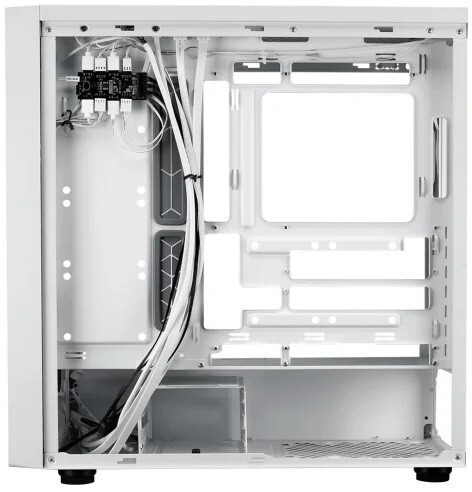

The case is equipped with two USB-A 3.2 Gen1 ports, one USB-C 3.2 Gen2x2 port, and a 3.5 mm combo jack. So you can easily connect the devices you need! In addition, the tempered glass side panel allows you to showcase components, such as those with ARGB lighting, and the thoughtfully designed space behind the motherboard tray (33-35 mm) makes neat cable routing easier.
| Manufacturer | Cooler Master |
|---|---|
| Model | MB600-WGNN-S00 |
| Color | White |
| External materials | Steel, plastic |
| Side panel | Tempered glass |
| Dimensions (with protruding parts) | 474 × 230 × 481 mm |
| Dimensions (without protruding elements) | 465 × 230 × 465 mm |
| Motherboard standard | ITX / Micro-ATX / ATX (supports back-connector boards) / E-ATX (max. 305 × 277 mm, may affect cable management) |
| Expansion card slots | 7 |
| 5.25" bays | None |
| 3.5" HDD bays | 2 |
| 2.5" SSD bays | 2 (maximum 6) |
| Connectors | 2x USB-A 3.2 Gen1, 1 × USB-C 3.2 Gen2x2, 1x 3.5 mm combo jack |
| ARGB Hub | ARGB Fans Hub |
| Factory-installed fans | Front: 3x 140 mm SickleFlow140 ARGB PWM (650-1800 rpm); Rear: 1x 120 mm CF120 ARGB (650-1200 rpm); |
| Fan mounting options | Front: 3x 120 mm / 3x 140 mm; Top: 3x 120 mm / 2x 140 mm; Rear: 1x 120 mm; |
| Water cooling mounting options | Front: 120 mm / 140 mm / 240 mm / 280 mm / 360 mm / 420 mm (limit: 457 x 140 x 27 mm); Top: 120 mm / 140 mm / 240 mm / 280 mm / 360 mm; Rear: 120 mm; |
| Max. height of CPU cooler | 170 mm |
| Max. PSU length | 170 mm / 210 mm (after HDD cage removal) |
| Max. length of graphics card | 360 mm / 410 mm (without water cooling on the front) |
| Space for cabling behind the motherboard tray | 33-35 mm |
| Dust filters | Top, bottom |
| Power supply standard | ATX |
Technical Details
- Karastatud klaas
- Plastic
- Steel
Connectivity
- 2 x USB 3.0
- 1 x mic/headphone (combo)
- 1 x USB 3.1 Typ C
Drive Bays
Fan support
- 120 mm
- 1
- 2
- 120
- 140 mm
- 3
