Jonsbo N4 NAS Case - White
- CPU<: 70 mm
- GPU<: 230 mm
- Colour: White
- Case form: Micro ATX
Compact case for NAS systems in white
Space for 2x 2.5" and 6x 3.5" drives
Four low-profile slots for expansion cards up to 230 mm
Supports CPU coolers up to 70 mm in height
1x USB-C and 1x USB-A on the front panel
Jonsbo N4: White NAS case with wood decor

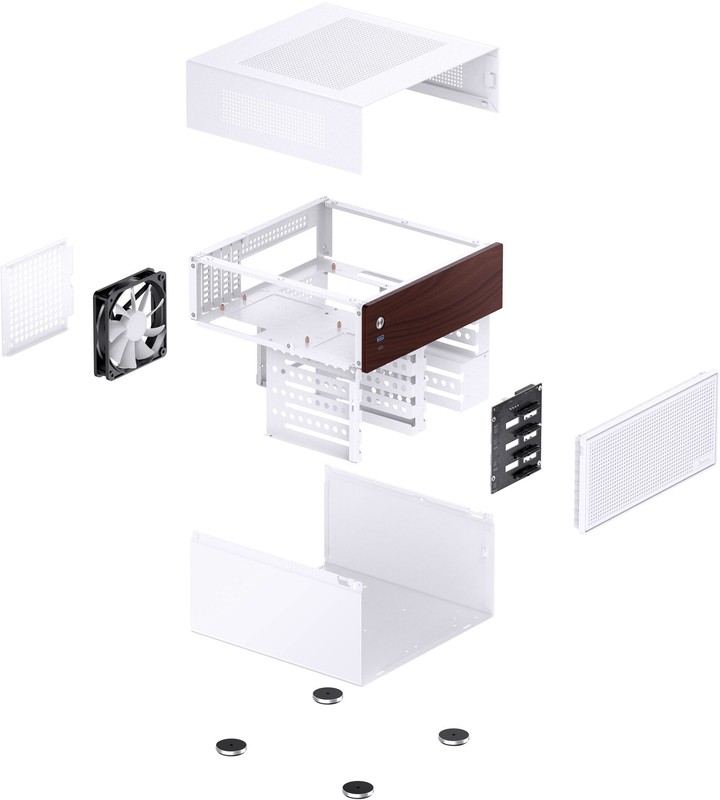

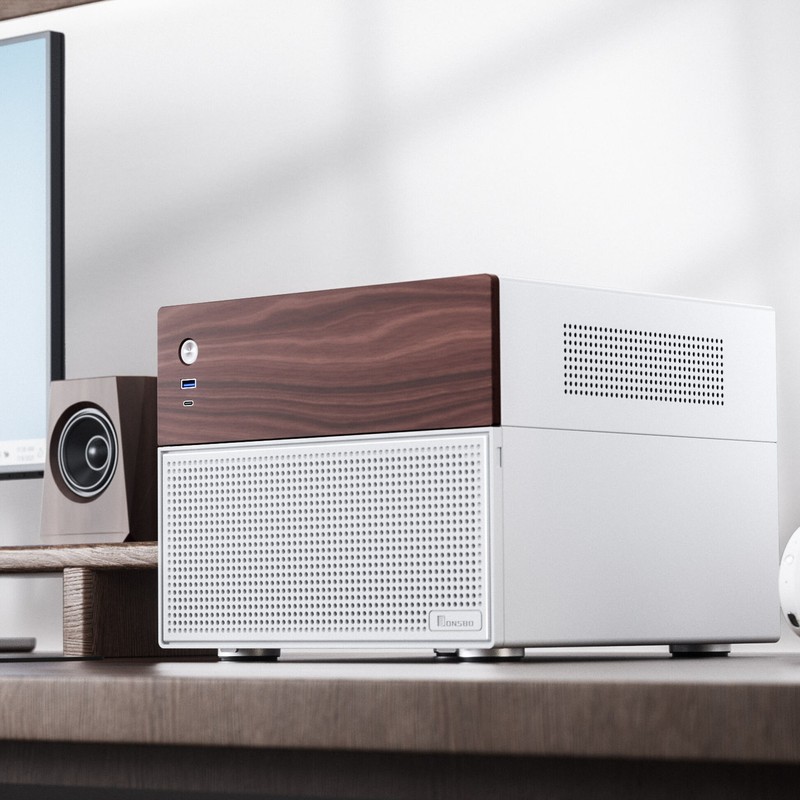

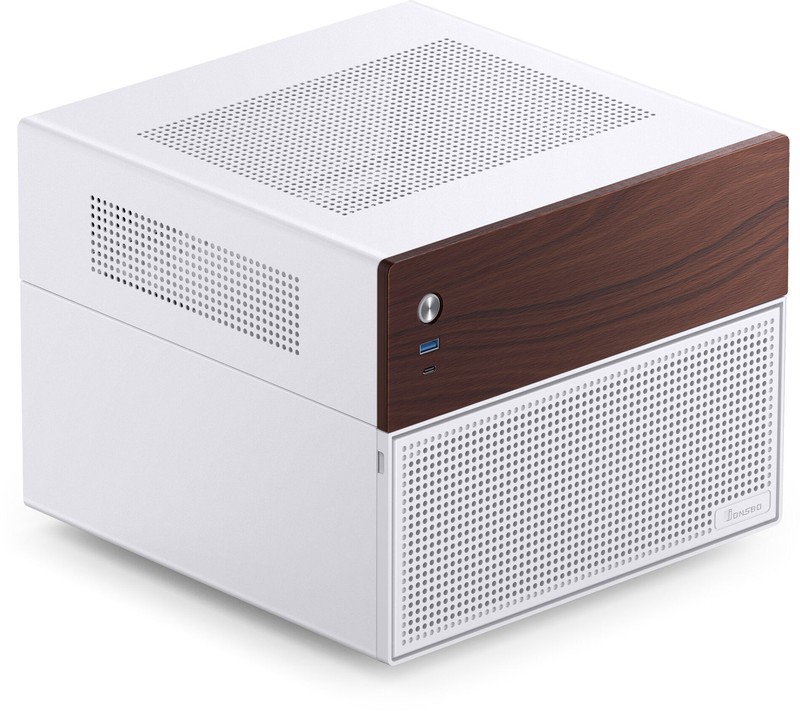

The Jonsbo N4 is a cube-shaped micro-ATX case for DIY NAS servers. The NAS case features a stylish design with an elegant strip of dark walnut wood, making it even more appealing.
Hardware Capabilities

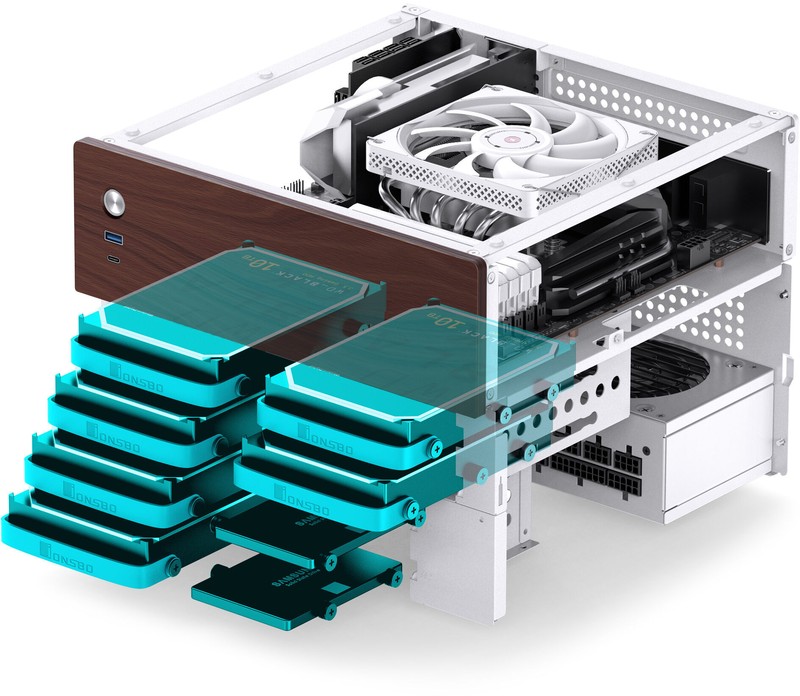

The Jonsbo N4 offers four half-height expansion slots and supports installation of expansion cards such as RAID controllers, host bus adapters (HBA), and network interface cards (NIC) up to 230 mm in length.

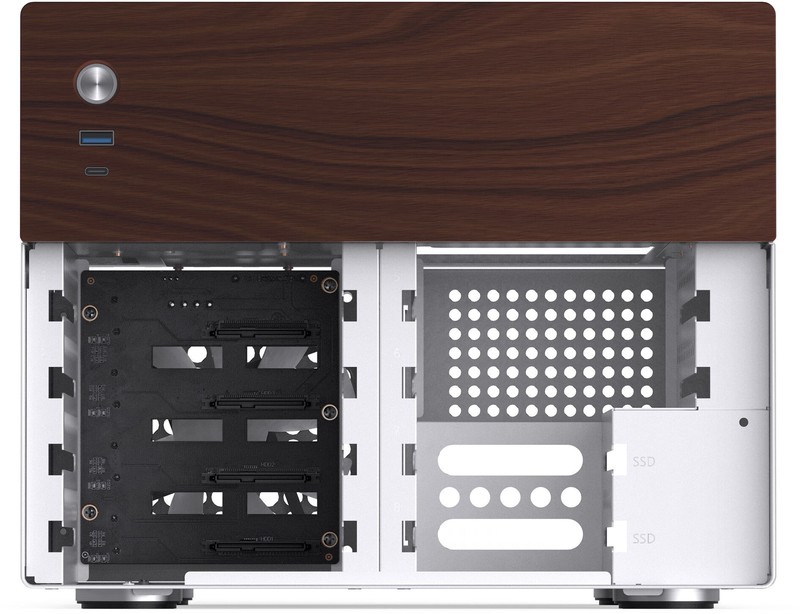

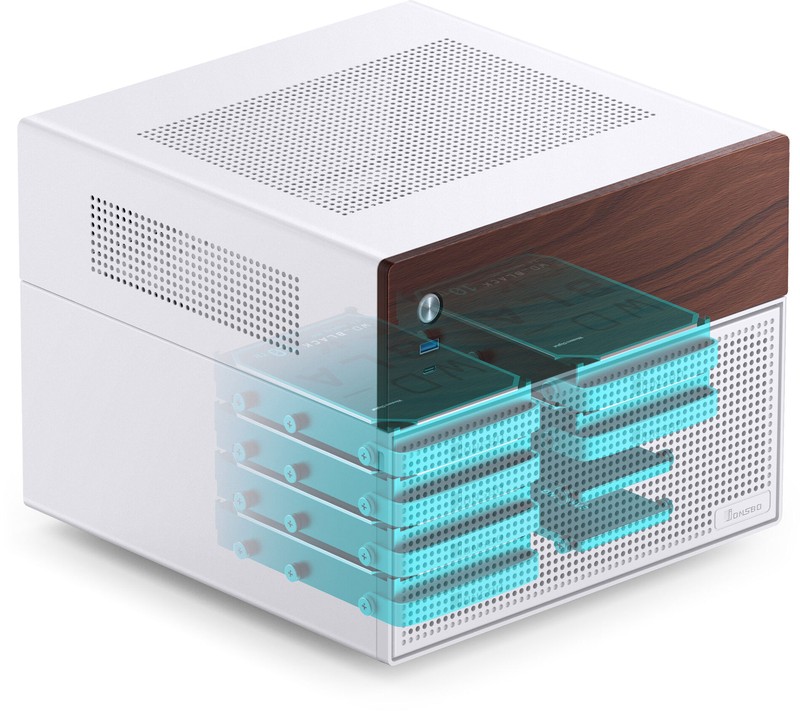

The key factor, however, is its storage capacity, as you can install up to six 3.5-inch hard drives and two 2.5-inch drives at the same time. Thanks to the pre-installed backplanes, these can be easily plugged in.
Effective cooling for continuous operation
The CPU cooler can be up to 70 mm high. An integrated 120 mm fan at the rear ensures optimal cooling of your NAS hardware. The perforated front panel in front of the drive bay, along with additional perforations on the sides and top, also help ensure your NAS system stays adequately cooled, thus guaranteeing longevity.
The wooden trim features both a USB-C port with 10 Gbit/s and a USB-A port with 5 Gbit/s.
Technical Details
- Wood
- Steel
