Kolink Citadel Mesh RGB Micro-ATX Case with Pre-Installed ARGB Fans and Controller
- CPU<: 190 mm
- GPU<: 345 mm
- Colour: Black
- Case form: Mini ITX; Micro ATX

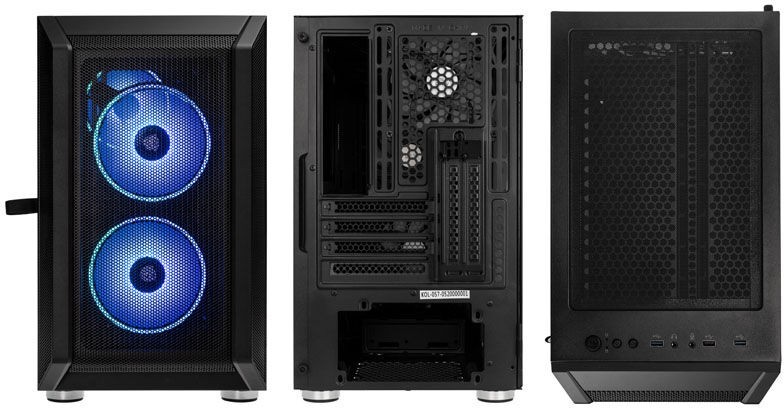

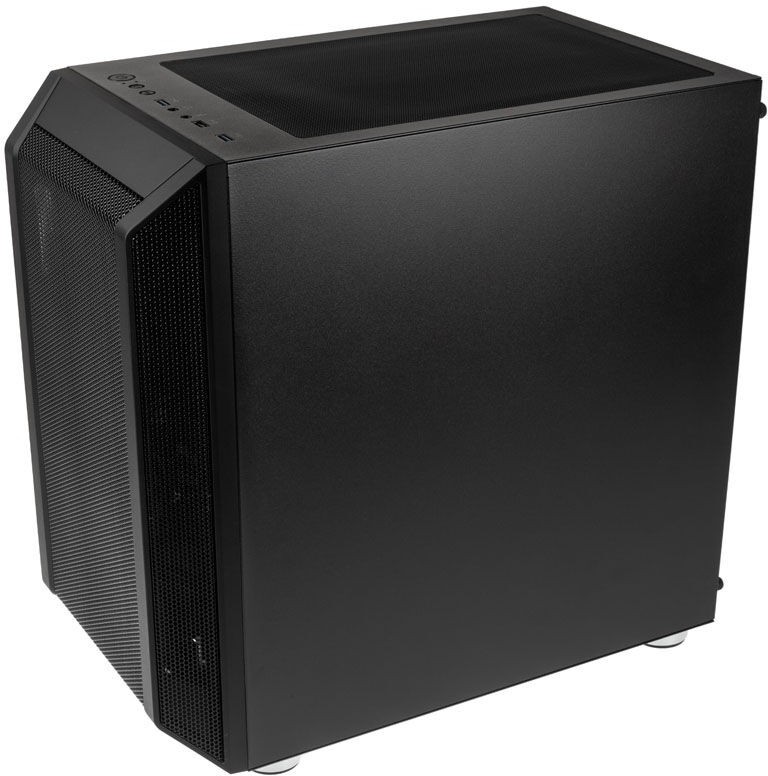

The Kolink Citadel Mesh Micro-ATX case is perfect for those who want a compact gaming case with extensive airflow. Featuring a large mesh front panel and two pre-installed 120mm PWM fans with digitally addressable RGB LEDs behind it, this Micro-ATX case skillfully combines an attractive design with outstanding performance capabilities. The tempered glass side door allows you to showcase your hardware components – the perfect case for top-tier gaming setups.
Features of the Kolink Citadel Mesh at a glance:

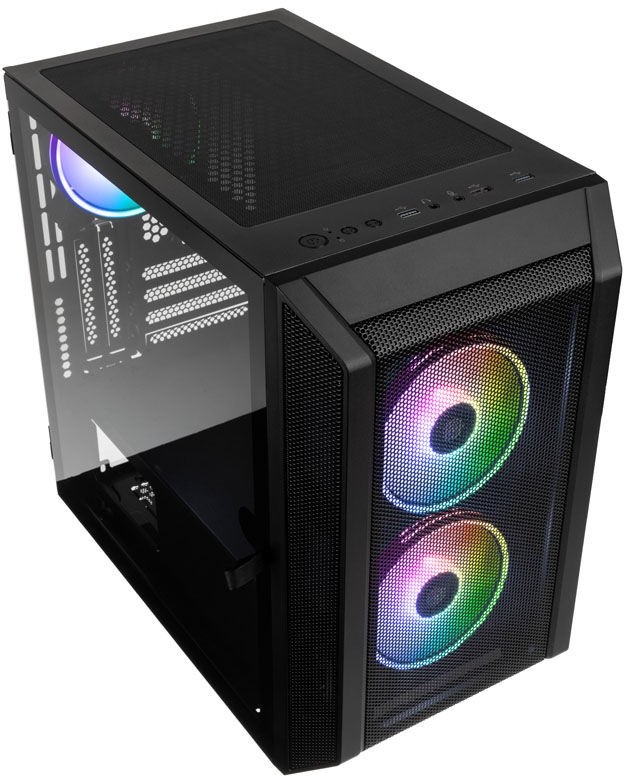

Large mesh front for optimal airflow
Comes with a total of three pre-installed 120mm PWM fans with ARGB LEDs
Includes a controller and lighting control via the I/O panel

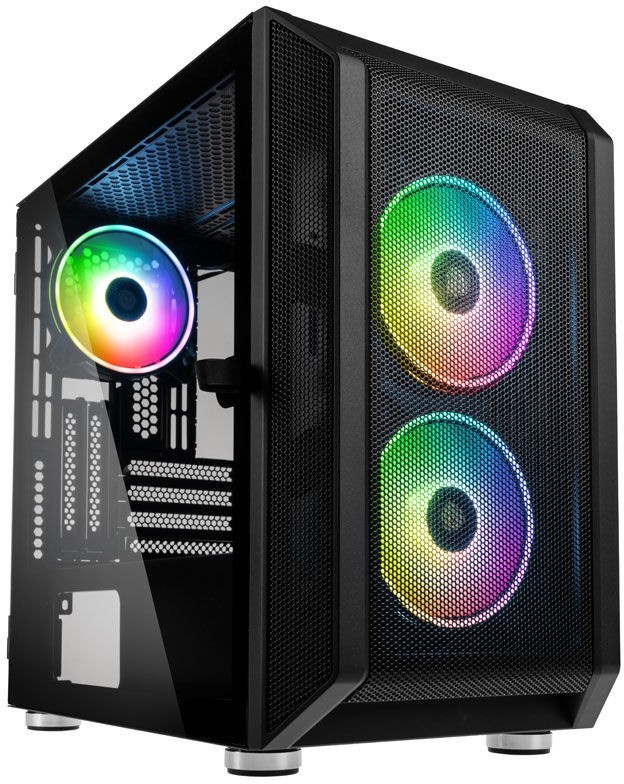

Tempered glass side door for an unobstructed view of the interior
Compatible with Micro-ATX and Mini-ITX motherboards
Vertical installation of a 2.5-slot graphics card possible (riser card sold separately)
Supports a 280mm radiator at the front and a 240mm radiator at the top

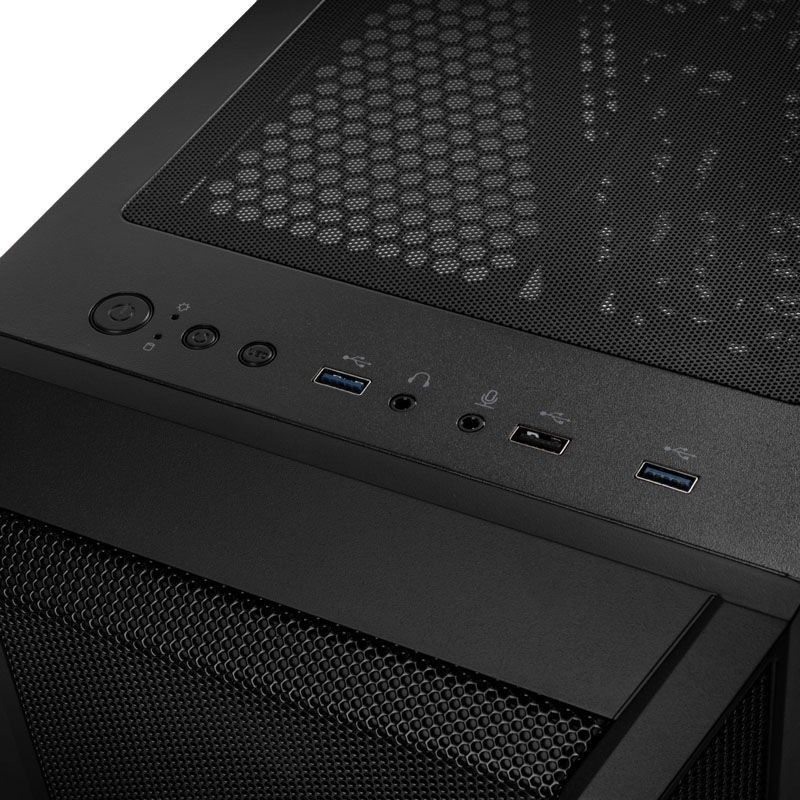

I/O panel with two USB 3.0 and one USB 2.0 port plus HD audio
Room for graphics cards up to 345mm, CPU coolers up to 190mm, and power supplies up to 200mm
Kolink Citadel Mesh: Optimized airflow meets performance
The Kolink Citadel Mesh is delivered with three 120mm PWM fans pre-installed at the front and rear. These fans provide excellent performance, run quietly, and can be connected to 4-pin fan headers on the motherboard. The motherboard then takes over automatic speed control via PWM. The front features a large mesh panel that contributes significantly to the excellent airflow inside the case. All fans are equipped with digitally addressable RGB LEDs, which can be controlled either via the included controller with a button on the I/O panel or directly via a motherboard equipped with 3-pin (5VDG) headers.
The two pre-installed 120mm fans at the front can be replaced with two larger 140mm fans. Additionally, two 140mm or 120mm fans can be installed on the top, and another 120mm fan can be mounted at the rear. For water cooling enthusiasts, a radiator up to 280mm can be installed at the front, with a 240mm radiator fitting at the top. On the top, there’s a magnetic dust filter above the mesh with a honeycomb pattern. The easy-to-open tempered glass side door allows you to admire the installed hardware, held closed by magnets.
The perfect case for enthusiasts
The interior is completely black, and the power supply shroud ensures a tidy appearance. The drive cage beneath the PSU shroud offers space for two 3.5-inch or two 2.5-inch drives. Two additional 2.5-inch drives can be mounted on the motherboard tray next to the motherboard. Both the motherboard tray and power supply shroud provide numerous openings for cables, with 24 millimeters of space behind the tray for cable management. The optional ATX power supply of up to 200mm in length fits above a removable dust filter.
Graphics cards up to 345mm in length fit inside the Micro-ATX case; with a front-mounted radiator, the maximum length is reduced to 320mm. CPU coolers can be up to 190mm high. On the I/O panel at the top front there are two Type-A USB 3.0 ports, one USB 2.0 port, and audio connections.
