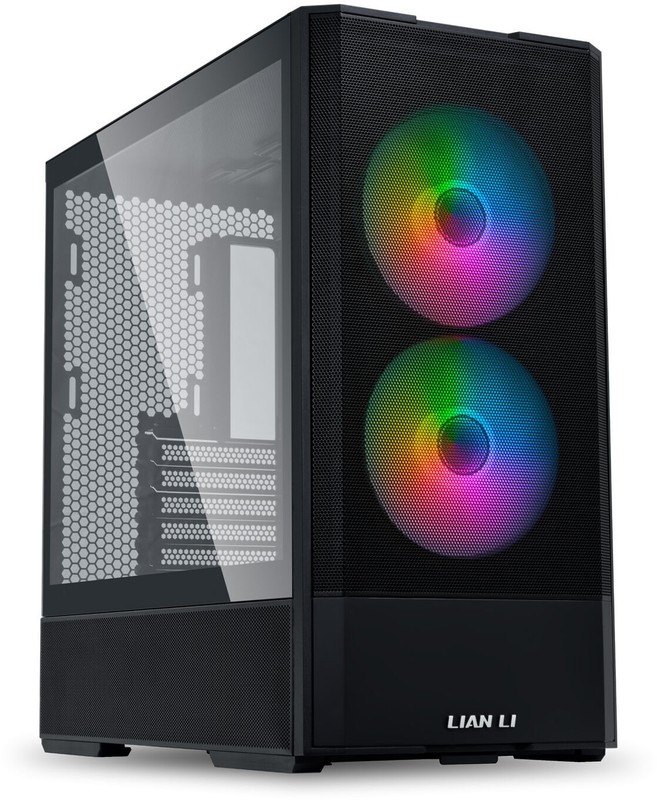

Lian Li LANCOOL 207 Midi-Tower ATX Case, Tempered Glass, Black
- CPU<: 180 mm
- GPU<: 37.5 cm
- Colour: Black
- Case form: ATX
Compact ATX case, excellent airflow, 45.5 liters volume, plenty of space for hardware, integrated cable management
- M-ATX sized case with ATX compatibility
- Includes 2 x 140mm ARGB fans at the front and 2 x 120mm PWM fans above the PSU shroud for maximum out-of-box cooling

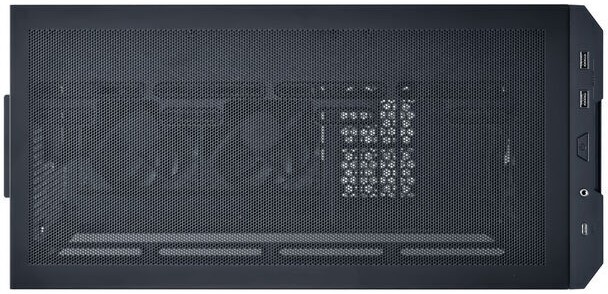

- Fully ventilated mesh panels on the front, top, and bottom, ensuring excellent airflow
- Front-mounted PSU with side-facing connector ports for easy cable management
- Motherboard tray position redesigned to improve top radiator clearance and locate bottom fans directly under the GPU for better cooling
- GPU anti-sag bracket with vertical and horizontal adjustment to support different GPUs
COMPACT POWERHOUSE
Though compact in size, the LANCOOL 207 offers remarkable compatibility, supporting ATX motherboard, a 360mm radiator, ATX PSU, and GPU up to 375mm, all within the sleek 45.5L chassis.
SPACE-SAVING INNOVATIVE LAYOUT

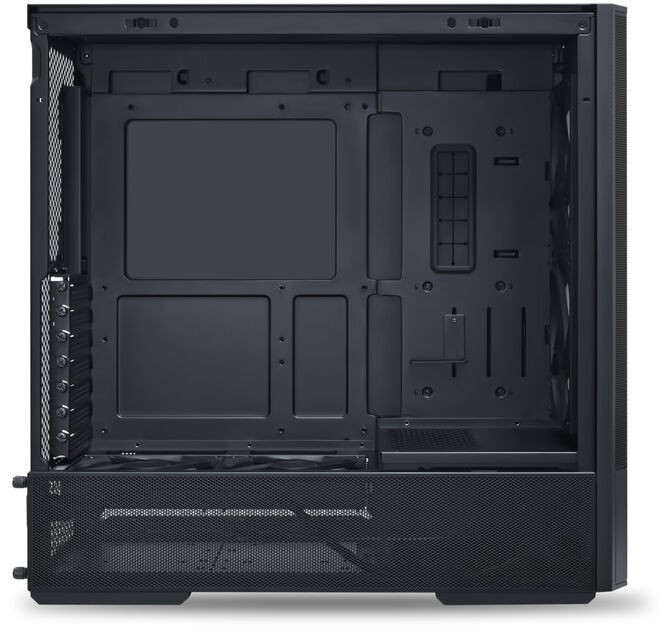

The LANCOOL 207’s unique offset motherboard tray provides a space-efficient solution while improving compatibility and airflow.
The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.
The LANCOOL 207 supports standard ATX (max width 244mm) / M-ATX/ ITX motherboards.
EASY ACCESS FRONT-MOUNTED PSU
The PSU is strategically placed at the front, with connector ports facing outward for convenient cable connection. Additionally, a PSU power adaptor extension cable is provided for rear power access.
The LANCOOL 207 offers PSU mounting with the fan oriented either upward or downward.
SUPERIOR COOLING PERFORMANCE

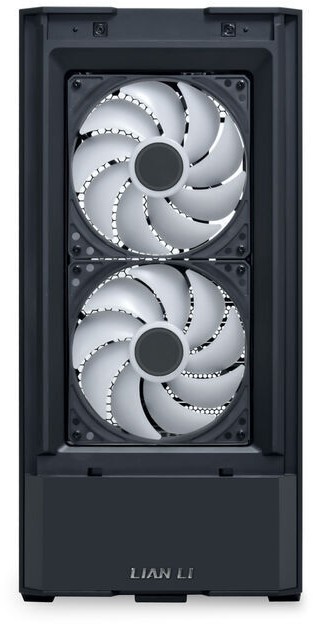

Besides being designed with comprehensive mesh panels on the top, front, and side bottom, the LANCOOL 207 comes pre-installed with four high-performance fans for superior out-of-box cooling.
Included Four High Performance Fans
Two thick ARGB performance fans provide excellent cooling and stunning light effects with the infinity mirror at the center.
Size: 140x140x30mm
Speed: 450 ~ 1900 RPM
Airflow: 109.3 CFM
Static Pressure: 3.3 mmH20
Noise: 34.86 dBA
Two 11-blade high airflow fans at the bottom deliver direct airflow to the GPU.
Size: 120x120x25mm
Speed: 500 ~ 1950 RPM
Airflow: 71.1 CFM
Static Pressure: 1.99 mmH20
Noise: 30.81 dBA
360mm Radiator Compatibility
The top of the case supports a 360mm push-pull radiator configuration thanks to the offset motherboard tray design.
Full Fan/ Radiator Support
LARGE ANTI-SAG GPU SUPPORT
The LANCOOL 207 accommodates a GPU up to 375mm long and includes an adjustable anti-sag bracket, ensuring the GPU remains perfectly aligned.
length: 285~315mm
length: 316~345mm
length: 346~375mm
SEAMLESS CONNECTIVITY
The LANCOOL 207’s top-mounted I/O panel offers easy access to essential ports.

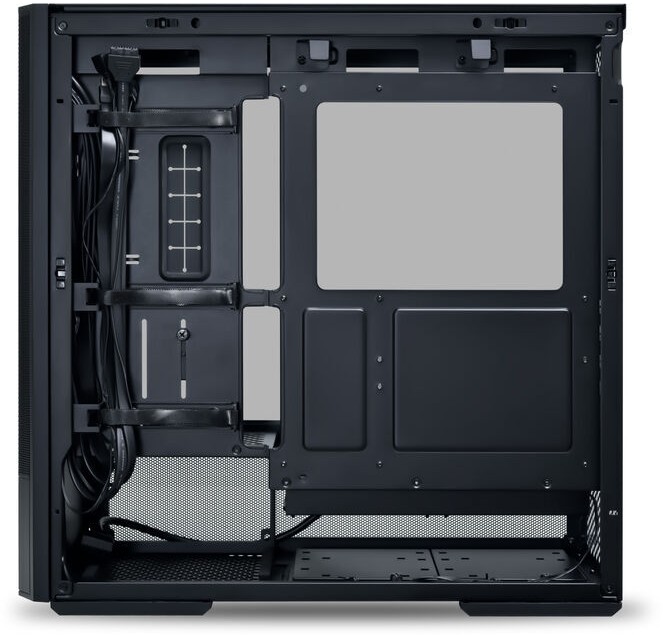

EFFICIENT CABLE MANAGEMENT
With the innovative layout, the well-organized cable management system is mostly at the front of the 2nd chamber.
1. Routing for EPS cable
2. 3 × Triple Velcro Straps for cable management
3. Grommet for 24-PIN motherboard cable
4. Space for 2 × Hard Drives
Front Dust Filter – LAN207-1X / LAN207-1W
For next level dust prevention, a front panel dust filter is available as an optional accessory. It fits seamlessly behind the front fan, providing an extra layer of protection.
| DIMENSION | (D) 455.6mm x (W) 219mm x (H) 456mm |
|---|---|
| MATERIAL | Steel 4.0mm Tempered Glass |
| MOTHERBOARD SUPPORT | Standard ATX (Width Max 244mm) / Micro-ATX / Mini-ITX |
| PSU SUPPORT | ATX (Under 160mm) |
| INCLUDED FAN | Front: 2 × 140mm ARGB fan (450~1900 RPM / DC 12V, 0.4A / LED 5V, 0.7A / 109.3 CMF / 3.3 mmH2O / 34.86 dB-A) Above PSU Shroud: 2 × 120mm PWM fan (500~1950 RPM / DC 12V, 0.28A / 71.1 CMF / 1.99 mmH2O / 30.81 dB-A) |
| FAN SUPPORT | Front: 140mm × 2 Top: 120mm × 3 or 140mm × 2 Above PSU Shroud: 120mm × 2 Rear: 120mm × 1 |
| RADIATOR SUPPORT | Top: 360/280/240mm |
| DRIVE SUPPORT | 2 × 3.5" HDD or 2.5" SSD |
| GPU LENGTH CLEARANCE | 375mm (Max.) |
| CPU HEIGHT CLEARANCE | 180mm (Max.) |
| EXPANSION SLOTS | 7 |
| I/O PORTS | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Power Button × 1 |
| DUST FILTER | 1 × Bottom |
| WARRANTY | 1 year |
Technical Details
- Karastatud klaas
- Steel
Connectivity
Drive Bays
Fan support
- 2
- 1
- 120
- 140 mm
- 2
