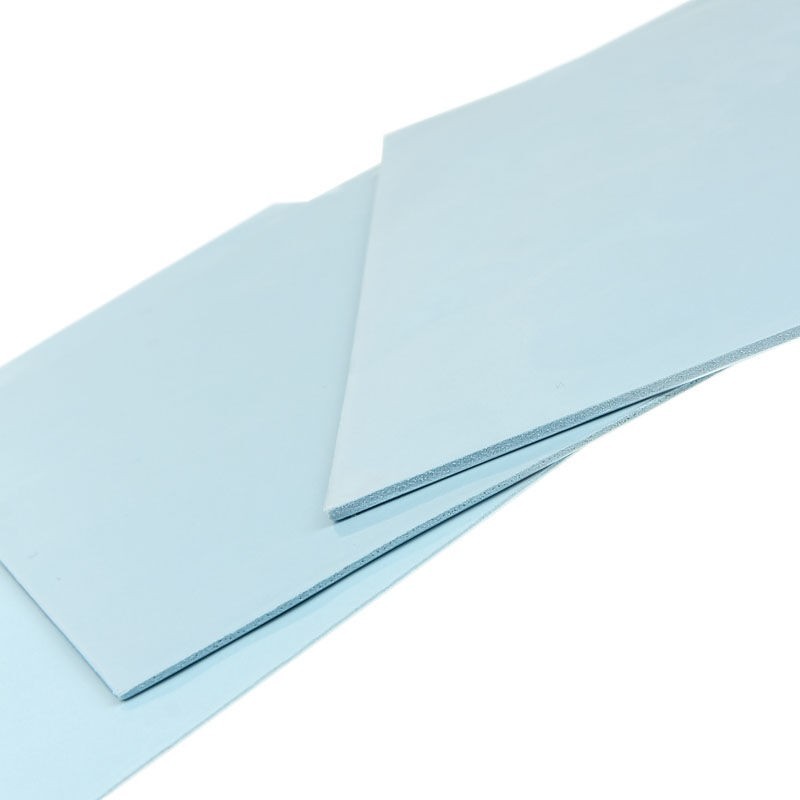

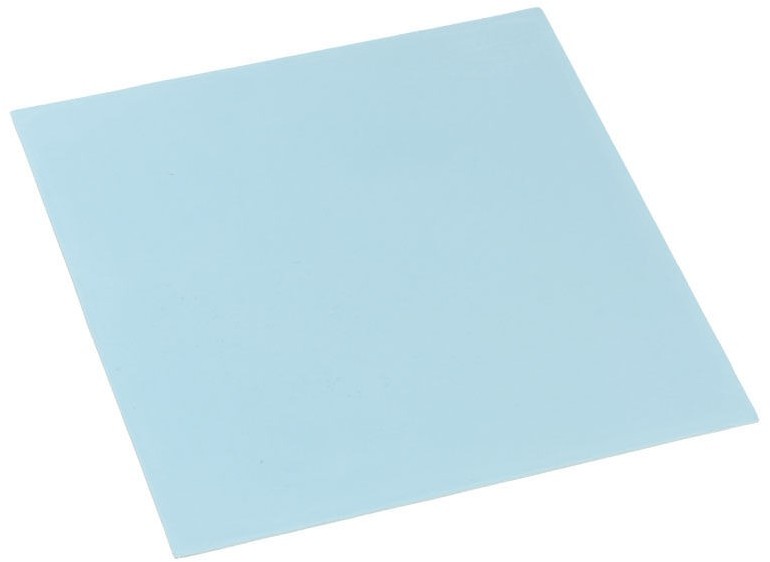

Arctic Thermal Pad 145x145x0.5mm

Arctic
Product code: ACTPD00004A
  • Dimensions: 145x145 mm
  • Thermal conductivity: 6.0 W/m·K
  • Height: 0.5 mm
Price
7.90 €

The Arctic thermal pads are ideal for efficiently exchanging heat between different components. Thanks to the high quality of workmanship and excellent thermal conductivity, the pads are used in many places on computers and electronic components.
The thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads.
In a test by PC Games Hardware (11/2018), the "excellent processability and reusability in every respect" was praised. In combination with the fair price and good performance, our thermal pad was recommended as a "price-performance tip".
Thanks to its low hardness and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.
The ARCTIC Thermal Pads are non-adhesive and can therefore be placed precisely. Installation is child's play and therefore perfect for beginners.
The pad contains no metal particles, is electrically insulating and not capacitive. Handling is therefore safe since contact with electrical parts does not lead to damage.

Technical specifications:
Dimensions 145 x 145 mm
Contents 1 piece
Thickness 0.5 mm
Thermal conductivity 6.0 W / mK
Hardness 25 shore 00
Relative density 3.2 g / cm³
colour blue
Operating temperature -40 ~ 200 ℃
Volume resistance 1 X 1012 Ω-cm
Interruption voltage 12 KV / mm
Draw resistance 2.5 Kgf / cm²
Elongation 45%
Dielectric constant
14.1816 ε at 60 Hz
13.0264 ε at 1K Hz
13.0264 ε at 1M Hz
Flammability V-0

Technical details

Dimensions145x145 mm
Thermal conductivity6.0 W/m·K
Height0.5 mm

Product availability

Tallinn
Magistral Center
1 pcs
Järveotsa shop
4 pcs
Tartu
Tartu Raatuse Center
1 pcs
Ordering to a store
Available to order:
158 pcs
Ordering to a store 5-10 working days.
