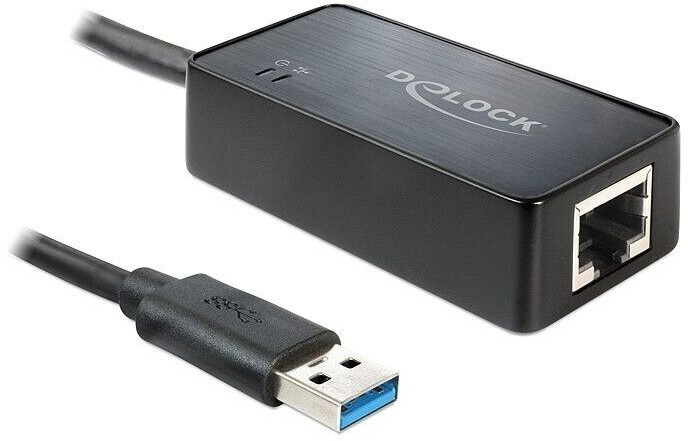

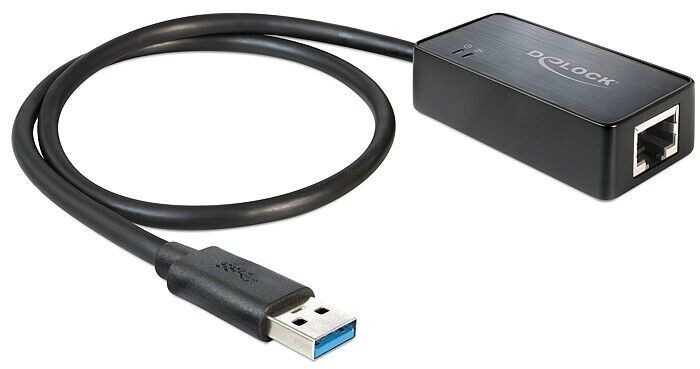

Adapter USB 3.0 > Gigabit LAN 10/100/1000 Mb/s
- Interface: USB
The adapter by Delock expands a PC or laptop by one network interface via the USB Type-A interface.
Specification
Connectors:
1 x USB 5 Gbps Type-A male
1 x Gigabit LAN RJ45 jack
Chipset: ASIX AX88179
Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
Supports Auto MDI-X (automatic detection of standard or crossover network cable)
Supports Wake On LAN (WOL)
Supports IEEE 802.3az (Energy Efficient Ethernet)
Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
Downwards compatible to USB 2.0
LED indicator for link and activity
USB bus powered
Cable length without connectors: ca. 50 cm
Dimensions (LxWxH): ca. 68 x 30 x 18 mm
System requirements
Linux Kernel 3.13 or above
Mac OS 10.7 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC or laptop with a free USB Type-A port
Package content
USB 3.0 Gigabit LAN adapter
Driver CD
User manual
