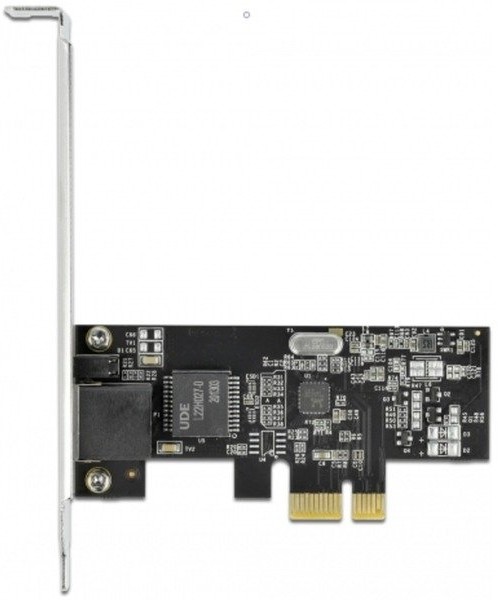

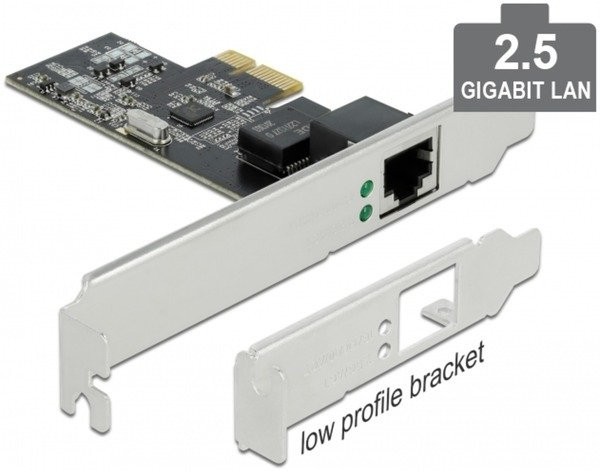

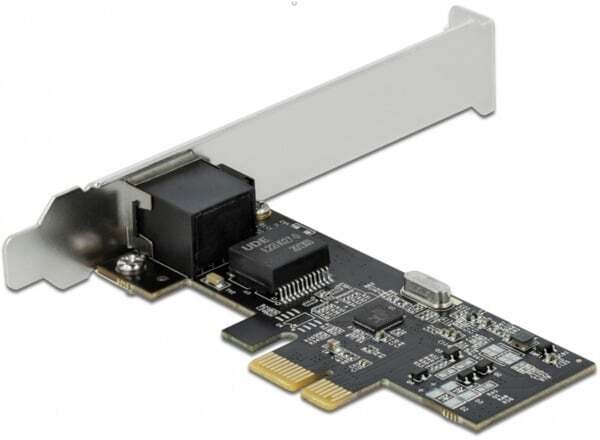

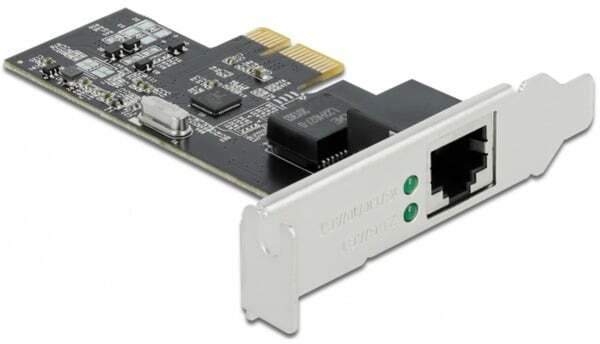

Delock PCI Express x1 Card 1 x RJ45 2.5 Gigabit LAN RTL8125
The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps.NBASE-T for higher speedModern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
Specification
• Connectors: external: 1 x 2.5 Gigabit LAN RJ45 jack internal: 1 x PCI Express x1, V2.1• Chipset: Realtek RTL8125B• Data transfer rate: Ethernet up to 10 Mbps (Half/Full Duplex) Fast Ethernet up to 100 Mbps (Half/Full Duplex) Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex) NBASE-T with up to 2.5 Gbps (Half/Full Duplex) PCI Express x1 up to 2.5 Gbps• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab• Supports Wake On LAN (WOL)• Supports IEEE 802.1P layer 2 priority encoding• Supports IEEE 802.3x full duplex flow control• Supports IEEE 802.1Q Virtual LAN (VLAN)• Supports 9k Jumbo Frames• LED indicator for link and activity
System requirements
• Windows 8.1/8.1-64/10/10-64• PC with one free PCI Express slot
Package content
• PCI Express card• Low profile bracket• Driver CD• User manual
