Axagon smart card reader + USB-C adapter CRE-SMP2A
- Connectivity: USB 2.0 Type C; USB 2.0

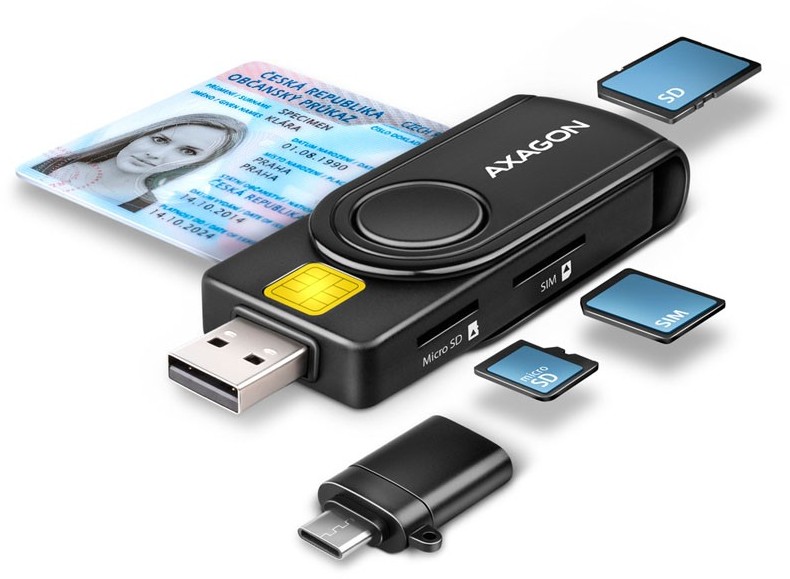

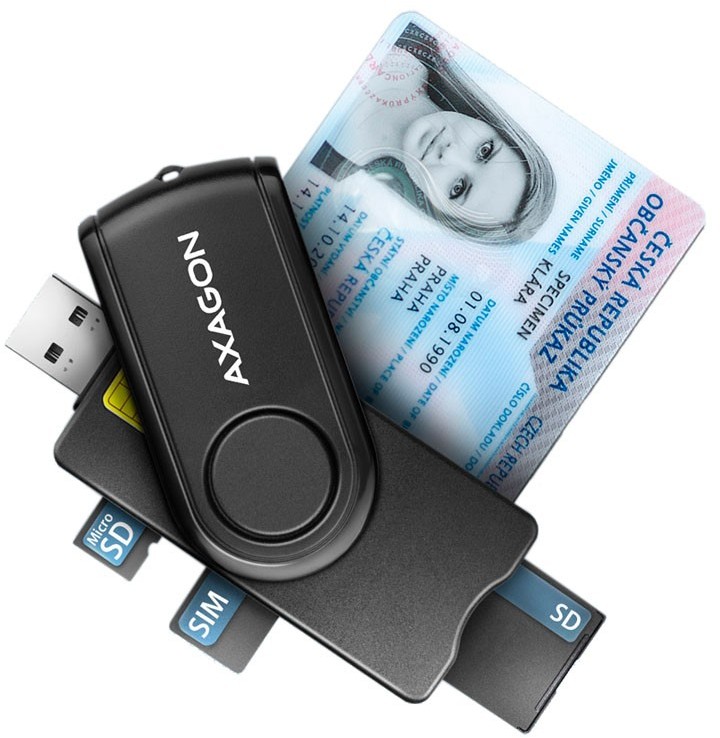

Compact ID card & memory card reader in one! With the Axagon card reader CRE-SMP2A, you can do the necessary operations with ID cards as well as SD / MMC / microSD memory cards and, in addition, with SIM cards. Thanks to the SIM card slot, which includes SIM card management software and SD and microSD card slots, you can also use the reader for backup and data transfer.

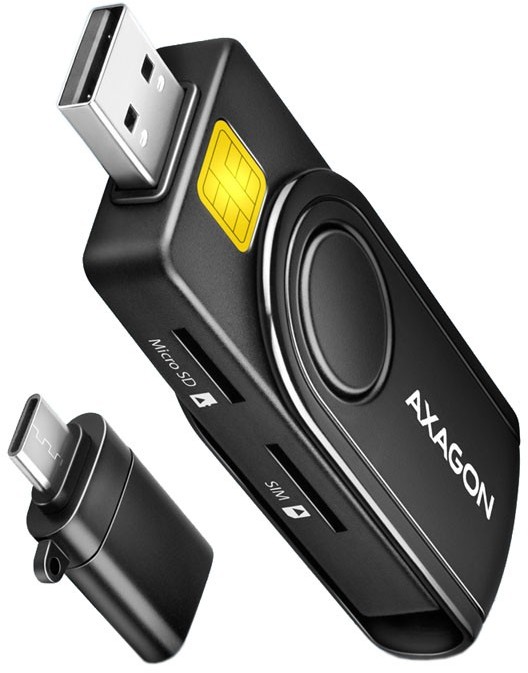

Compatibility with all common operating systems such as Windows, Linux, Mac OS and Android allows for widespread use on desktops and laptops as well as smartphones and tablets. The set also includes a USB-C adapter for connecting to devices with a USB-C socket.
Card reader:
- Four-slot reader with support for the following formats:
- Smart Card slot supports ATM / CAC / ID / IC / SIS contact cards,
- Micro SD slot supports microSD / microSDHC / microSDXC / TransFlash cards,
- SD slot supports SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter miniSD, miniSDHC, MMC Micro cards
- SIM slot supports standard size SIM cards (microSIM and nanoSIM with the appropriate adapter).
Smart card specification support:
- Supports ISO 7816 Class A, B and C contact Smart cards (5V, 3V and 1.8V).
- Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
- Supports protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
- PC/SC 2.0 PC Smart Card standard support.
- Microsoft Smart Card for Windows support.
- Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
- Microsoft WHQL USB Smart Card Reader compliant.
- FIPS 201 standard compliant.
Supports flash card specifications:
- SD 1.0/1.1 (SD - Secure Digital, up to 2GB) standard compliant.
- SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB) standard compliant.
- SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB) standard compliant.
- MMC a eMMC 3.x/4.0/4.1/4.2 standard compliant.
Other features:
- Microsoft USB-CCID driver compatible.
- Plug and Play support.
- Allows the use of SIM and microSD slot at the same time.
- SW SIMedit for editing and backing up contacts can be downloaded from the product support tab at www.axagon.eu.
- Smart card insertion detection.
- Standby support, automatic standby mode.
- Reader power via USB bus (bus-power).
- A LED indicates computer USB port connection (steady) and data transfer (flashing).

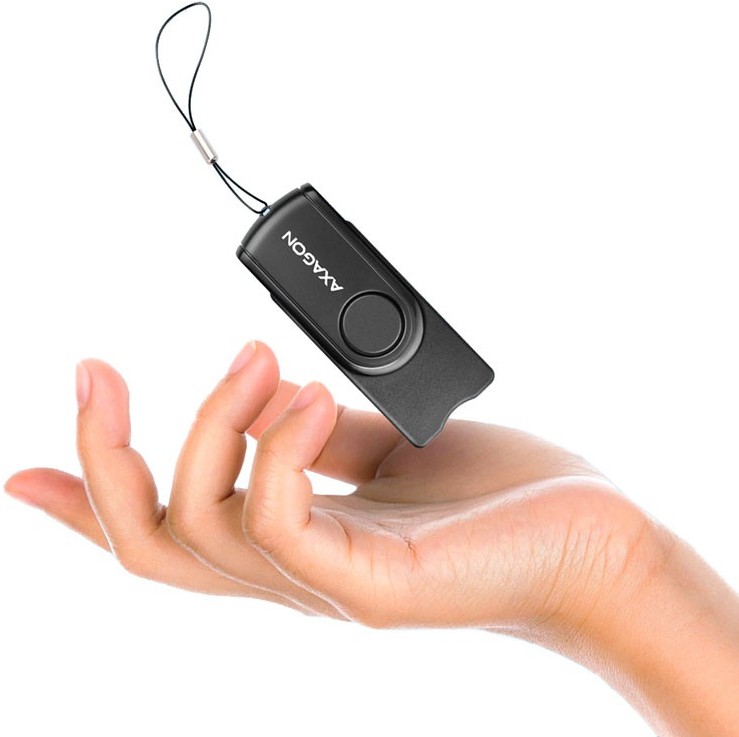

- Dimensions 80 × 30 × 15 mm
- Weight: 20 grams
Supported OS:
- MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.4.x and higher, Android 8 and above.
* Note: The reader only supports contact cards that have visible contacts on the surface. The card without contacts is therefore RFID and cannot be used in the reader.
