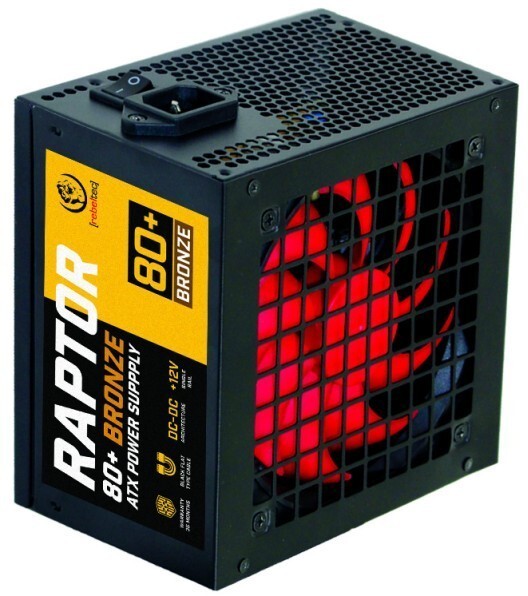

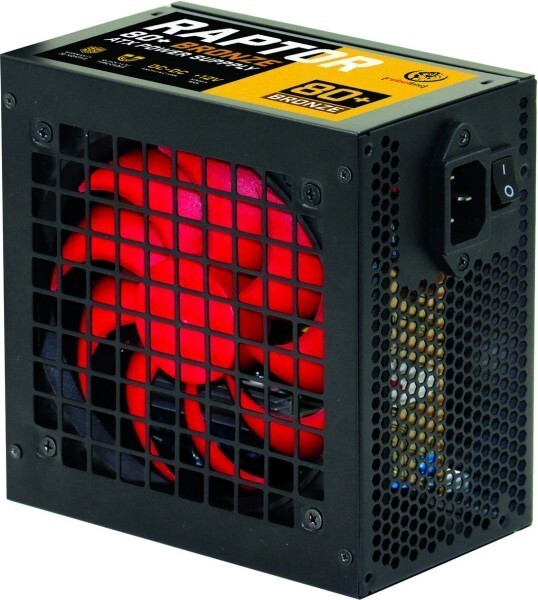

Rebeltec Power supply ATX RAPTOR 500W, BRONZE 80+,Single
- Wattage: 500 W
- Efficiency Rating: 80 PLUS Bronze
- Form: ATX
ATX power supply RAPTOR 500W, BRONZE 80+, Single Rail, DC-DC
RAPTOR 500W BRONZE 80+, DC-DC, Single Rail
Premium ATX power supply
Huge power reserve
Thanks to the advanced design and the highest quality components, Raptor power supplies have a huge power reserve.
In the RAPTOR 500W power supply, 500W is available on the +12V line alone (dedicated to powering the processor and graphics card, among other things), in addition to a total of 100W on the +3.3V and + 5V lines and 13.6W on the remaining lines. So the maximum power significantly (approx. 613W) exceeds the rated power of 500W.
Efficiency above 85%
High efficiency - over 85% at a load of 50% power, over 82% at a load of 20% and 100% power. This means less heat production and more efficient cooling, which translates into quiet operation. High efficiency reduces energy consumption, which in turn reduces equipment operating costs.
Active PFC
High-quality power supplies use active PFC, which is more effective than the passive PFC used in standard power supplies. Active PFC systems are specialized electronic circuits that
adapt to the load and to the conditions in the electrical network, and are therefore able to correct the phase shift efficiently regardless of the operating conditions of the power supply.
DC-DC Architecture
Power supplies with "DC / DC" technology convert +12V DC in the main transformer and then use it as a basis for +3.3V and +5V - unlike conventional models, which generate all currents simultaneously. Only two additional converters reduce the voltage from +12V to +5V and +3.3V. This increases the efficiency of the entire power supply and also creates a strong +12V line, which is directly used by the most important components such as the processor and graphics card. In addition, it increases the stabilization of individual voltages and reduces to a minimum the impact of current spikes of a given voltage on other voltages.
High-quality capacitors
A high-quality main capacitor 105`C / 270° uF (in the RAPTOR 500 model) improves the durability of the power supplies and ensures the stability and reliability of the RAPTOR series of power supplies. In the converters reducing the voltage from +12V to +5V and +3.3V, polymer capacitors are used, which are characterized by very low losses.
Single +12V RAIL
The design with a single +12V rail ensures stable output current at high load and, above all, more optimal power distribution for individual computer components. This is especially important for units with efficient processors and graphics cards.
Power cable included
All REBELTEC power supplies are sold with a mains power cable, so you don't have to buy it separately - you save time and money.
Non-modular design with FLAT BLACK flat cables
The RAPTOR series is supplied with soft black FLAT BLACK cables, which allow for easy cable installation and ensure optimal voltage in the system and also cause. that the cables can be arranged more easily and are less visible, which is important in transparent housings.
SPECIFICATION:
- The power supply meets the requirements of 80PLUS BRONZE standards
- Stable continuous power of 500W - maximum power on the 12V line is as much as 500W, combined on the 5V & 3.3V lines is 100W
- active PFC (>0.9)
- DC-DC architecture - ensures high voltage stabilization
- SINGLE RAIL 12V - optimal power distribution for key components
- efficiency >82% at 20% load
- efficiency >85% at 50% load
- efficiency >82% at 100% load
- ERP2013 compliance
- 12cm fan (ultra silent) thermally controlled operating speed
- black housing
- FLAT BLACK cables, thanks to which they are easy to arrange in the housing and remain invisible with transparent housings
- MTBF >100 000h
- w complete with 16A/250V cable 1.2m 3x0.75mm2
- Size: 150 x 140 x 86 mm
- Weight: 1305g
- EAN code: 5902539602258
Secondary side wiring:
- 3x Molex connector (on 3 cables 60-75cm long, flat black, shared with SATA)
- 5x SATA connector (on 3 cables 45-60cm long, flat black)
- 1x CPU 12V 4+4pin connector (55cm long cable, flat black)
- 2x PCI-E 6+2pin connector (50+15cm long cable, flat black)
- 1x ATX 20+4pin pin connector (50cm long cable, flat black)
Protections:
- OVP - protection overvoltage
- SCP - short circuit protection
- OPP - overload protection
- SIP - surge current protection
- UVP - undervoltage protection
- OTP - overheating protection
