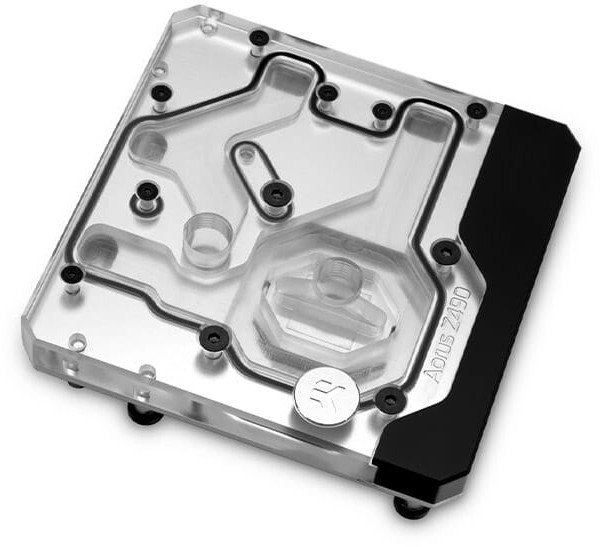

The EK-Quantum Momentum Aorus Z490 Master D-RGB is the new Quantum Line monoblock designed specifically for the Gigabyte Aorus Z490 master motherboard. The top side of the monoblock is made of acrylic glass and the integrated addressable D-RGB lighting sets the block perfectly in scene.

Based on the EK Momentum series, the CPU cooler has been further optimised in terms of performance and optimum coolant flow. The cooling plate is made of nickel-plated copper and impresses with its dense micro-rib structure. Thanks to the pre-installed nickel-plated brass screw-in spacers, installation is made easy.

The supplied thermal pad is used on voltage regulator modules to improve stability and performance and extend the life of the motherboard.

The block is equipped with a 3-pin 5V addressable D-RGB LED strip compatible with the 3-pin 5V D_LED (addressable LED strip) headers of the Aorus Z490 Master. This product is also compatible with D-RGB controllers that support the pin assignment: +5V, D, Blocked, Ground. The arrow marking on the 3-pin LED connector must be aligned with the +5V marking on the D_LED (addressable LED strips).

Technical Data

• D-RGB-Anschluss 3-polige 5V-Digital-LED-Stiftleiste (Pinbelegung: +5V, D, blockiert, Masse)

Enclosed:

• EK-Quantum Momentum Aorus Z490 Master D-RGB Monoblock
• Mounting mechanism
• Thermal grease EK-TIM Ectotherm
• Thermal pads
