Watercool HEATKILLER IV PRO (Intel LGA 1X00) BLACK COPPER PVD

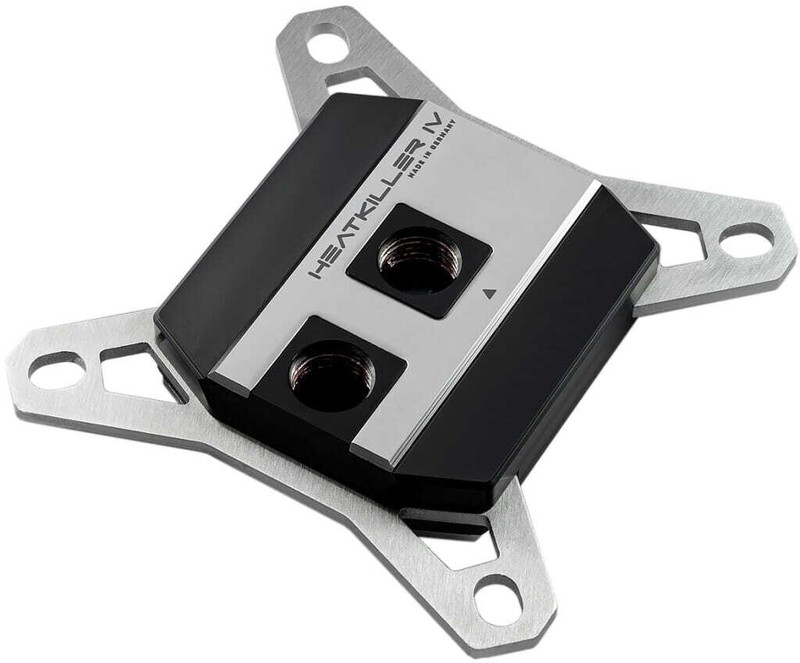

HEATKILLER® IV PRO (Intel) – Black Copper PVD
With the HEATKILLER® IV PRO in the exclusive Black Copper PVD edition, we are setting new standards in the high-end segment. This cooler is not only a technological masterpiece but also a visual highlight for any system thanks to its diamond-like carbon (DLC) coating. Applied using a modern plasma process, the extremely hard surface combines a deep black finish with maximum wear protection.
Maximum Performance & Optimized Flow
The cooling structure of the HEATKILLER® IV has been radically evolved. Significantly finer fins massively increase the cooling surface to make heat dissipation even more efficient. The result: Up to 3°C better temperatures compared to its predecessor. By eliminating a separate jet plate and integrating it directly into the top, we have also increased flow and optimized reliability.
Easy-Mount: Tool-less Assembly in Perfection
Time is precious – that's why we developed the Easy-Mount system. After the initial installation, the cooler can be mounted or dismounted at any time completely without tools. Thanks to a fixed stop on the mounting bracket, the optimum contact pressure is always guaranteed – assembly errors are virtually impossible.
Design Meets Functionality
- Maximum Compatibility: A generous 25 mm port spacing allows for the use of massive fittings (up to 19 mm outer diameter).
- Premium Materials: Nickel-plated copper meets polished stainless steel and the DLC-coated top.
Important Note for Socket LGA 1700: Due to the well-known "bending" issue, we strongly recommend using our specialized backplates (Art. 10014 or 10016).
Genuine Made in Germany
Production takes place with the highest precision in our state-of-the-art CNC machine park in Waren (Müritz). Here, cutting-edge technology meets genuine craftsmanship: each unit is checked by two people for final inspection. Quality as you expect it from Watercool.
Technical Specifications:
- Top Material: Copper (PVD black coated)
- Cold Plate Material: Copper (nickel-plated)
- Dimensions (L x W x H): 66 x 59 x 17 mm
- Threads: 2x G ¼ inch (25 mm spacing)
- Intel Socket Compatibility: 1150, 1200, 1700, 1851
