EK Water Blocks EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox
Product code: 100015050
Price
141.70 €
Monthly payment
7.00 € / starting from monthly

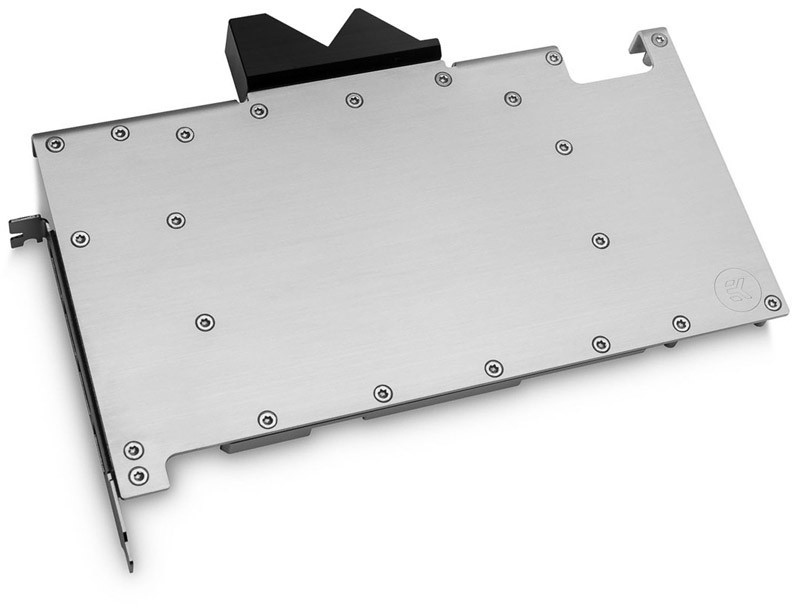

EK Water Blocks EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox – Full-cover water block for graphics cards
EK Water Blocks EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop.

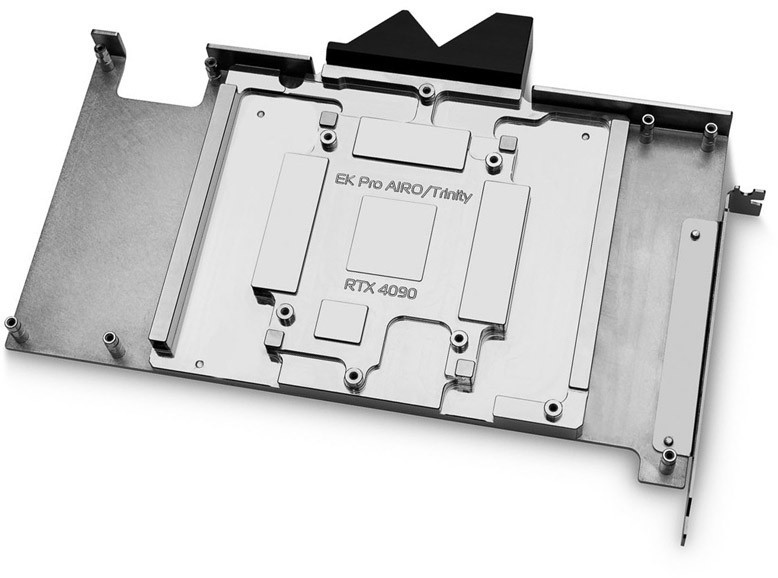

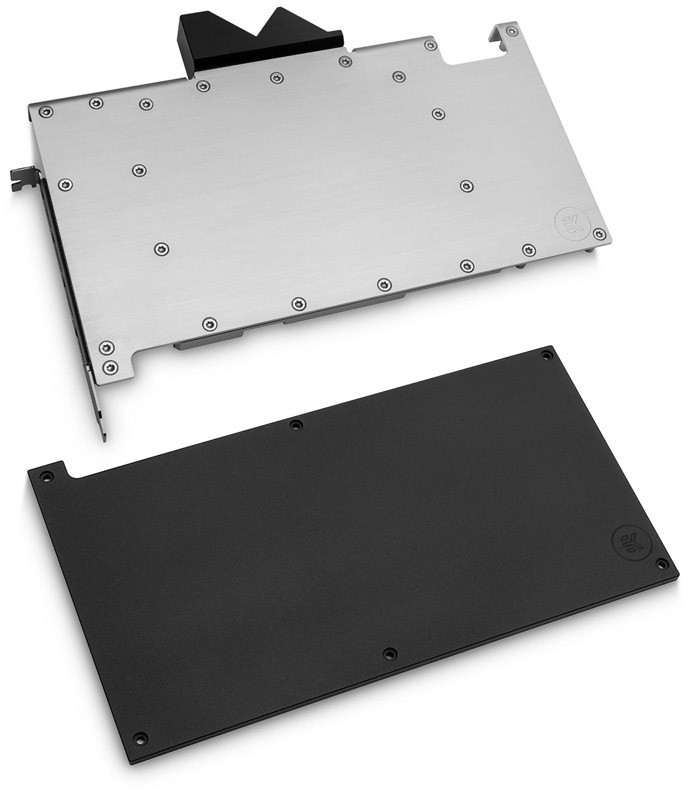

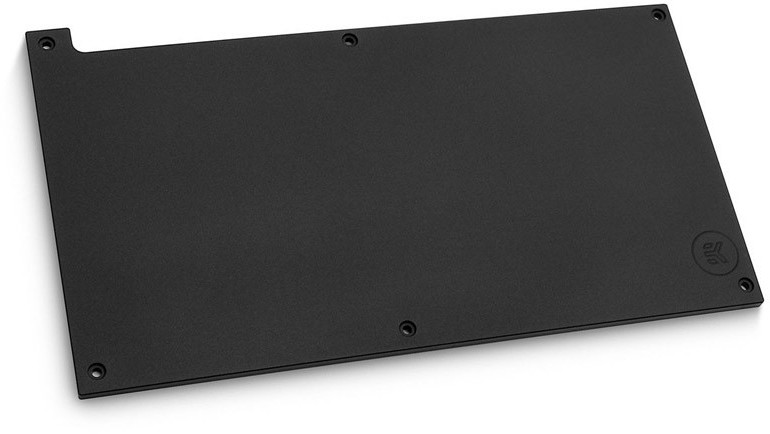

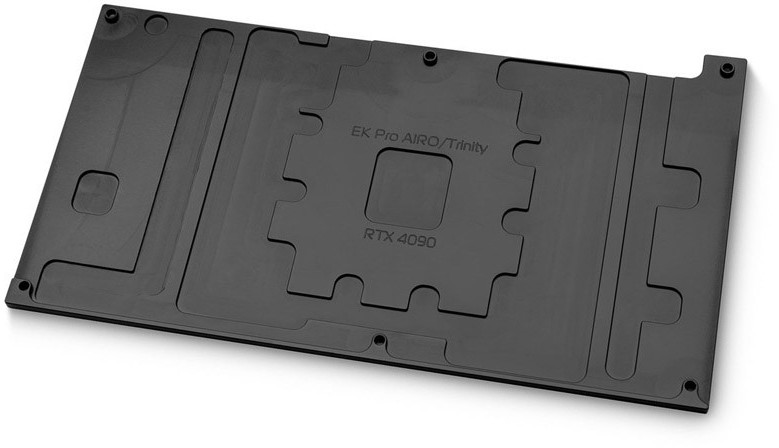

The cold plate is CNC-machined from nickel-plated electrolytic copper. The dimensions are 246 x 180 x 24.3 mm. A matching backplate for the rear of the graphics card is already included.
Key Features
- Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well.
- GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed.
- CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer.
- Ni + Inox version: Matches fittings and components with the same finish.
Technical Specifications
| Type | EK Water Blocks EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109903971 |
| Series | EK-Pro |
| Finish | Ni + Inox |
| Thread | G1/4" |
| Dimensions | 246 x 180 x 24.3 mm |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox workstation and server-grade
- Mounting mechanism with screw-in brass standoffs
- All necessary mounting screws, nuts and washers
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- The factory backplate of the graphics card cannot be reused.
With EK Water Blocks EK-Pro GPU WB AMP/Trinity RTX 4090 - Ni + Inox your graphics card runs quietly and at stable performance in the Ni + Inox version.
For more detailed information, please contact customer service via email or the chat window.
