EK Water Blocks EK-Pro GPU WB WX9100 Nickel + Inox Full-Block Water Cooler
Product code: 3831109819982
Price
36.95 €

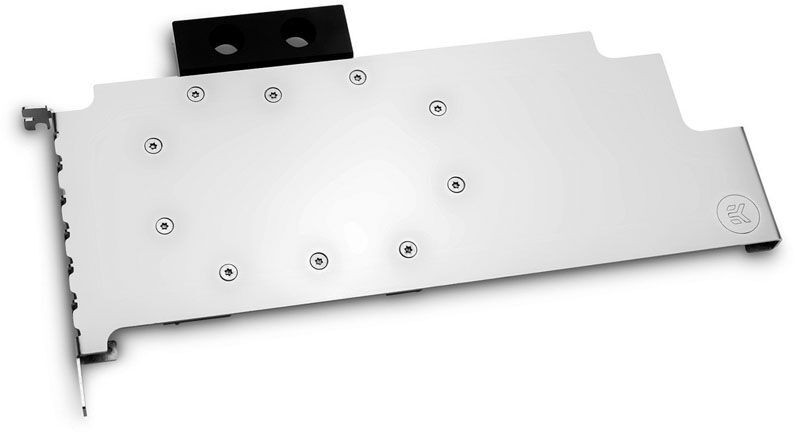

EK Water Blocks EK-Pro GPU WB WX9100 - Ni + Inox – Full-cover water block for graphics cards
EK Water Blocks EK-Pro GPU WB WX9100 - Ni + Inox is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop.

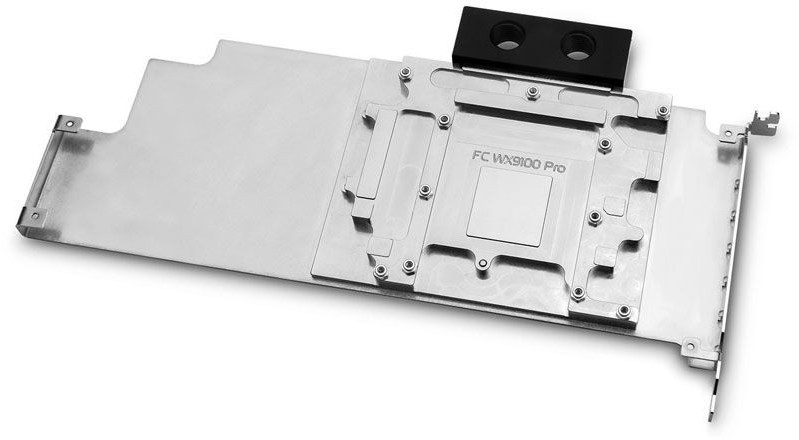

The cold plate is CNC-machined from nickel-plated electrolytic copper. The dimensions are 282.8 x 154.5 x 18.1 mm.
Key Features
- Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well.
- GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed.
- Thermal paste included: EK-TIM Ectotherm is included, so nothing extra has to be sourced for the installation.
- CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer.
- Ni + Inox version: Matches fittings and components with the same finish.
Technical Specifications
| Type | EK Water Blocks EK-Pro GPU WB WX9100 - Ni + Inox |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109819982 |
| Series | EK-Pro |
| Finish | Ni + Inox |
| Thread | G1/4" |
| Dimensions | 282.8 x 154.5 x 18.1 mm |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Pro GPU WB WX9100 workstation-grade
- Mounting mechanism with screw-in brass standoffs
- All necessary mounting screws, nuts and washers
- Thermal pads
- 2x nickel-plated brass plug G1/4"
- Thermal grease EK-TIM Ectotherm (1 g)
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- The factory backplate of the graphics card cannot be reused.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
With EK Water Blocks EK-Pro GPU WB WX9100 - Ni + Inox your graphics card runs quietly and at stable performance in the Ni + Inox version.
For more detailed information, please contact customer service via email or the chat window.
