EK Water Blocks EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB - Acrylic
EK Water Blocks EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB - Acrylic – Monoblock or monoblock accessory for ROG motherboards
EK Water Blocks EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB - Acrylic belongs to the EK-Quantum Momentum² range, tailored specifically to certain ASUS ROG motherboards. A monoblock cools the processor and the motherboard voltage regulation in one part; the matching accessories complete that solution.

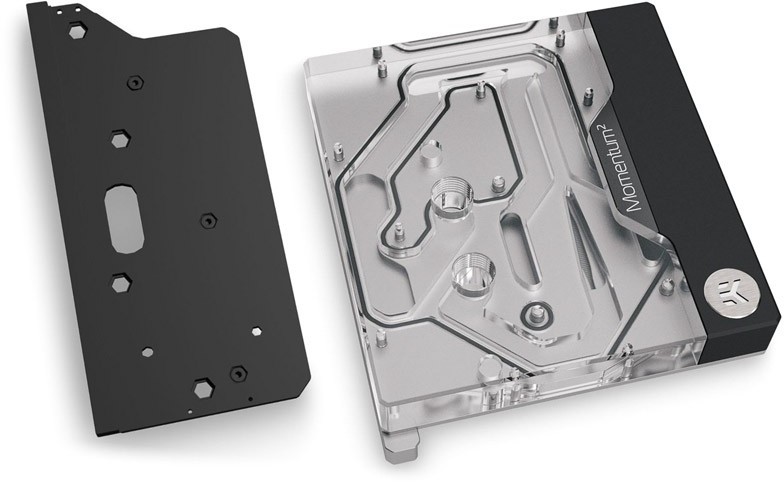

The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are - 133 x 120.5 x 32 mm. Lighting is provided by 8 addressable D-RGB LEDs, connected via a 500 mm cable. A matching backplate for the rear of the graphics card is already included.
Key Features
- EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so the tubing can be routed straight and aligned.
- Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with common motherboard sync technologies.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- Transparent acrylic top: The clear top reveals the coolant inside and showcases the lighting.
- Motherboard-specific fit: Matched exactly to the respective ROG motherboard.
- Cooling of CPU and VRM: The monoblock brings the processor and voltage regulation into one shared loop.
- Acrylic version: Visually matched to the motherboard and the remaining components.
Technical Specifications
| Type | EK Water Blocks EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB - Acrylic |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109903278 |
| Series | EK-Quantum Momentum² |
| Finish | Acrylic |
| Dimensions | - 133 x 120.5 x 32 mm |
| Cable Length | 500 mm |
| D-RGB LEDs | 8 |
| Thread | G1/4" |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Quantum Momentum² ROG Maximus Z790 Hero D-RGB Monoblock
- Mounting mechanism
- Thermal pads
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
EK Water Blocks EK-Quantum Momentum2 ROG Maximus Z790 Hero D-RGB - Acrylic fits precisely into a cooling concept tailored to the ROG motherboard.
