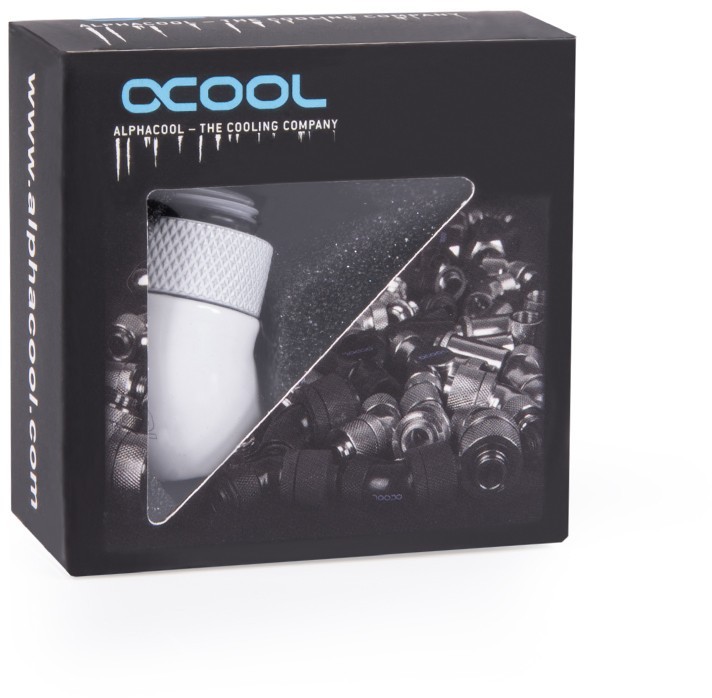

Alphacool Eiszapfen angle adapter 45° rotatable G1/4 AG to G1/4 IG - White
Alphacool's Eiszapfen is the high-end version of the already proven connectors and meets all the requirements placed on a connector with its high-flow, shape, processing and colour.
Compatibility

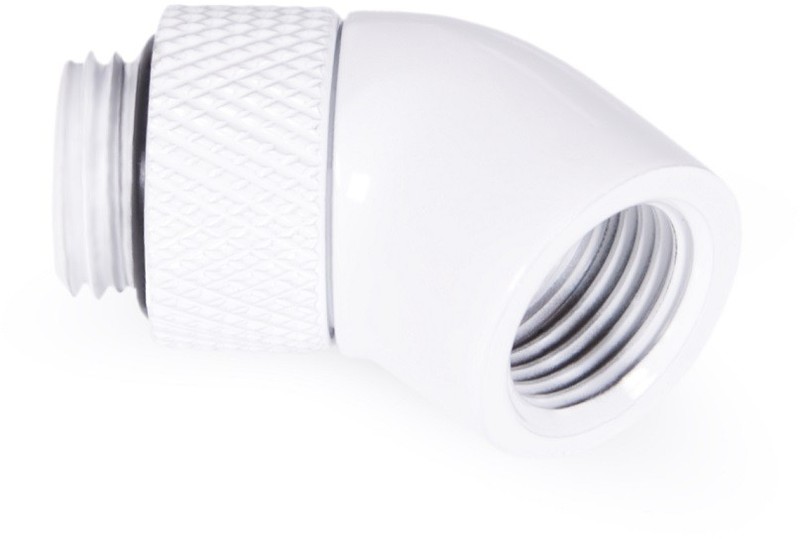

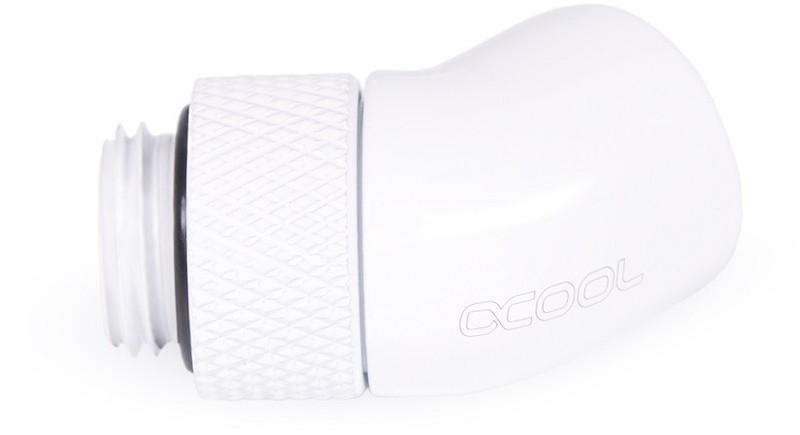

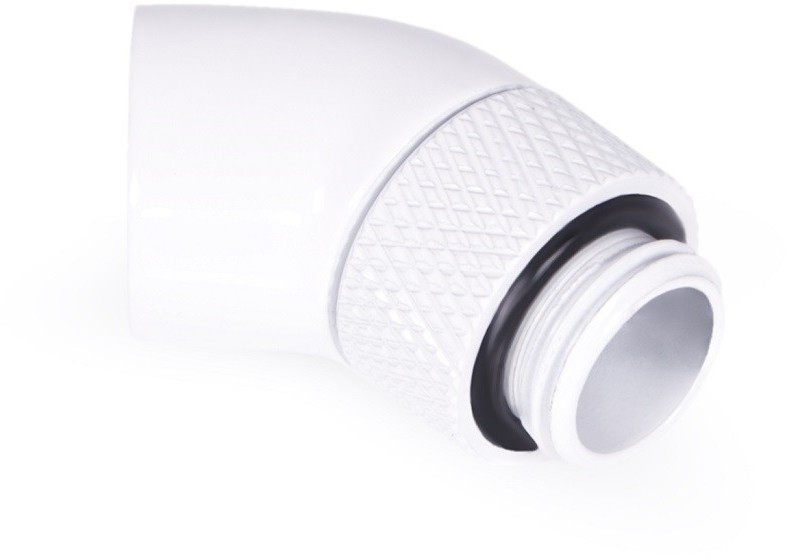

This adapter has a rotatable ¼” external screw thread on one side and a ¼” internal thread on the other side. This 45° angle connector is mostly useful in cases where ¼” threads are too close to one another and larger hose connections do not fit next to each other.
Design
With brilliant chrome, deep matt black and decent matt white, three colour variants are available that fit perfectly into any system. Thanks to special processes, the coatings are firmly bonded to the substrate. This ensures a high longevity of the colours and prevents the coating from flaking off. The connector now also has the Alphacool logo, which makes it unique in addition to its special shape!
| Technical details | |
| Material | Brass |
| Colour | White |
| Length | 35 mm |
| Diameter | 18 mm |
| Thread | G1/4“ |
| Thread length | 5 mm |
| Weight | 34 g |
Download Datenblatt PDF: Alphacool Eiszapfen angled adaptor 45° rotatable G1/4 outer thread to G1/4 inner thread - White
Fitting Map: You can find an interactive map of all Alphacool fittings here.
