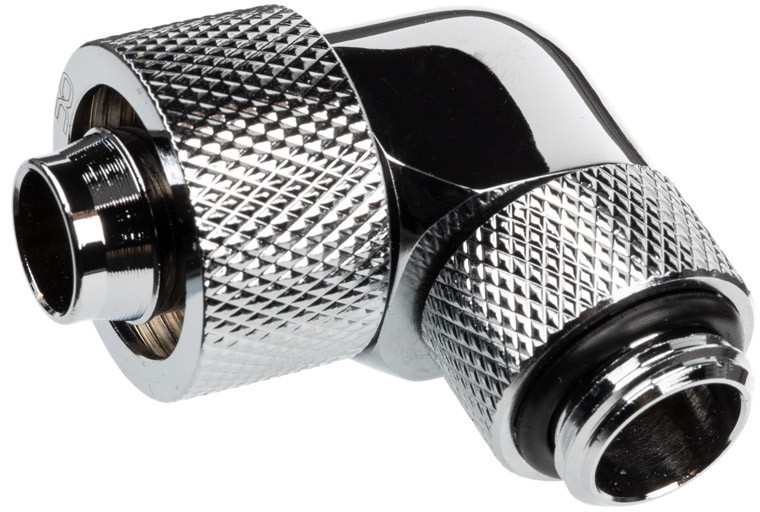

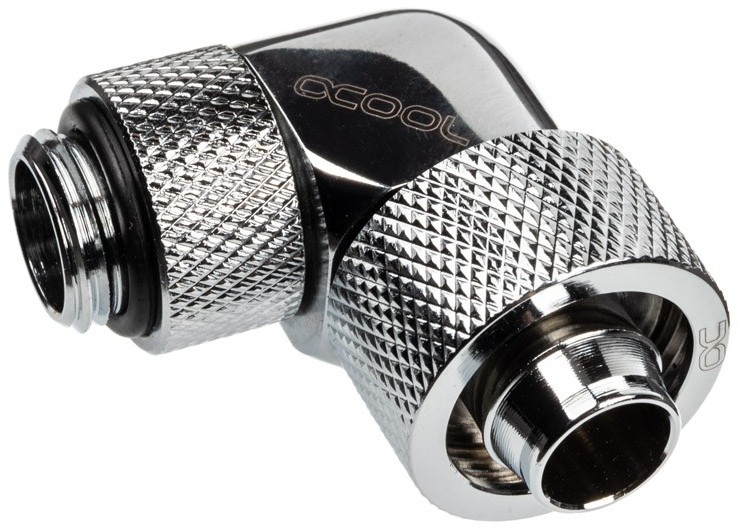

Alphacool Eiszapfen 16/10mm screw-on nozzle 90° rotatable G1/4 - Chrome
Alphacool’s Eiszapfen Connector Series is the high-end execution of these tried-and-true connectors!
Every requirement you could have of a connector is met with this series: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is. Components are available in brilliant chrome or a deep, matte black, which will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!
The connecting nut’s slanted corners allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. This allows for greater safety in transport.
Anyone looking for colourful options has them: the O-rings in the shipment come in three colours. With the available UV-light option, these will even light up in the corresponding colour.
Model: 90° Socket 16/10mm
This connector has a ¼” thread on one side and is thereby compatible with 95% of components. The other side fits a 16/10mm hose. The middle of this connector is turned at a 90° angle in order to prevent complicated hose connections. The threaded side is rotatable for maximum flexibility.
Technical Specifications:
- Material: Brass
- Colour: Chrome
Dimensions:
- Length: 35.5mm
- Width: 22mm
- Height: 34.5mm
Scope of Delivery:
- 1x Alphacool Eiszapfen 16/10mm compression fitting 90° rotatable G1/4 - Chrome
