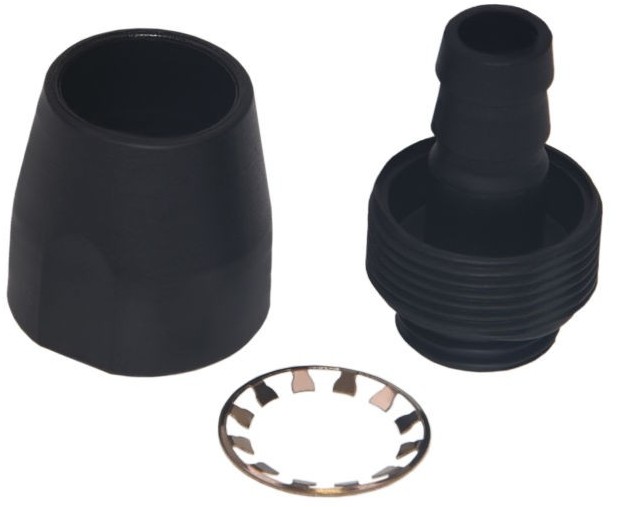

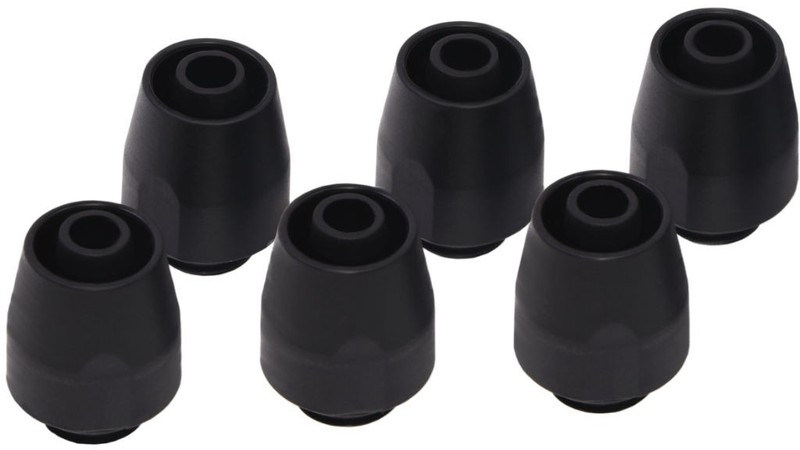

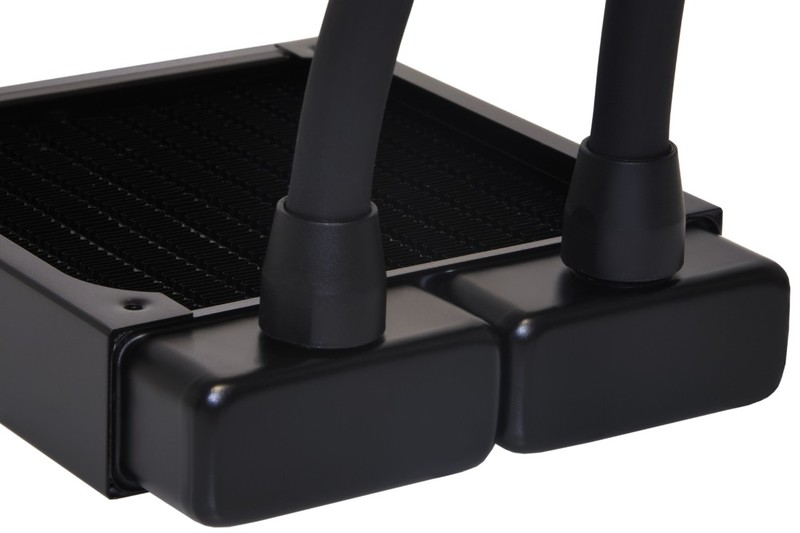

The new fittings from Alphacool’s Enterprise Solutions series were specially developed for the Alphacool TPV tubing. Thanks to a double locking system, they have a very high tensile strength. This consists of a metal ring and clings to the hose with hooks. However, they not only stand for safety, but also for longevity. As the fittings are made of nylon, they are extremely resistant and can easily be used with copper or aluminium parts in the water loops, because nylon does not react with other materials.

Technical Data:

• Material: Nylon
• Colour: Black
• Length: 28 mm
• Diameter: 20.5 mm
• Thread: G1/4"
• Thread length: 5.5 mm
• Hose size: 12,7 / 7,6 mm
