EK Water Blocks EK-Torque HTC-16 straight fitting G1/4 Zoll OT to 16mm AD Hardtube - black
Ek water blocks
Product code: 3831109815977
Price
11.95 €

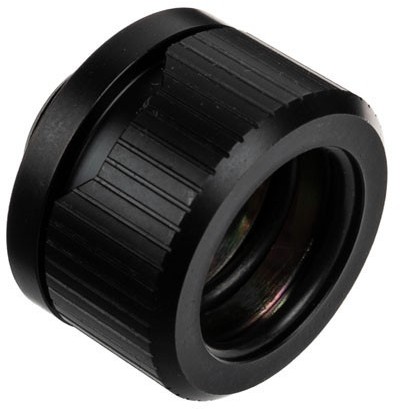

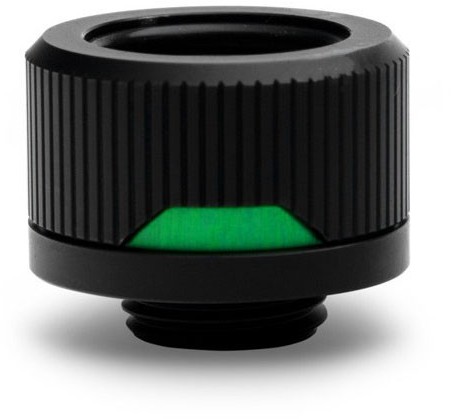

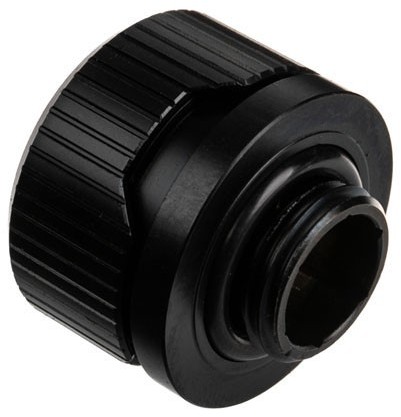

The connection for 16mm (AD) Hard Tubes from EK Water Blocks, is a compression fitting made of nickel-plated brass. It is kept in black and comes from the Torque series, which convinces with a simple and timeless design. Originally intended for the EKWB Quantum series, this fitting is also compatible with other EK products.
In this fitting, the union nut serves as a compression ring, which presses the sealing ring onto the hard tube. It thus offers a higher level of safety and sealing than, for example, the fittings of the EK-HD series.
As a small feature, the union nut has a recess under which coloured rings are placed, which provide a bit of individuality and are available separately.
Technical Data:
- Material: Nickel-Plated Brass
- Colour: Black
- Supported Tube: 16 mm OD
- Thread: G1/4", male
- Thread Length: 4,5 mm
- Outer Diameter (Fitting): 24 mm
- Installed Height: 15 mm
- Compatible Solid Tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Product can only be ordered
Product is not currently available in stores.
Available to order:
Ordering to a store 6-18 working days.62 pcs
