Alphacool Core RX 9070 XT Taichi GPU Water Cooler with Backplate
Alphacool Core RX 9070 XT Taichi with Backplate
Alphacool presents the new graphics card water coolers for the latest AMD Radeon RX generation. They are part of the Core product series and combine the highest quality with exceptional performance. Through optimized technical design, these GPU coolers provide outstanding cooling performance.

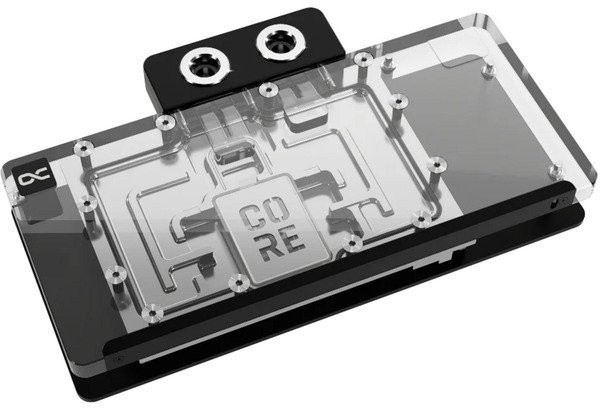

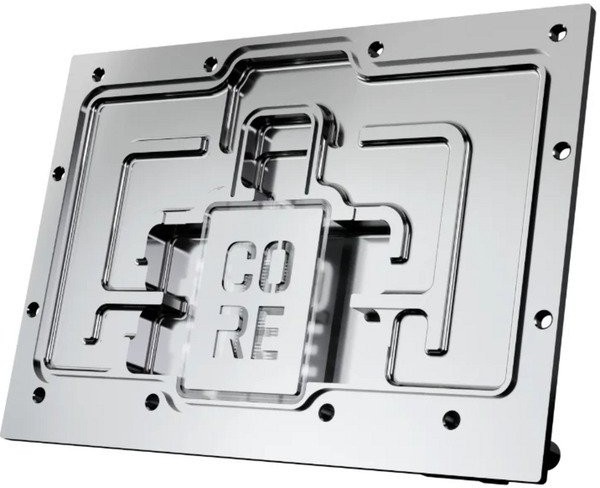

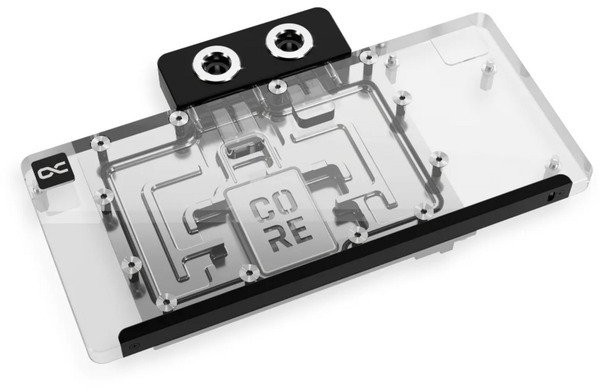

At the heart of the cooler is a copper cooling plate milled from a single piece, complemented by a precisely manufactured brass connection terminal with a nylon cover. Chrome plating makes the copper cooler more durable and provides a smoother and more radiant surface compared to standard nickel plating.

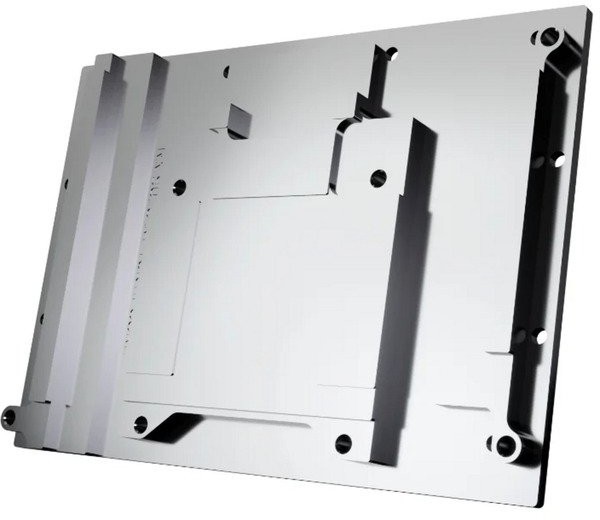

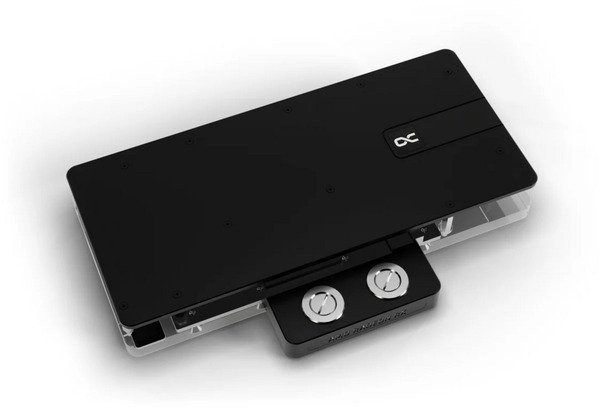

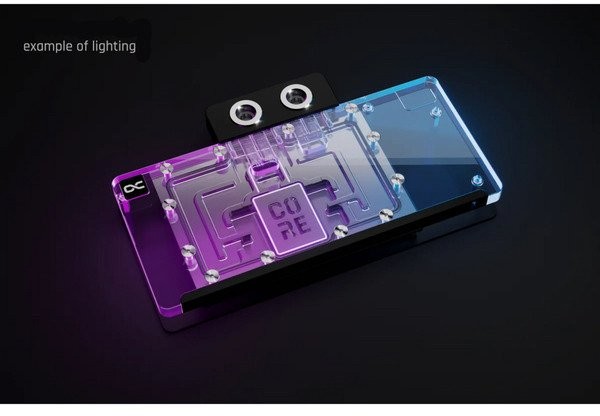

The visual design of the GPU water cooler has been changed only slightly. A particular highlight is the newly added Core emblem above the jet plate, which emphasizes its affiliation to the Core series and visually enhances the design. The series continues to rely on high-quality brass fittings that guarantee optimal quality and safety. The specially adapted aluminum backplate covers the entire backside of the copper cooler, ensuring a clear and unified look. The acrylic, combined with the aRGB lighting, allows for uniform and impressive illumination of the entire cooler.
Technically, the GPU water cooler has been completely reworked. To optimize cooling performance, the distances between the cooler and the components of the PCB have been newly defined and tested. The water flow was simulated with state-of-the-art software and verified through practical tests. Through these extensive tests, the base of the cooler and the nozzle were improved to guarantee the best possible cooling performance for the new AMD Radeon RX generation.
Compatibility:
- ASRock AMD Radeon™ RX 9070 XT Taichi 16GB OC
| Technical Data Cooler | |
| Dimensions complete (L x W x H) | 217.10 x 127.37 x 33.05mm |
| Cooler base material | chrome-plated copper |
| Cooler top material | acrylic |
| Terminal material | nylon |
| Connection thread material | brass |
| Maximum operating temperature | 60°C |
| Pressure tested | 0.8 bar |
| Connections | 4 x G1/4" |
| Cooler base thickness | 3.25mm |
| Cooling fin thickness | 0.4mm |
| Cooling fin spacing | 0.4mm |
| Lighting | digital aRGB LEDs |
| Digital aRGB LED power connection | 3-Pin JST |
| Digital aRGB LED voltage | 5V |
| Number of digital aRGB LEDs | 10 |
| Color | transparent |
| Technical Data Backplate | |
| Dimensions (L x W x H) | 217.10 x 98.80 x 6.00mm |
| Backplate thickness without spacer | 3mm |
| Material | aluminum |
Warranty: 3 years
