EK Water Blocks EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition
Product code: 3831109833391
Price
35.45 €
EK Water Blocks EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition – Full-cover water block for graphics cards

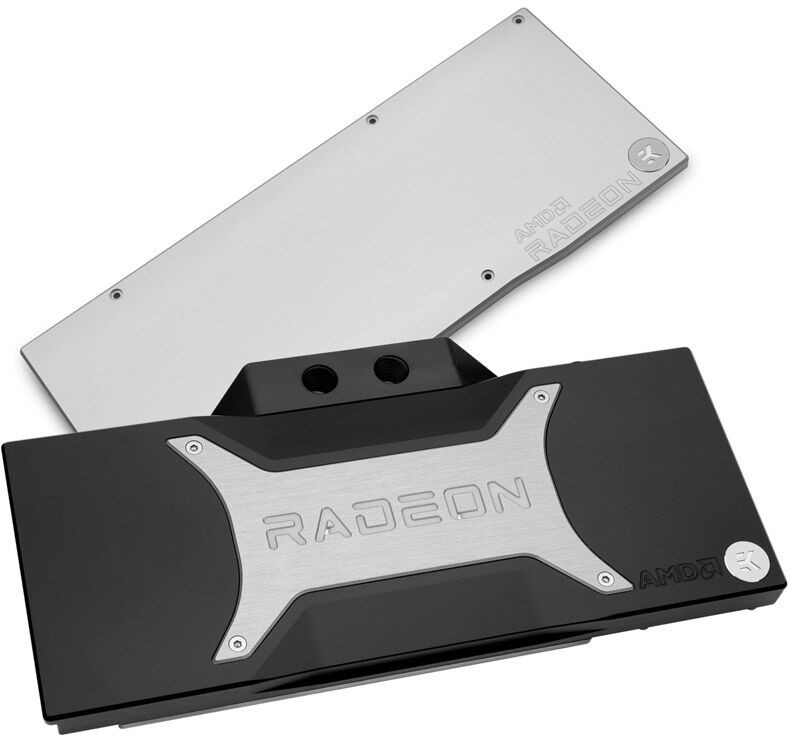

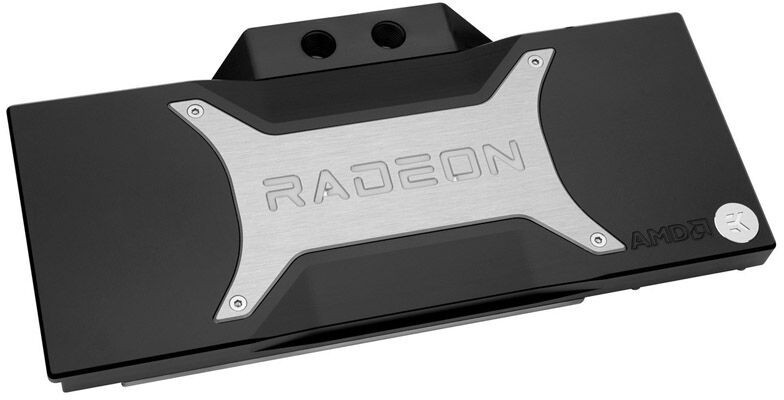

EK Water Blocks EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop.

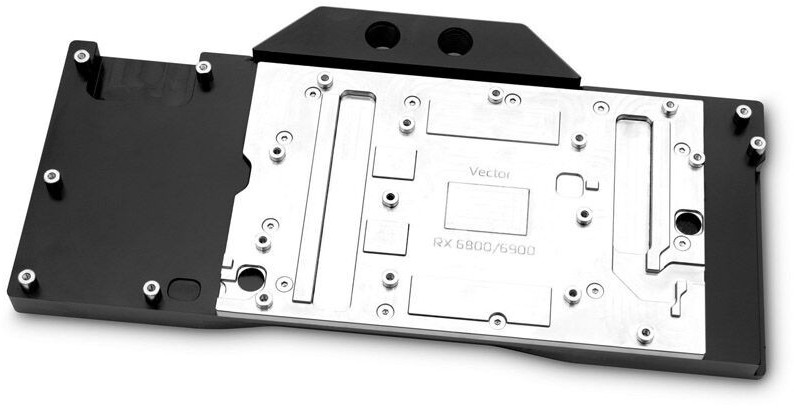

The cold plate is CNC-machined from nickel-plated electrolytic copper. The dimensions are 266x133x27 mm. A matching backplate for the rear of the graphics card is already included.
Key Features
- Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well.
- GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core.
- Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with common motherboard sync technologies.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed.
- CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer.
- Nickel Acetal version: Matches fittings and components with the same finish.
Technical Specifications
| Type | EK Water Blocks EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109833391 |
| Series | EK-Quantum Vector |
| Finish | Nickel Acetal |
| Dimensions | 266 x 133 x 27 mm |
| Thread | G1/4" |
| GPU Platform | AMD Radeon |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition

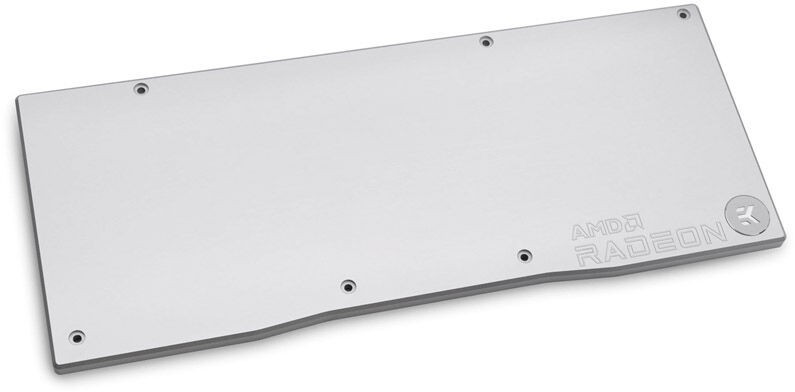

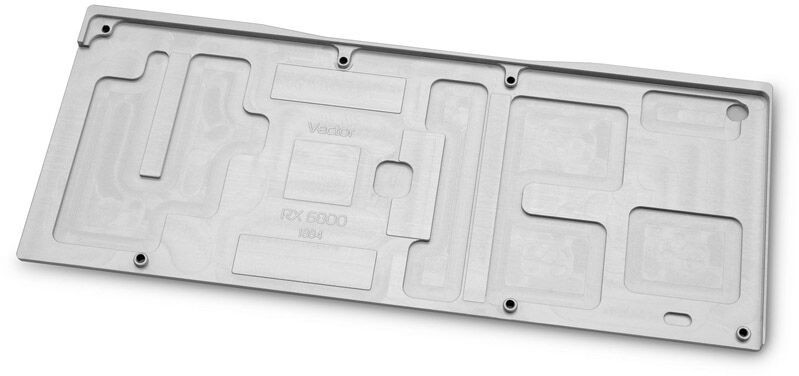

- EK-Quantum Vector RX 6800/6900 - AMD Radeon Edition backplate
- RX 6800/6900 single-slot I/O bracket – black
- Mounting mechanism with screw-in brass standoffs
- All necessary mounting screws, nuts and washers
- 2x Black plugs G1/4"
- EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1 g)
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- The factory backplate of the graphics card cannot be reused.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
For more detailed information, please contact customer service via email or the chat window.
