EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB
Product code: 3831109836538
Price
17.75 €
EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic – Active, water-cooled backplate for EK-Quantum Vector water blocks
EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic is an active backplate that does not just cover the back of the graphics card but is connected directly to the custom loop. Together with the matching EK-Quantum Vector water block, it actively cools the back of the PCB and the components located there.

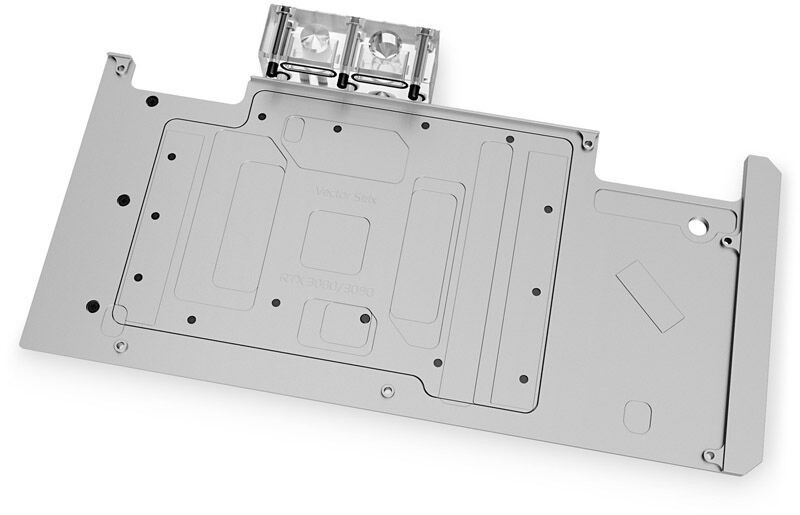

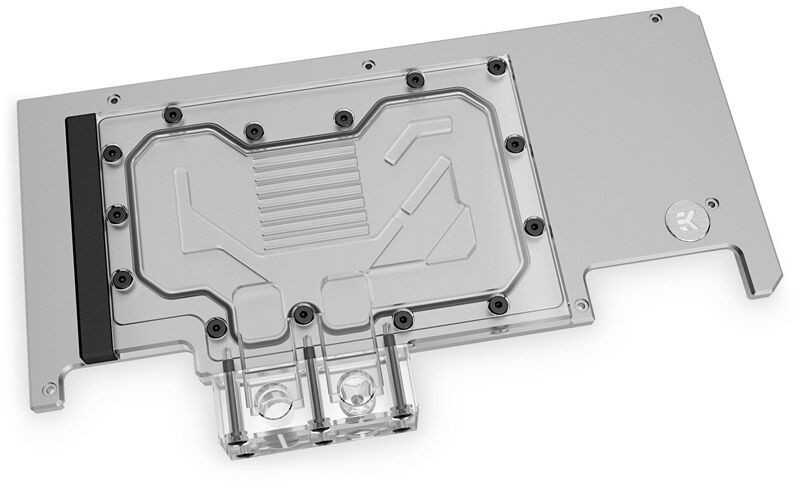

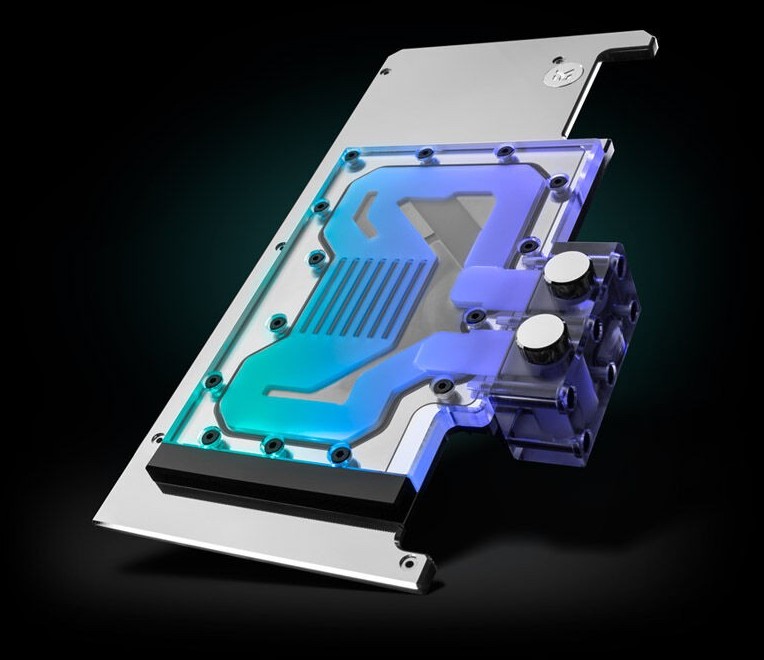

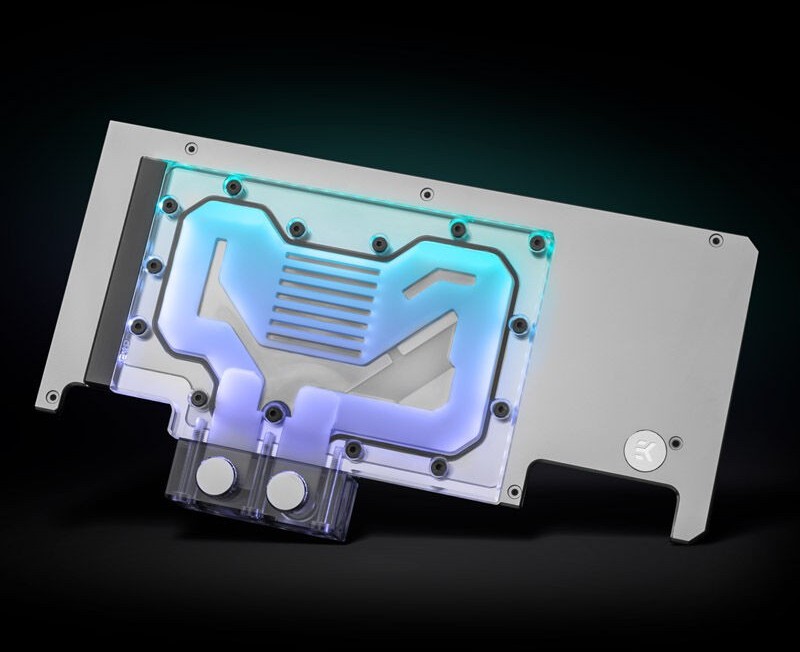

The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are - 281x154x33 mm. Lighting is provided by 8 addressable D-RGB LEDs, connected via a 500 mm cable.
Key Features
- Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- Transparent acrylic top: The clear top reveals the coolant inside and showcases the lighting.
- EPDM gasket: The internal EPDM gasket grips the tube and keeps the connection permanently sealed.
- Check compatibility: EK recommends checking the exact fit for your graphics card in the EK Cooling Configurator beforehand.
- Active liquid cooling of the backside: The backplate is plumbed into the loop and cools the back of the PCB with coolant.
- Used only together with the water block: The active backplate is exclusively used in combination with the corresponding GPU water block.
Technical Specifications
| Type | EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109836538 |
| Series | EK-Quantum Vector |
| Finish | Acrylic |
| Dimensions | - 281x154x33 mm |
| Cable Length | 500 mm |
| D-RGB LEDs | 8 |
| Thread | G1/4" |
| GPU Platform | NVIDIA GeForce |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Plexi
- All necessary mounting screws, nuts and washers
- EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm)
- Thermal pads
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
With EK Water Blocks EK-Quantum Vector Strix RTX 3080/3090 Active Backplate D-RGB - Acrylic you extend your GPU water block with an actively cooled backplate in Acrylic.
For more detailed information, please contact customer service via email or the chat window.
Product can only be ordered
Product is not currently available in stores.
Available to order:
Ordering to a store 6-18 working days.53 pcs
