EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic
Product code: 3831109862582
Price
42.50 €

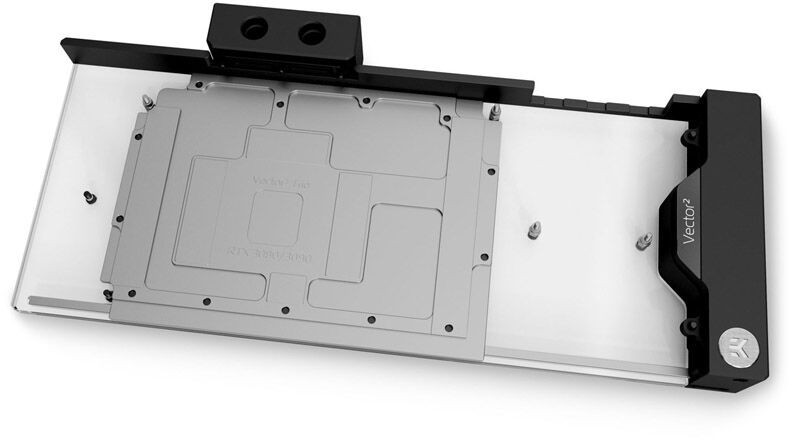

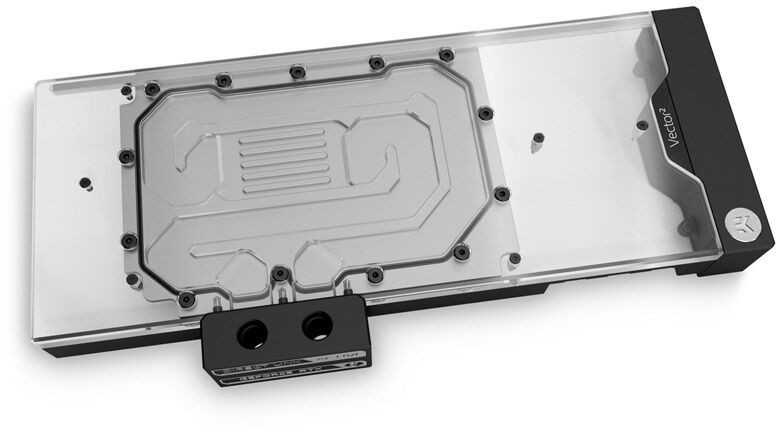

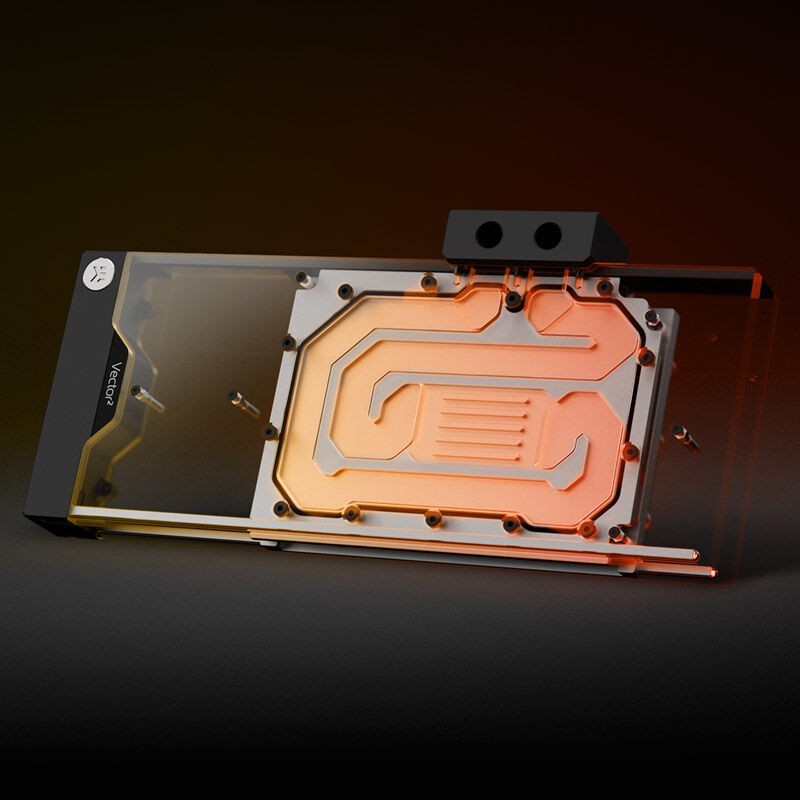

EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards
EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and voltage regulation module (VRM), so all critical components are cooled within a single loop.
The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 334,5 x 155 x 41 mm. Lighting is provided by 18 addressable D-RGB LEDs, connected via a 50 cm cable.
Key Features
- EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment.
- Direct Link terminal with four ports: The four-port layout allows serial and parallel connections from adjacent or opposing sides.
- Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies.
- Rotatable magnetic covers: They hide the terminal screws and can be rotated so the branding stays upright even with an inverted or vertically mounted card.
- Nickel-plated surface: The nickel plating protects the base material and provides an even, long-lasting appearance.
- CNC-machined cold plate: The electrolytic copper base ensures rapid heat transfer.
- Low flow restriction: The cooling engine is designed for even flow distribution and works with low-speed pumps as well.
Technical Specifications
| Type | EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109862582 |
| Series | EK-Quantum Vector² |
| Finish | Nickel + Acrylic |
| Dimensions | 334,5 x 155 x 41 mm |
| D-RGB LEDs | 18 |
| Cable Length | 50 cm |
| Thread | G1/4" |
| GPU Platform | NVIDIA GeForce |
| Manufacturing | Made in Slovenia – Europe |
Scope of Delivery
- EK-Quantum Vector² Trio RTX 3080/90 ABP D-RGB - Nickel + Plexi
- All necessary mounting screws, nuts and washers
- EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm)
- Thermal pads
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
With EK Water Blocks EK-Quantum Vector2 Trio RTX 3080/90 ABP D-RGB - Nickel + Acrylic your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
For more detailed information, please contact customer service via email or the chat window.
