EK-Quantum Vector2 Trio RTX 4080 D-RGB Nickel + Acrylic Full-Cover Water Block
EK Water Blocks EK-Quantum Vector2 Trio RTX 4080 D-RGB - Nickel + Acrylic – Full-cover water block for graphics cards

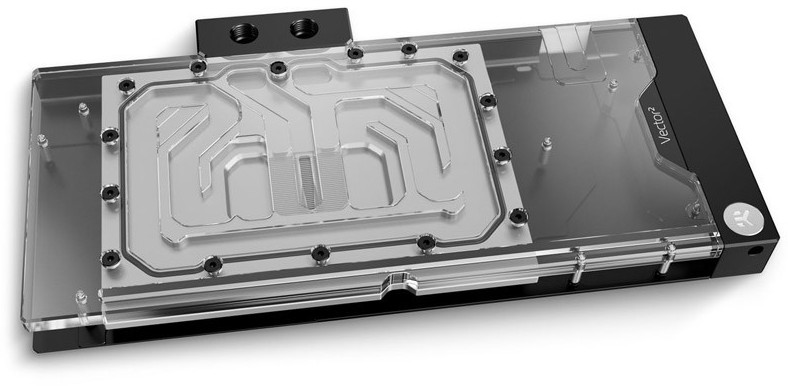

EK Water Blocks EK-Quantum Vector2 Trio RTX 4080 D-RGB - Nickel + Acrylic is a full-cover water block that spans the entire length of the graphics card. Coolant is channelled directly over the GPU core, memory and the voltage regulation module (VRM), so all critical components are cooled within a single loop.

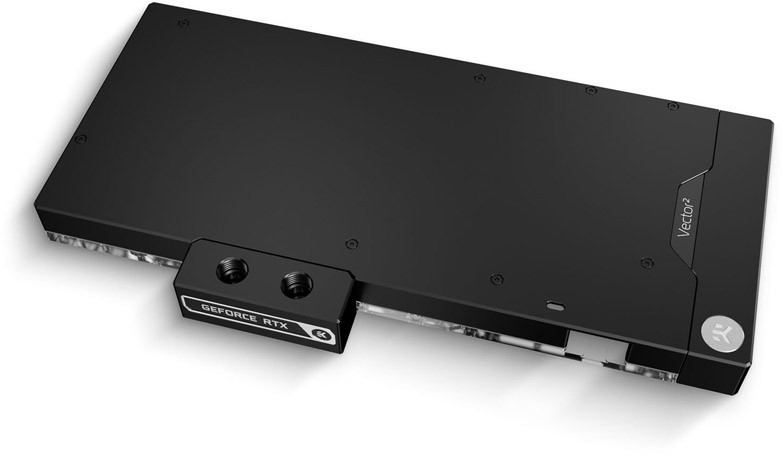

The cold plate is CNC-machined from nickel-plated electrolytic copper, while the top is made of transparent acrylic. The dimensions are 307 x 155 x 27 mm. Lighting is provided by 15 addressable D-RGB LEDs, connected via a 50 cm cable. A matching backplate for the rear of the graphics card is already included.
Key Features
- EK-Matrix7 standard: Port positions and dimensions follow the EK-Matrix7 grid, so tubing can be routed straight and in alignment.
- Open Split-Flow cooling engine: The flow is split across the fin structure. This keeps flow restriction low, so weaker or slow-running pumps are sufficient as well.
- 10 mm thick copper cold plate: The solid copper base absorbs load peaks and spreads the heat evenly across the cooling surface.
- GPU, VRAM and VRM in one block: Coolant flows directly over the graphics chip, memory and voltage regulation module – not just the core.

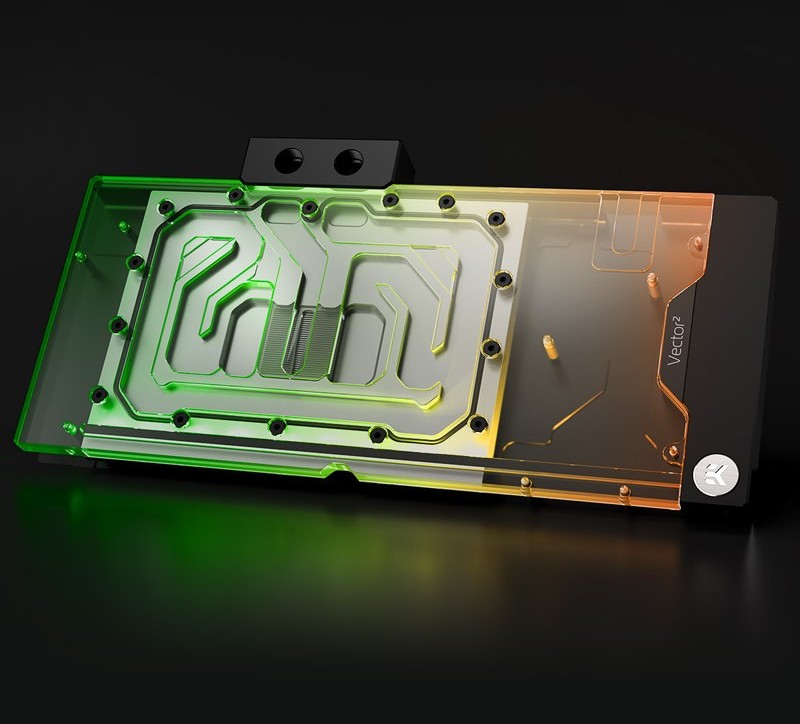

- Addressable D-RGB lighting: Connects to a 3-pin 5V D-RGB header and works with the common motherboard sync technologies.
- Nickel + Acrylic version: Matches fittings and components with the same finish.
Technical Specifications
| Type | EK Water Blocks EK-Quantum Vector2 Trio RTX 4080 D-RGB - Nickel + Acrylic |
|---|---|
| Manufacturer | EK Water Blocks |
| Manufacturer P/N | 3831109902844 |
| Series | EK-Quantum Vector² |
| Finish | Nickel + Acrylic |
| D-RGB LEDs | 15 |
| Cable Length | 50 cm |
| Thread | G1/4" |
| Dimensions | 307 x 155 x 27 mm |
| GPU Platform | NVIDIA GeForce |
| Manufacturing | Made in Slovenia – Europe |
Compatibility
EK Water Blocks EK-Quantum Vector2 Trio RTX 4080 D-RGB - Nickel + Acrylic is compatible with:
- MSI GeForce RTX™ 4080 16GB SUPRIM
- MSI GeForce RTX™ 4080 16GB SUPRIM X
- MSI GeForce RTX™ 4080 16GB GAMING TRIO
- MSI GeForce RTX™ 4080 16GB GAMING X TRIO
Scope of Delivery
- Mounting mechanism
- EK-Loop Thermal Paste NGP
- Thermal pads
Important notes
- Do not run together with aluminium components in the same loop – mixing different metals causes corrosion.
- Use coolants containing corrosion, scale and biological inhibitors to avoid damaging the nickel-plated surfaces.
- The factory backplate of the graphics card cannot be reused.
- Given the variety on the market, EK guarantees fit only for fittings from its own range.
With EK Water Blocks EK-Quantum Vector2 Trio RTX 4080 D-RGB - Nickel + Acrylic, your graphics card runs quietly and at stable performance in the Nickel + Acrylic version.
