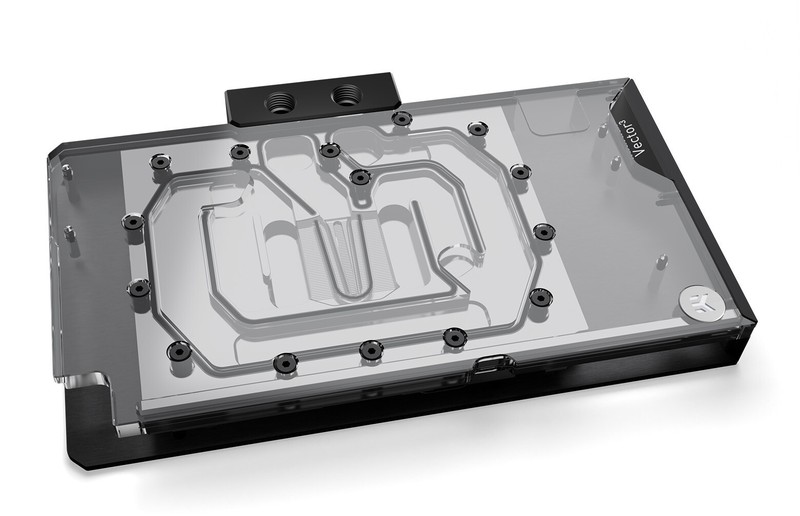

EK Water Blocks EK-Quantum Vector³ TUF RTX 5080 - Plexi
EK Water Blocks EK-Quantum Vector³ TUF RTX 5080 - Plexi: Ultimate Liquid Cooling for Your ASUS TUF RTX 5080
Experience the pinnacle of high-performance liquid cooling with the EK-Quantum Vector³ TUF RTX 5080 – Plexi, specifically designed for the ASUS TUF Gaming GeForce RTX™ 5080 16GB GDDR7 and ASUS TUF Gaming GeForce RTX™ 5080 16GB GDDR7 OC Edition.
This premium water block sets new standards in cooling performance, reliability, and aesthetics. Featuring an improved, larger cooling engine, higher-performance thermal pads, and an innovative gasket design, the Vector³ TUF RTX 5080 guarantees outstanding temperatures, even under extreme loads.
Unmatched Cooling Performance Through Optimized Cooling Engine
The revised cooling structure of the Vector³ TUF RTX 5080 maximizes heat transfer with an expanded fin array and optimized coolant flow paths. It actively cools the GPU core, VRAM, and power stages, while the included backplate provides passive cooling for PCB hotspots.
- Optimized Open Split-Flow Cooling Engine: Superior flow distribution for uniform cooling and reduced restriction.
- Low Hydraulic Restriction: Compatible with both high- and low-flow pump systems.
- Ideal for Overclocking & High-Load Applications: Keep your GPU running at peak performance with sustained low temperatures.
Premium Materials and Precision Engineering
The Vector³ TUF RTX 5080 is built with high-quality components that ensure durability and peak performance:
- Nickel-Plated Electrolytic Copper Coldplate: Maximizes thermal conductivity and longevity.
- CNC-Machined Cast Acrylic Top: Showcases the coolant and offers a crystal-clear aesthetic.
- Black Anodized Aluminum Backplate: Increases cooling surface area and enhances structural integrity.
- Single O-Ring Seal Design: Reduces potential failure points for long-term reliability.
- New Gasket System: Prevents solid coolant particles from collecting between the coldplate and acrylic top, ensuring optimal performance.
- Pre-Cut High-Performance Thermal Pads:
- Next-gen thermal pads are partially pre-cut for seamless installation and optimized contact.
Included Full-Coverage Backplate
Every Vector³ TUF RTX 5080 water block includes a backplate designed to:
- Passively cool PCB hotspots, including VRAM, core, and VRM sections.
- Provide a sleek, modern look with its black anodized aluminum finish.
- Simplify installation with pre-installed captive backplate screws.
EK-Matrix7 Support – For Perfect Loop Planning
The EK-Quantum Vector³ TUF RTX 5080 follows EK-Matrix7, a standard that simplifies liquid cooling loop assembly by aligning ports and spacing components for intuitive tube routing.
- Perfect integration with EK-Quantum Reflection² distribution plates.
- Straightforward Tube Bending & Loop Planning – Less time spent measuring and adjusting.
- Seamless Vertical & Horizontal GPU Mounting – A clean, professional look with minimal effort.
Addressable D-RGB Compatibility
Addressable D-RGB LED lighting is deployed on the longest edge of both top and backside water blocks for improved uniformity and brightness. The PCB and diodes are concealed inside a clean aluminum extrusion. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers.
Technical Specifications:
- Dimensions (L x H x W): 247 x 156 x 27 mm
- D-RGB LED Count: 13
- D-RGB Connector: 3-pin 5V digital LED header
- D-RGB Cable Length: 500 mm
- Made in Slovenia – Europe!
Optimize your ASUS TUF RTX 5080 with the ultimate liquid cooling of the EK-Quantum Vector³ TUF RTX 5080 – Plexi and experience unmatched performance and aesthetics!
