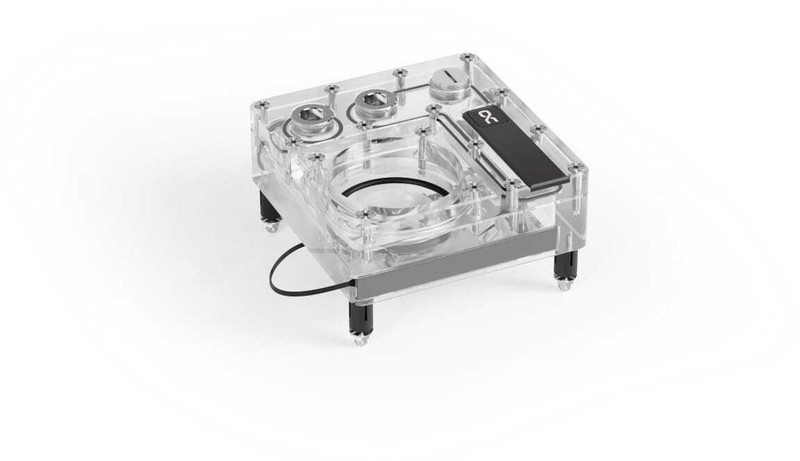

Alphacool Core 120mm Reservoir VPP/D5
The Alphacool Core Reservoir not only looks sleek with its aRGB lighting, but can also be used flexibly thanks to its compact size. The reservoir is made entirely of acrylic. The installation of a D5 or VPP pump is required for operation. Due to its compact design, the Core Reservior also fits into small cases.
Core Design
A key element of Alphacool's Core Design series are the chrome-plated G1/4" connections made of brass. In the Core Reservoir, the connections are recessed rather than screwed into a thread, bypassing the problem of possible leaks due to cracking from the direct screwing of the connections into the acrylic. The connections are in two parts, fitted with an O-ring and counter each other when mounted in the acrylic. This not only ensures absolute sealing of each connection, but also allows for the clear and functional appearance of the Alphacool Core Design series.
Easy installation
With the included Core Push Mounting kit, the Core Reservoir can be mounted on the case or on a radiator. The metal pins are attached to the radiator or case panel and the matching female sleeves are attached to the Reservoir (see manual). In the next installation step, the Reservoir is simply and tool-free pushed onto the pins. Alphacool's Push-Mounting allows for a secure fit of the reservoir on the case panel or on the radiator and allows for easy disassembly for maintenance or expansion projects.
Gamechanger
The Core Reservior is small and compact. This makes the reservoir ideal for custom water loops. An additional drain port is located on the side, allowing for easy and uncomplicated draining of the Reservoir.
High-quality material selection & brilliant lighting
Alphacool's Core Reservoir is made of high-quality acrylic glass, allowing for an unobstructed view of the coolant and brilliant illumination by the built-in digital addressable aRGB LEDs. The lighting can be controlled via a digital aRGB header on the motherboard or optionally through Alphacool's Aurora Eiscontrol aRGB controller (item number: 15360).
| Technical data | |
| Dimensions (L x W x H) | 120.00 x 125.00 x 45.00mm |
| Volume (reservoir) | approx. 65ml |
| Material | Acryl |
| Pump compatibility | D5/VPP |
| Threads | 4x G1/4“ inner thread / 1x drain port |
| Maximum working temperature | 60 °C |
| Pressure tested | 0.8 Bar |
| Quantity digital aRGB LEDs | 6 |
| Voltage digital aRGB LEDs | 5V |
| Power connection digital aRGB LEDs | 3-Pin JST + 3-Pin 5V |
| Weight | 660g |
| Color | transparent |
Warranty: 3 years
🔗 Warranty Terms
