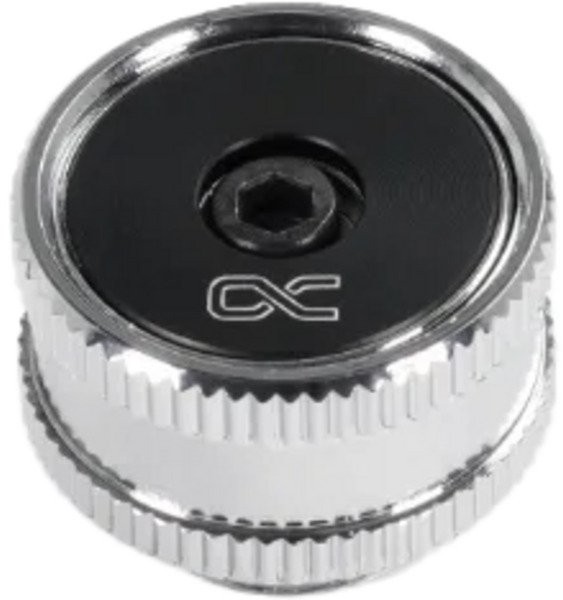

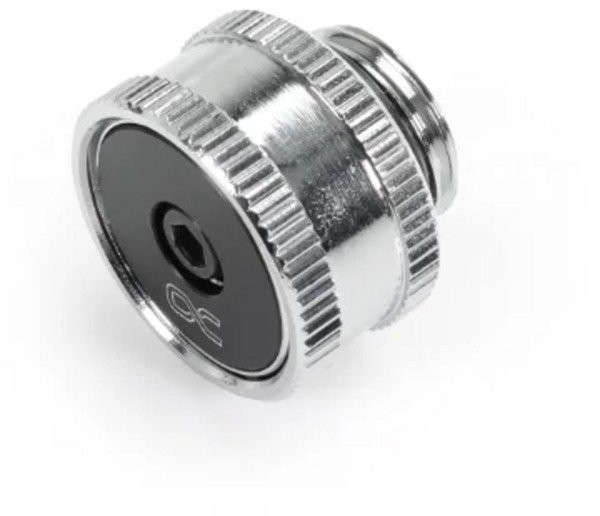

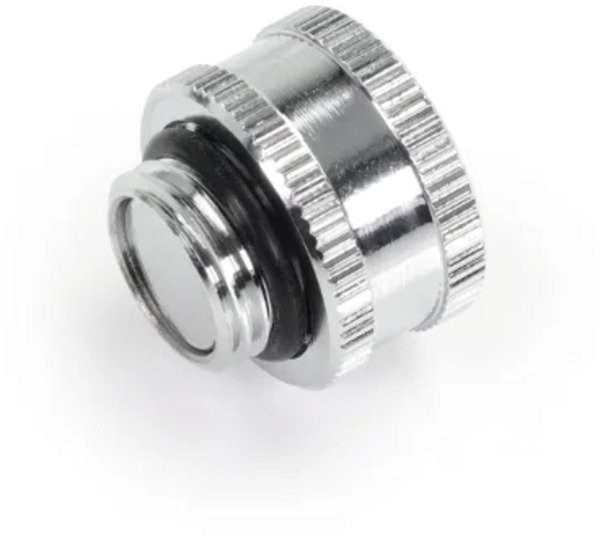

Alphacool ES Pressure Valve G1/4’ OT
EAN: 4250197146692
- Colour: chrom/schwarz
Price
9.95 €
The Alphacool ES Pressure Valve is designed to manage pressure fluctuations in closed-loop water cooling systems. Developed for use in servers, workstations, and industrial environments, it safeguards individual components from excessive pressure build-up.
Thanks to its compact dimensions—just 20.0 mm in height and 16.0 mm in diameter—the valve is well-suited for installations where space is limited. The G1/4" thread ensures straightforward integration into existing cooling circuits. Installation is versatile, allowing the valve to be positioned where it most effectively contributes to system reliability.
Engineered for continuous use under demanding conditions, the valve features a durable housing that resists both thermal and mechanical stress. Its precision valve mechanism guarantees reliable performance throughout its entire operational lifespan.
Technical specifications
Type: Pressure equalizing valve to limit the pressure increase in the closed system
Dimensions: 20.0 mm x 16.0 mm
Material Valve body: brass (CuZn39Pb3)
Compression spring material: stainless steel (X10CrNi18-8)
Material O-ring: NBR Shore 70
Working pressure: 2bar
Burst pressure: 4bar
Working temperature (in degrees Celsius): -20 ~ +100
Recommended liquids: water, deionized water, glycol water, propanediol water etc.
Thread type: G1/4’, external thread 5mm
Weight: 18g
Color: silver/black
For more detailed information, please contact customer service via email or the chat window.
