MINIS FORUM M1 Plus i5-12600H 16GB + 512GB Mini PC
MINIS FORUM M1 Plus i5-12600H 16GB + 512GB Mini PC
The MINIS FORUM M1 Plus Mini PC is a compact computer that combines high performance with modern connectivity. It is suitable for both office work and more demanding tasks where stability, speed, and the ability to connect multiple devices are important. With an Intel® Core™ i5-12600H processor and a fast 512 GB SSD, you can work smoothly and without downtime.
Uncompromising power of the Intel® Core™ i5-12600H processor
At the heart of the device is an Intel® Core™ i5-12600H processor with 12 cores and 16 threads, which reaches a maximum clock speed of 4.5 GHz in Turbo mode. This configuration translates into fast program launch times, efficient multitasking, and smooth handling of more demanding tasks. The 65 W TDP allows the processor to maintain high performance under load, so the computer does not lose speed even during intensive work.
Smooth multitasking and fast DDR5 memory
DDR5 memory eliminates bandwidth bottlenecks, which in practice means faster system response and stable operation with multiple applications open. The set includes 16 GB of RAM, and the design allows for further expansion – up to 64 GB as standard and up to 96 GB maximum, with a supported frequency of up to 5200 MHz. The fast 512 GB SSD speeds up system startup and file loading, significantly reducing waiting time and increasing everyday user comfort.
Stable performance thanks to active cooling
The built-in cooling system is designed to effectively dissipate heat not only from the processor, but also from the DDR memory and SSD. A dedicated fan directs airflow straight to the key components, helping maintain stable performance even under prolonged load. At the same time, the device operates quietly—the noise level in everyday use does not exceed 45 dB, so the computer will not distract you during work or online meetings.
Support for three 4K displays
The MINIS FORUM M1 Plus allows you to connect three independent 4K monitors simultaneously via HDMI, DisplayPort, and USB4. This configuration expands your workspace, making it easier to work with spreadsheets, graphic designs, or multiple documents at once. A larger screen area translates directly into better organization and higher productivity.
Ultra-fast network and modern connectivity
Dual 2.5 GbE LAN ports provide a very fast and stable wired connection, which is important in a modern work environment, when transferring large files or working with servers. There is also a fully functional USB4 port with bandwidth of up to 40 Gb/s and Power Delivery support (input/output), allowing fast data transfer and flexible connection of modern devices. Wirelessly, the computer uses Wi-Fi 6E and Bluetooth 5.2, which ensures a stable connection to the network and accessories such as headphones, keyboards, and mice.
Compact housing and space saving
Its small dimensions mean the M1 Plus fits easily on a desk, and thanks to the option of mounting it on a wall or on the back of a monitor, it helps organize your workspace. This solution saves space and supports a neat, tidy cable layout. The MINIS FORUM M1 Plus i5-12600H is designed for those who expect high performance in a compact form. It combines a powerful processor, fast components, and extensive connectivity options, making it suitable for both the office and the home workspace.
Included:
Mini PC Minis Forum M1 PlusAC power adapterPower cordHDMI cableSet of mounting screwsMounting bracket (VESA) for hanging the mini PCUser manual
| Manufacturer | Minis Forum |
|---|---|
| Model | M1 Plus i5-12600H |
| Processor | Intel® Core™ i5-12600H (12 cores / 16 threads) |
| Graphics card | Intel® Iris® Xe Graphics |
| RAM | DDR5 Dual Channel SO-DIMM; 16 GB |
| Maximum supported capacity | 96 GB |
| Default frequency | 4800 MHz |
| Maximum supported frequency | 5200 MHz |
| Maximum clock speed | 4.50 GHz |
| Storage | 1 × M.2 2280 NVMe SSD (PCIe 4.0 x4); 512 GB |
| Wireless connectivity | Wi-Fi 6E, Bluetooth 5.2 |
| Network card | 2.5GbE (RJ45) |
| Video outputs | HDMI 2.1 TMDS ×1 (up to 4K@60Hz), DisplayPort 1.4 ×1 (up to 8K@60Hz / 4K@144Hz), USB4 ×1 (up to 8K@60Hz / 4K@144Hz) |
| Audio outputs | HDMI 2.1 ×1, DisplayPort 1.4 ×1, 3.5 mm combo jack ×1 |

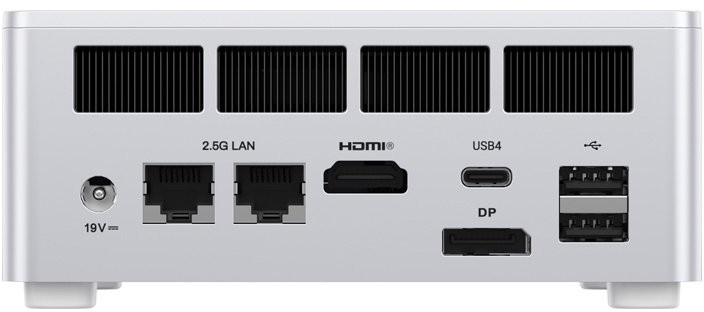

| Ports and connectors | 3.5 mm combo jack ×1, USB Type A (USB 3.2 Gen 2) ×2, USB Type A (USB 2.0) ×2, USB Type C (USB4, 40 Gb/s, Alt DP, PD input 65–100 W, PD output 15 W) ×1, DC 19V (power supply), 2 × LAN 2.5GbE (RJ45), HDMI 2.1 TMDS ×1 (up to 4K@60Hz), DP 1.4 ×1 (up to 4K@120Hz) |
| Power supply | 19V / 6.32A 120W |
| Wall mounting | Supported (mount included) |
| Operating system installed | None |
