Lenovo SE10 Atom X6425RE Fanless IoT PC with Win11
Product code: 12NH001PMT
- CPU: Intel Atom x6425RE (4C / 4T, 1.9GHz, 1.5MB)
- GPU: Intel UHD Graphics
- RAM: 8 GB
- SSD: 256 GB SSD
Price
966.90 €
Monthly payment
28.20 € / starting from monthly
Lenovo ThinkEdge SE10 is an IoT endpoint designed to provide versatile and reliable connectivity and integration into production environments. It is Lenovo's first ThinkEdge device that utilizes a low-power and performance-enhanced Intel Elkhart Lake Atom processor.
Lenovo Open Cloud (LOC-A) automation, combined with XClarity features, provides a unified deployment and management platform for edge devices and servers. The ThinkEdge SE10 is also certified for Microsoft Azure IoT Edge and Amazon Web Services (AWS) IoT Greengrass, enabling quick and effortless deployment and device integration.
Its robust, compact, and fanless design ensures reliable operation in extreme conditions, and various mounting options (VESA, DIN rail, and wall mounting) make it easy to position in production facilities. Windows 10 IoT Enterprise LTSC guarantees long lifecycle support for the operating system, advanced device management, and enterprise-level security.
Key Features:
Lenovo Open Cloud (LOC-A) automation, combined with XClarity features, provides a unified deployment and management platform for edge devices and servers. The ThinkEdge SE10 is also certified for Microsoft Azure IoT Edge and Amazon Web Services (AWS) IoT Greengrass, enabling quick and effortless deployment and device integration.
Its robust, compact, and fanless design ensures reliable operation in extreme conditions, and various mounting options (VESA, DIN rail, and wall mounting) make it easy to position in production facilities. Windows 10 IoT Enterprise LTSC guarantees long lifecycle support for the operating system, advanced device management, and enterprise-level security.
Key Features:
- Operating System: Windows 10 IoT Enterprise 64-bit LTSC
- Processor: Intel Atom x6425RE (4C/4T, 1.9GHz, 1.5MB)
- Graphics: Integrated Intel UHD Graphics
- Memory: 8GB SODIMM DDR4 3200MHz
- Maximum Memory: 32GB, one free SODIMM slot
- Storage: 256GB SSD M.2 2230 PCIe 4.0 x4 NVMe Opal
- 2x 2.5 Gigabit Ethernet
- MediaTek Wi-Fi® 6 MT7921 11ax 2x2 and Bluetooth 5.1
- Passive cooling
- Front panel LED indicators: LED1 storage, LED2 Wireless, LED3 user-selectable

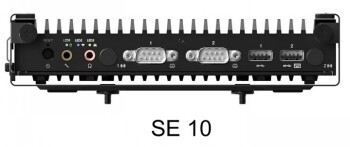

- Front panel connections: 2x USB-A 3.2 Gen2, 2x serial (RS-232/422/485), Mic 3.5mm, line out 3.5mm
- Back panel connections: 1x HDMI 1.4b, 1x DisplayPort 1.4, 1x USB-A 2.0, 2x RJ45, Slim Tip power connector, 2x RP-SMA female WLAN antenna connectors
- SD card reader
- TPM 2.0 security chip
- XClarity In-Band device management
- Does not include keyboard or mouse
- DIN rail mount
- External power supply: 65W
- Operating environment:
- Temperature: IEC60068-2-1 Test A: Cold, IEC 60068-2-2 Test B: Dry heat, 0°C to 50°C with 0.7 m/s airflow
- Relative humidity: IEC 60068-2-66 Damp heat, steady state 95%@40°C non-condensing
- Shock protection: IEC 60068-2-27, shock, operating, 30G / 11ms, half sine
- Vibration protection: IEC 60068-2-64, Vibration, Operating, 3Grms, random, 5 ~ 500Hz, 1hr/axis
- MIL-SPEC 810H military-grade durability
- Includes IP 50 Dust Cover kit
- Weight: approximately 1.5kg
- Dimensions: 179 x 135 x 34.5mm
- Basic warranty: 3 years on-site
For more detailed information, please contact customer service via email or the chat window.
CPU Technical Details
FamilyIntel Atom®
ModelIntel Atom x6425RE (4C / 4T, 1.9GHz, 1.5MB)
Cores4
Graphics Card
ChipsetIntel UHD Graphics
DisplayPort1
HDMI1x HDMI
Memory
RAM8 GB
RAM TypeDDR4
Ram Speed3200 MHz
SSD Capacity256 GB SSD
Connectivity
WirelessMediatek Wi-Fi 6 MT7921, 11ax 2x2
USB 3.2 Type-A2x USB 3.2 A TÜÜP
Software
Operation SystemWindows 11 IoT Enterprise
Toiteplokk
Wattage65 W
Extra information
Manufacturer warranty (months)
- 36 m
- 36
Product can only be ordered
Product is not currently available in stores.
Fast shipping
Available to order:
Ordering to a store 2-5 working days.18 pcs
