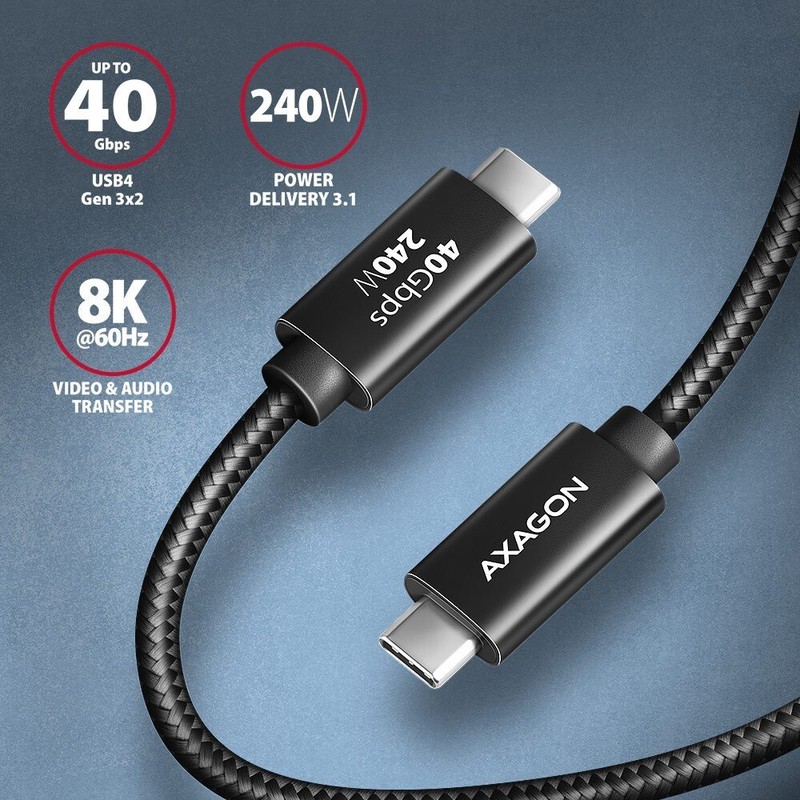

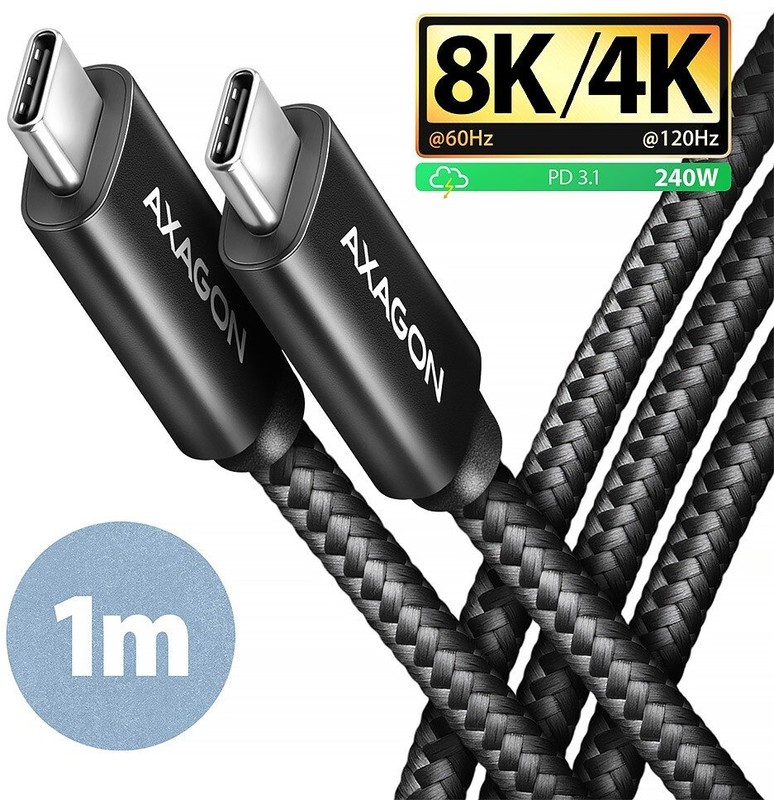

Axagon BUCM4X-CM10AB USB-C to USB-C cable USB4.0 240W 1m black
Premium USB-C to USB-C Data and Charging AXAGON BUCM4X-CM10AB NewGen+ cable with USB-C male connectors on both ends. The cable features a full-spec USB 40Gbps connection (USB4 Gen 3x2) and is fully compatible with Thunderbolt 3 and Thunderbolt 4 standards. It is designed for ultra-fast data transfer, video transmission, and charging of laptops, phones, and tablets. It enables the connection of monitors, docking stations, and external SSDs.
The cable supports data transfer speeds up to 40 Gb/s and also provides video transmission up to 8K/60Hz Full Ultra HD resolution with audio.
The cable integrates the latest Power Delivery 3.1 charging technology specification. This technology enables a power output of 240W, which is more than double the 100W maximum of Power Delivery 3.0. You can use both the Standard Power Range (SPR) for voltages of 5, 9, 15, and 20V at 5A, as well as extended power at fixed voltages of 28, 36, and 48V at a maximum current of 5A (Extended Power Range - EPR). Thanks to the new PD 3.1 technology, you can use the cable to power much more demanding devices such as gaming laptops, 8K monitors, and docking stations. To identify the cable and its current capabilities, it features an integrated E-Mark chip.
The cable is also compatible with Quick Charge, PPS, Samsung AFC and SFC, Apple, SMART, and other charging technologies.
The cable conductors are made from tin-plated oxygen-free copper. 22AWG power wires (lower number = larger cross-section and less resistance) and 32AWG data wires ensure fast charging and reliable data transfer for connected devices. High-quality insulation made from flexible TPE guarantees maximum durability while maintaining sufficient flexibility. Triple shielding protects signal transmission against interference.

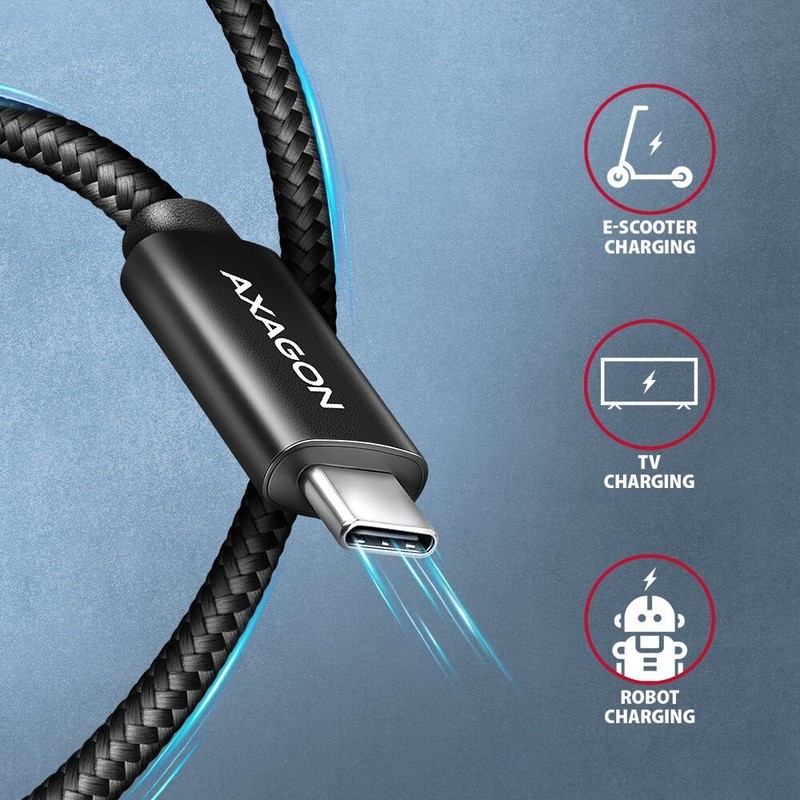

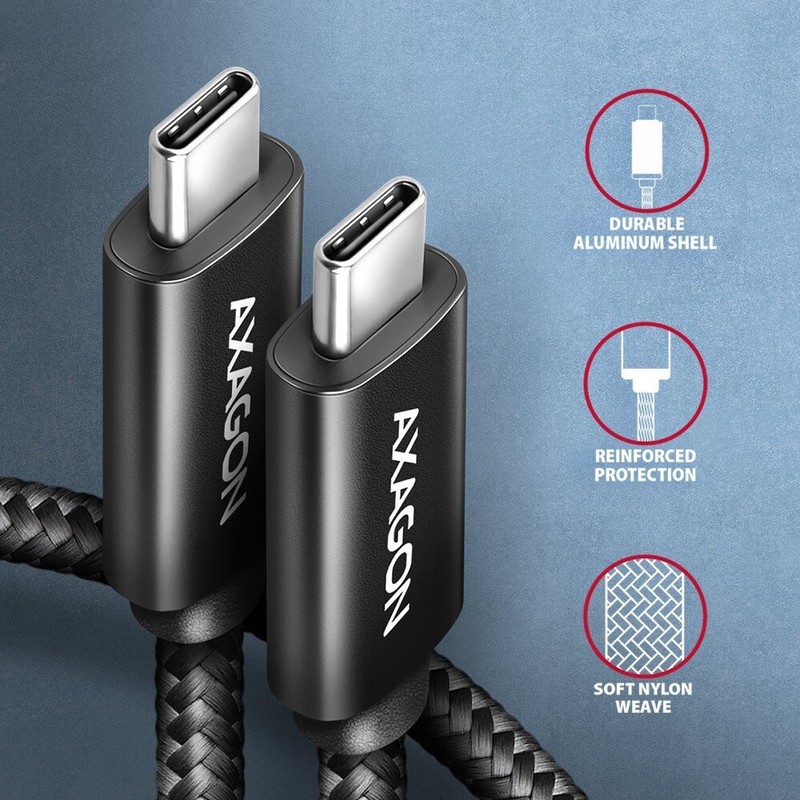

The cable is equipped with aluminum end caps, connectors with a nickel-plated surface, and gold-plated contacts. The nylon braid ensures extra durability, while the cable gland significantly reduces harmful bending. The cable’s lifespan is extended beyond 8000 standard bends.
A practical velcro strap for easy cable organization is included.
Connectors:
2x USB-C (M) male.
Data and video transfer, charging:
40 Gb/s, 8K/60Hz HDR10
Power Delivery 3.1 – 240W (48V/5A)
Other features:
DATA SYNC & FAST CHARGING – simultaneous data and video transmission and device charging.
Support for third-generation transfer rates of 40 Gb/s.
USB4 Gen 3x2 Full-featured.
Compatible with Thunderbolt 4, Thunderbolt 3 (including Apple support).
Support for second-generation transfer rates 20 / 10 Gb/s.
Compatible with USB4 Gen 2x2, USB 3.2 Gen 2x2 / USB 3.2 Gen 2.
Supports transfer rates of 5,000 / 480 Mb/s.
Compatible with USB 3.2 Gen 1 (formerly USB 3.1 Gen 1 / USB 3.0) / USB 2.0.
DisplayPort 1.4a, 2.0 protocol support for audio and video transmission up to Full Ultra HD 8K@60Hz, HDR10 – requires a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) support or a Thunderbolt 3/4 port.
Supported charging technologies: Power Delivery 2.0 / 3.0 / 3.1 240W (48V/5A), Qualcomm Quick Charge 2.0 / 3.0 / 4+, Samsung Adaptive Fast Charging, Huawei Fast Charge Protocol, SMART Charging, and more.
Supports fast charging with current up to 5A.
Integrated E-MARK chip.
Cable includes 22AWG power wires, 32AWG data wires.
Tin-plated oxygen-free copper conductors for reduced oxidation, increased conductivity, and clear signal without distortion.
Double shielding with galvanized foil and tinned copper braiding to minimize interference and prevent signal loss.
Nickel-plated connectors and gold-plated contacts prevent oxidation and ensure a reliable connection.
Suitable for MacBooks, iPhone 15 Pro / Pro Max, notebooks, smartphones, tablets, power banks, chargers, monitors, docking stations, external SSDs, and other devices with a USB-C connector.
Other data:
Cable length: 1 m
Outer diameter: 5 mm
Package contains:
USB-C M to USB-C M black cable
Velcro strap
Packed in sealed foil packaging with hang hole.
