Raspberry Erweiterungsboard POE für 3B und 4B

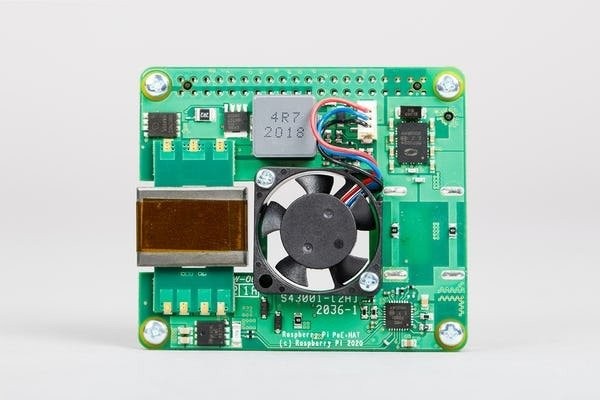

Use this HAT to add PoE+ capability to your Raspberry Pi's Ethernet port. Compatible with Raspberry Pi 4 and Raspberry Pi 3B+. Power-sourcing equipment is required.
Specification
Standard: IEEE 802.3at-2009 PoE
Input voltage: 37-57 V DC, Class 4 device
Output power: 5 V DC/4 A
Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
Features: fully isolated switched-mode power supply; fan control
Operating temperature: 0 °C to +50 °C

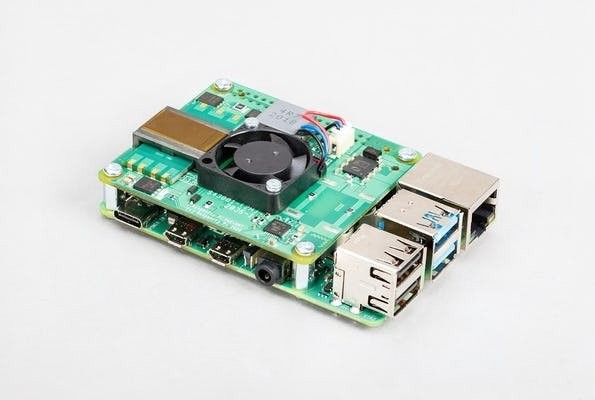

Connecting your PoE+ HAT to your Raspberry Pi
Before installing the PoE+ HAT, you must attach the supplied spacers in the four corners of the board
Then connect the Raspberry Pi PoE+ HAT to the two 0.1" headers (40 + 4) that are fitted on your Raspberry Pi
Once the PoE+ HAT board is connected, you can power your Raspberry Pi through its RJ45 network connector
Disconnecting your PoE+ HAT
Take care when separating the HAT from your Raspberry Pi
Pull evenly so that it detaches from all the pins at the same rate; do not pull one end of the connector off before the other
Additional information
No modification to the main Raspberry Pi board is needed for this product to work. Please ensure that your Raspberry Pi’s software is up to date for all functionality to be available. The PoE+ HAT is fitted with a small fan that is controlled by your Raspberry Pi via I2C. The fan will turn on and off automatically depending on the temperature of the main processor on your Raspberry Pi.
