Specification:
Processor 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography
extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
Features:
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• 8GB LPDDR4X-4267 SDRAM
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)

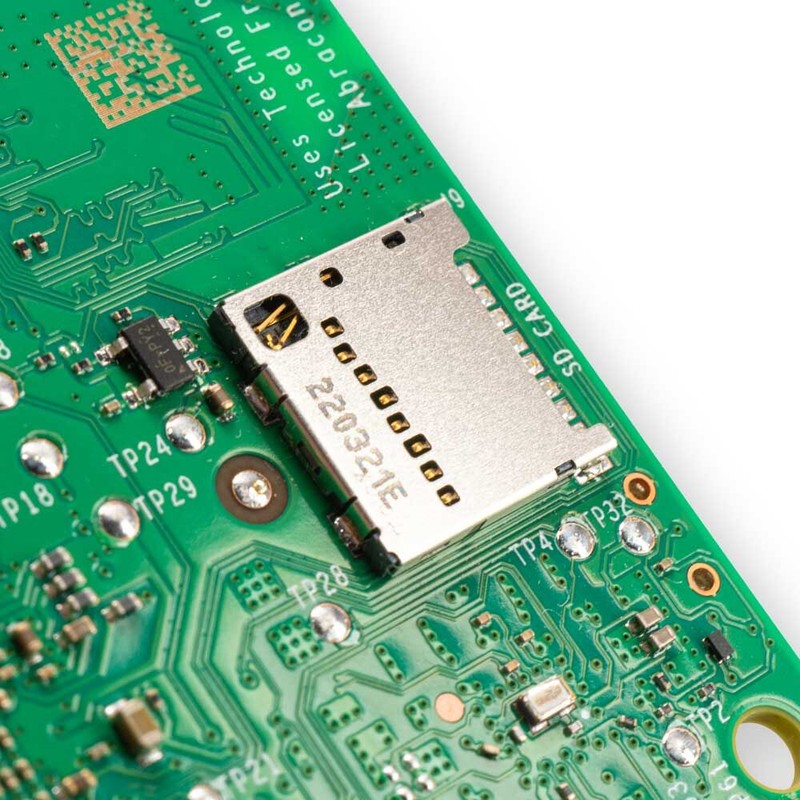

• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers

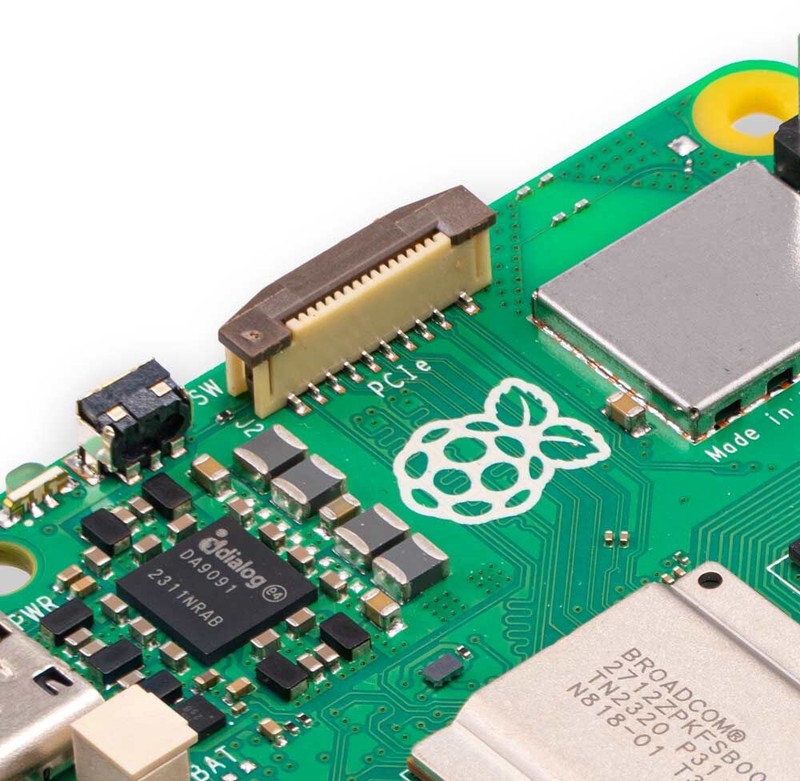

• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)

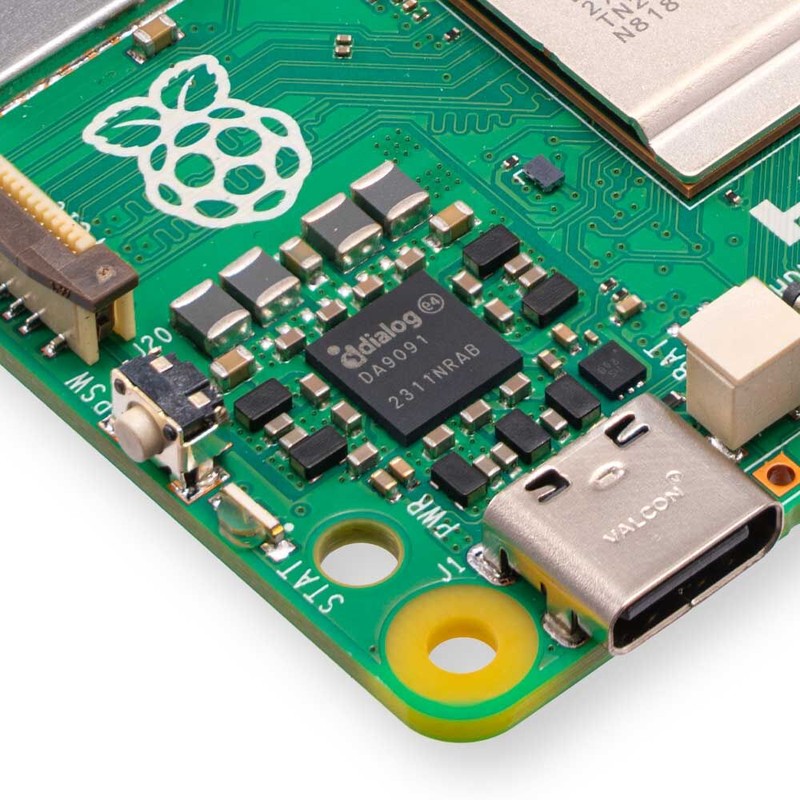

• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
