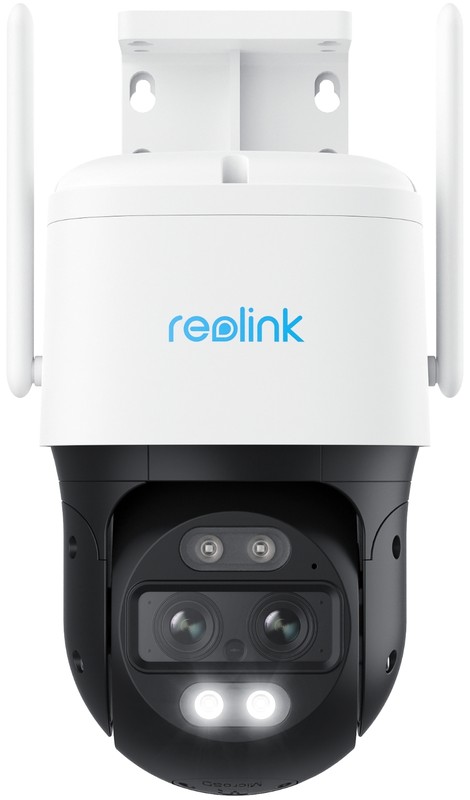

Reolink TrackMix Series W760 - 4K Outdoor Camera, Dual View, Auto-Zoom Tracking, 2.4/5Ghz Wi-Fi, Color Night Vision
- Camera type: Outdoor
- Resolution: 3840 x 2160
- Waterproof: IP65
4K Dual-Lens Auto Tracking PTZ WiFi Security Camera with Smart Detection, Night Vision • Dual Lens, View & Tracking • 4K 8MP Ultra HD • 2.4/5GHz Dual-Band WiFi
Specifications
Video & Audio:
Image Sensor
1/3"+1/2.8"CMOS Sensor
Video Resolution
Up to 3840 x 2160 (8.0 megapixels) at 20 frames/sec
Lens
f=2.8mm@F=1.6，f=8mm@F=1.6
Video Format
H.264,H.265
Field of View
• Horizontal: 104°-38°
• Vertical: 60°-21°
Zoom Mode
6X hybrid zoom
Day & Night
IR-cut filter with auto-switching
Infrared Night Vision
Up to 30 meters (100ft) (LED: 2pcs/850nm)
Color Night Vision
Spotlights: 2pcs/6500K/450 lumens
Pan &Tilt Range
Pan: 355°, Tilt: 0°~90°
Pan Speed
2.5°-90°/s (Speed can be set)
Tilt Speed
1.5°-60°/s (Speed can be set)
Preset
32
Auto Tracking
Support
Audio
Two-way audio
DC Power
DC 12.0V⎓2A, <12W
Interface:
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps RJ45
Storage
Micro SD card slot (Max. 256GB)
Audio
Built-in microphone and speaker
Wireless Standard
IEEE 802.11a/b/g/n
Operating Frequency
2.4GHz/5GHz
Wireless Security
WPA-PSK/WPA2-PSK
Frame Rate
• Mainstream: 2fps - 25fps
• Substream: 4fps - 20fps
Code Rate
• Mainstream: 4096Kbps -8192Kbps
• Substream: 128Kbps -1228Kbps
Browsers Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection; person detection; vehicle detection; pet detection
Record Modes
Motion/scheduled recording (default: motion recording)
Tracking Method
Digital Tracking; Pan/Tilt Tracking First; Digital Tracking First
Protocols & Standards
HTTP, HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP,RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P,FTP
Maximal User Access
Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts)
Work with
Google Assistant
Temperature
Operating temperature: -10°C~+55°C (14°F~131°F)
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP65
Dimension
228*147*129mm
Weight
1.211kg
