Axagon ACU-PQ67 GaN 67W dual-port USB wall charger
- Wattage: 67 W
- Number of ports: 2; 1

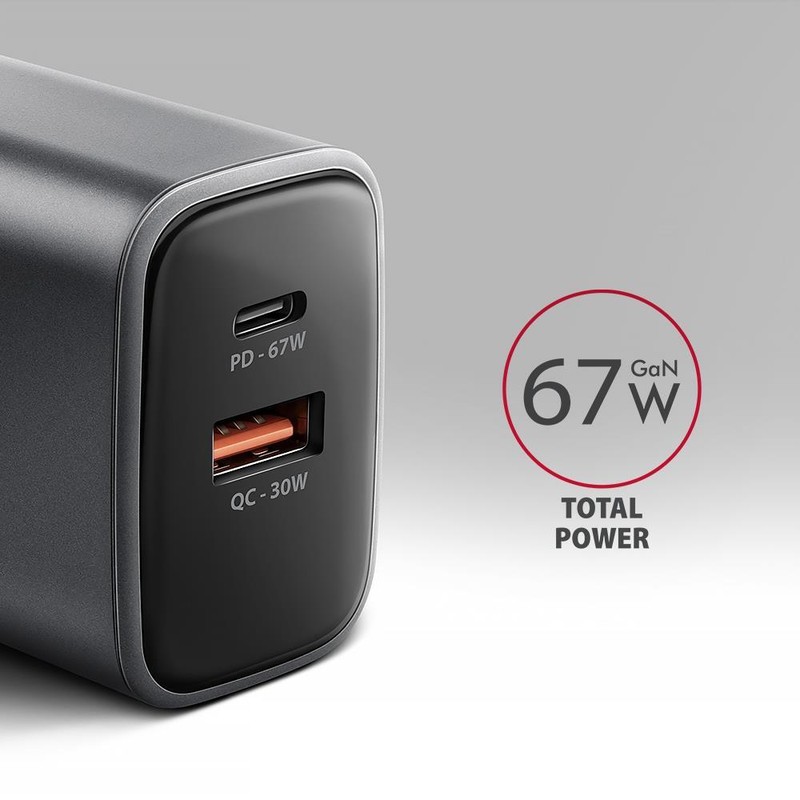

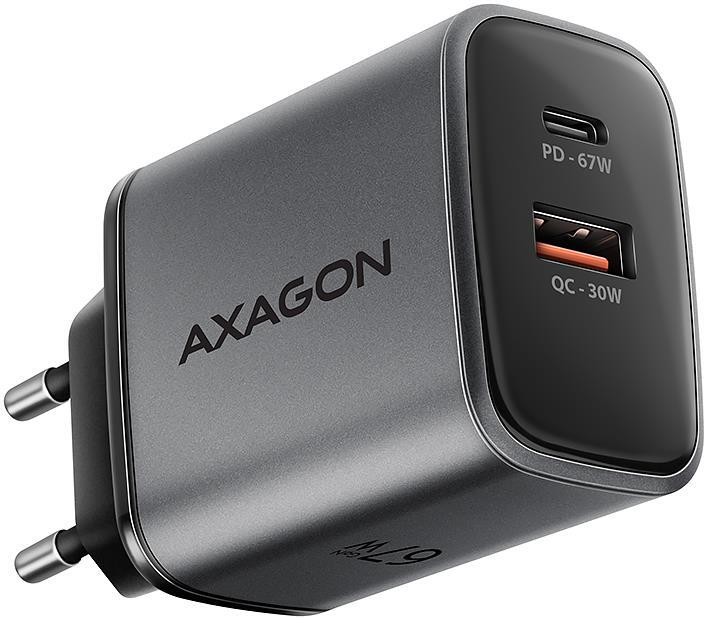

The AXAGON ACU-PQ67 GaN travel wall charger enables fast charging of up to two mobile devices at the same time. With a total output power of 67W, the charger can recharge laptops, tablets, phones, and other mobile devices at their maximum possible speed. The adapter is equipped with both a standard USB-A connector and a reversible USB-C connector.
Its compact size and high performance are possible thanks to advanced GaN technology. Gallium Nitride components operate with high efficiency, allowing for high power output in a small size. The charger features a Power Delivery 3.0 / Quick Charge 4+ USB Type-C output and a Quick Charge 3.0 USB Type-A output, making it suitable for fast charging not just smartphones and tablets, but also laptops.
Quick Charge 4+ technology enables up to 4x faster charging for phones compared to a standard USB charger. Power Delivery 3.0 technology supports fast charging for modern phones and enables up to 67W charging for recent laptops.
Apple devices are supported for fast charging, with maximum power depending on the model: iPhone 12-15 support up to 20W, iPhone 16 and 16 Pro up to 24W, iPhone 13 Pro to 15 Pro and iPhone 17 up to 27W. Higher power is available for the iPhone 16 Pro Max up to 30W and iPhone 17 Pro and Pro Max up to 40W. The charger is also compatible with iPads and Apple MacBook Air and Pro laptops.
Samsung Galaxy phones support Super Fast Charging up to 25W SFC for the Galaxy S20-S25 series and Z Fold and Z Flip foldable models. Selected Galaxy Ultra models and Galaxy Tab tablets support even faster charging, up to 45W SFC 2.0.
The charger is also compatible with other brands such as Motorola, Google Pixel, Xiaomi, Honor, Oppo, OnePlus, Realme, and other popular phones and tablets. It is suitable for charging laptops with PD 3.0 technology up to 67W from brands like Lenovo, HP, Dell, Acer, Asus, and others.
An advanced output protection system safeguards connected devices from damage. The charger's functions also automatically detect the connected device and select the optimal charging speed and process.
The power adapter has a pleasant shape and compact size. Compared to standard charging adapters with the same specifications, this charger is up to half the size. The combination of compact dimensions made possible by GaN technology and a wide input voltage range makes this charger ideal for travel.
Input:
Input voltage AC 100V-240V / 1.8A / 50-60Hz (WIV function), supports multiple national power standards
Two-pin Euro plug - integrated into the adapter body
Outputs:
USB-A port QC (phones) max. 30W: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
Charging technologies: QC 3.0, QC 2.0, AFC, SCP, FCP, SMART, Apple 2.4A
USB-C port PD (laptops, phones) max. 67W: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.35A, PPS: 3.3-11V/5A
Charging technologies: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, SMART, Apple PD
Maximum charger output when using multiple ports:
2 devices connected simultaneously
USB-C port PD = 45W MAX
USB-A port QC = 12W MAX
Note: When charging multiple devices simultaneously, the required power is shared dynamically between them. The allocated power may change during charging.

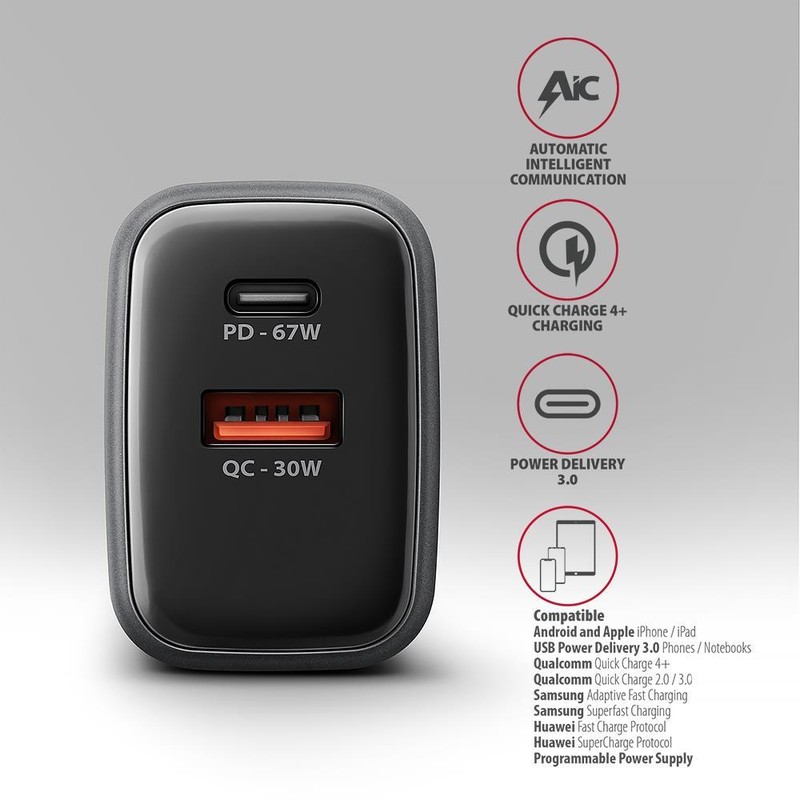

Supported charging technologies:
Standard charging for all devices supporting 5V and charging for Apple iPhone 5, 6, SE, 7.
SMART - charging up to 5V/4.5A, Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A), and Apple 2.4A (iPad).
FCP - fast charging via Huawei Fast Charge Protocol.
SCP - fast charging (up to 25W) via Huawei SuperCharge Protocol.
AFC - fast charging using Samsung Adaptive Fast Charging protocol.
SFC - fast charging via Samsung Super Fast Charging and Super Fast Charging 2.0 protocols.
QC - fast charging via Qualcomm Quick Charge 2.0, 3.0, and 4+ protocols.
PPS - fast charging via Programmable Power Supply protocol (part of USB PD 3.0 and QC4+).
PD - fast charging using USB Power Delivery 2.0 and Power Delivery 3.0 protocols.
Examples of supported phones, tablets, and laptops:
SFC - fast charging (up to 25W) for Samsung Galaxy S20, S21, S22, S23, S24, S25 series, Note 10, 20 series, Z Fold 2, 3, 4, 5, 6, 7 series, Z Flip 3, 4, 5, 6, 7.
SFC 2.0 - fast charging (up to 45W) for Samsung Galaxy S20, S21, S22, S23, S24, S25 Ultra, Tab S7+, Tab S8+, Tab S9+, Tab S10+, Tab S8 Ultra, Tab S9 Ultra, Tab S10 Ultra
PD - fast charging for Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max.
PD - fast charging (up to 20W) for Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus, 15, 15 Plus, 16 Plus
PD - fast charging (up to 24W) for iPhone 16e, iPhone 16, iPhone 16 Pro
PD - fast charging (up to 27W) for Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max, 15 Pro, 15 Pro Max, iPhone 17
PD - fast charging (up to 30W) for iPhone 16 Pro Max
PD - fast charging (up to 40W) for iPhone 17 Pro, 17 Pro Max
PD - fast charging (up to 67W) for laptops from Lenovo, HP, Dell, Acer, Asus, Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro, and others.
The charger supports WIV, AIC, and CC functions:

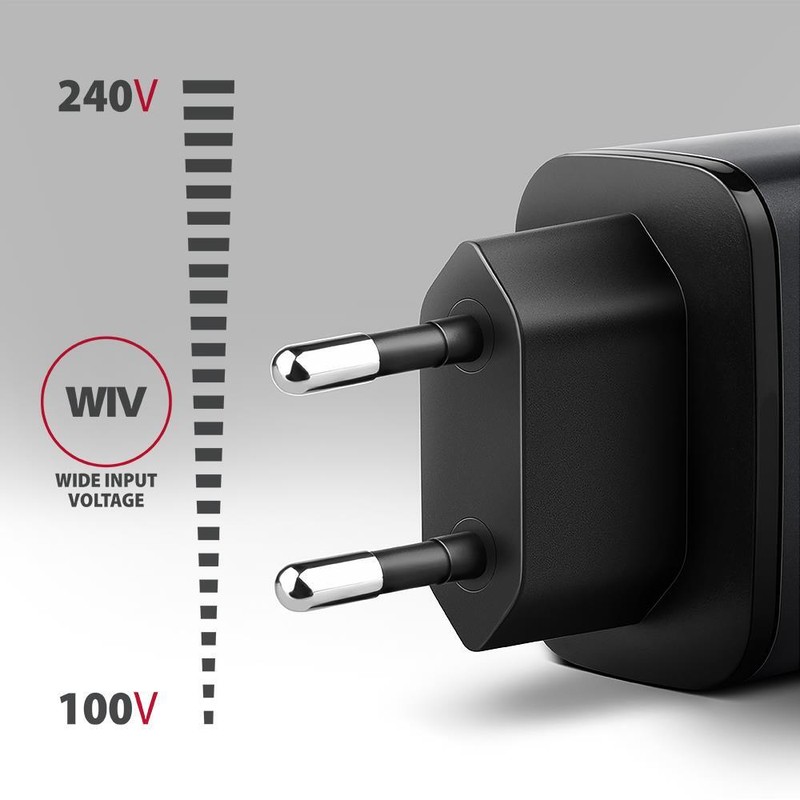

Wide Input Voltage - supports a broad input voltage range, protecting the adapter from undervoltage and overvoltage and allowing use with different national power standards.
Automatic Intelligent Communication - automatically detects the connected device to select optimal charging parameters.
Constant Output Current - maintains stable current to prevent output power fluctuations and ensure safe charging.

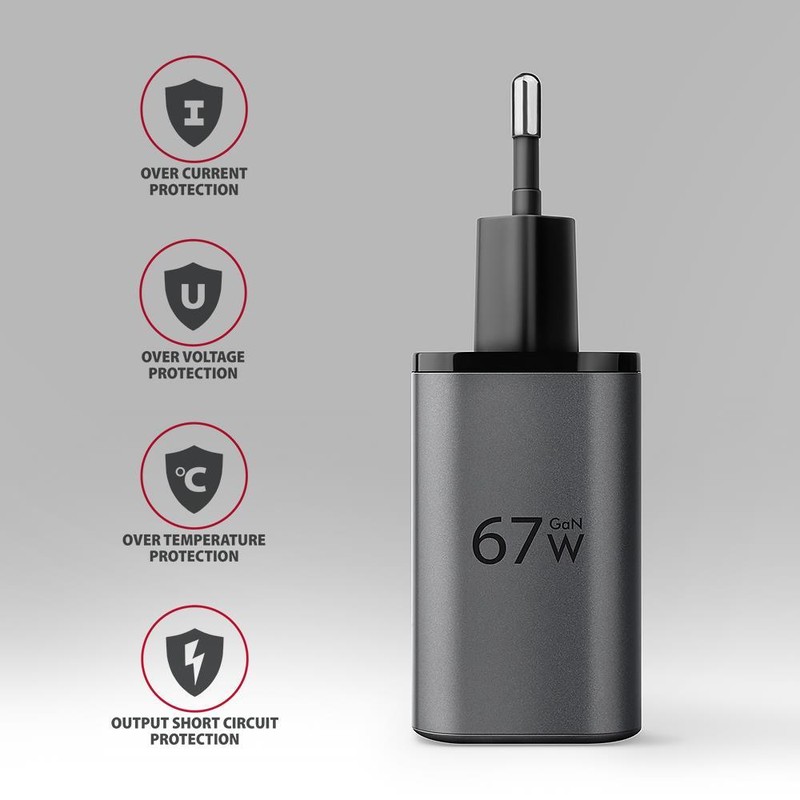

Comprehensive output protection: OCP, OVP, OTP, OSP:
Over Current Protection — safeguards against current overload.
Over Voltage Protection — protects against output overvoltage.
Over Temperature Protection — prevents adapter overheating.
Output Short Circuit Protection — protects against short circuit at the output.
Other features:

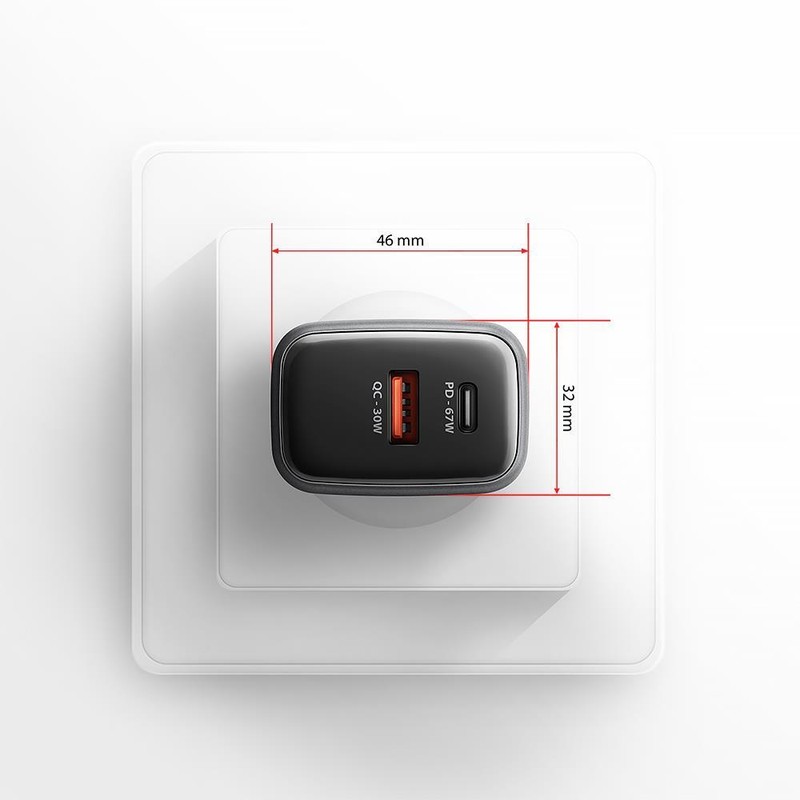

Charger adapter dimensions: 90 x 46 x 32 mm including plug,
Weight: 105 g,
Material: flame-retardant plastic.
Package includes:
Gray wall charger,
Multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
Packed in a cardboard box with a hanging hole.
Techical details
- 2
- 1
- 1 x USB (Type C)
- 1 x USB
