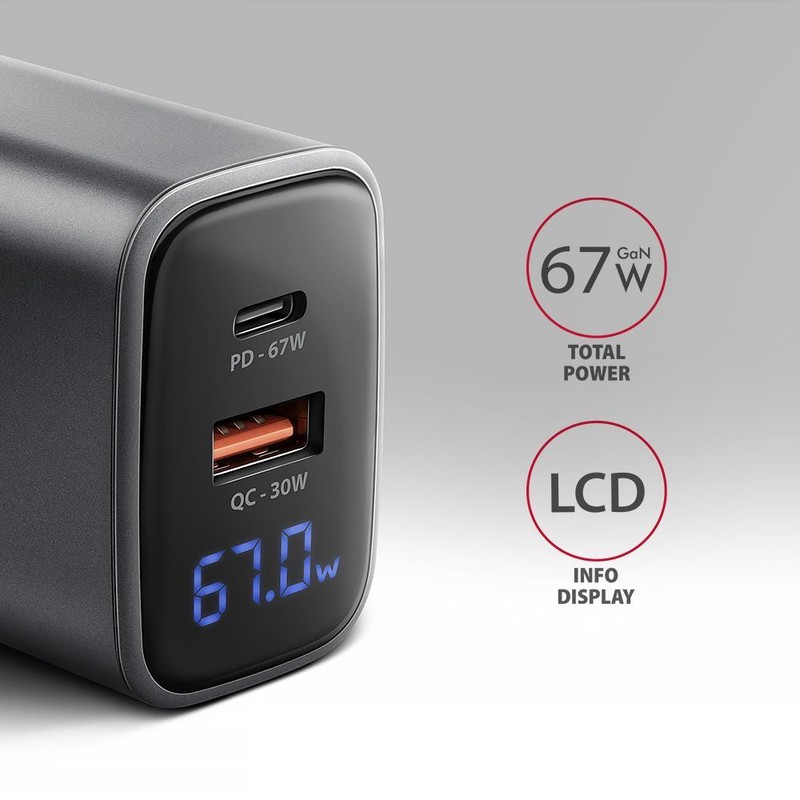

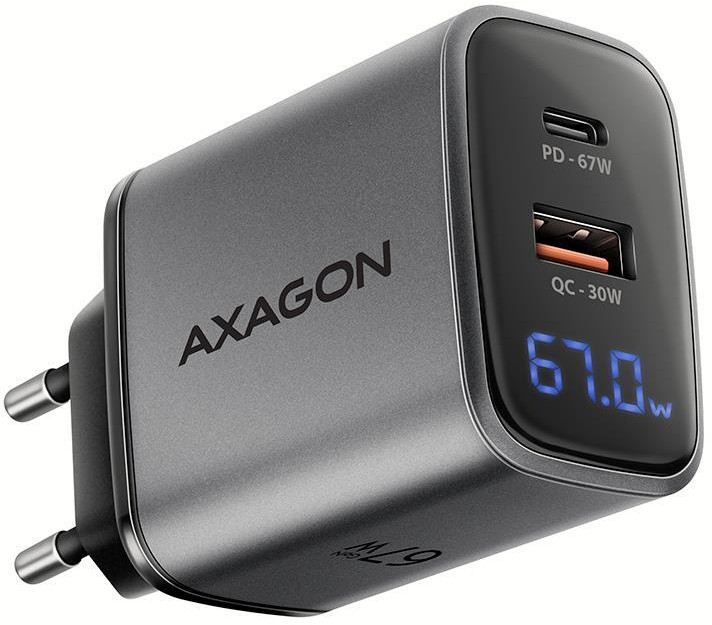

Axagon ACU-PQ67D PD3.0 & QC4+ 67W GaN 2-port USB charger
- Wattage: 67 W
- Number of ports: 2; 1
The AXAGON ACU-PQ67D GaN travel wall charger enables fast charging of up to two mobile devices at the same time. With a total output power of 67W, this charger can recharge laptops, tablets, phones, and other mobile devices at the highest possible speed. It features both a standard USB-A connector and a reversible USB-C connector. The clear LCD display shows the current charging power.
Its compact size and high performance are made possible by new GaN technology. Components made from Gallium Nitride operate with high efficiency, providing high power output in a small form factor. The charger is equipped with a Power Delivery 3.0 / Quick Charge 4+ USB Type-C output and a Quick Charge 3.0 USB Type-A output, supporting fast charging not only for smartphones and tablets, but also for laptops.
Quick Charge 4+ technology enables up to 4x faster phone charging compared to a standard USB charger. Power Delivery 3.0 supports fast charging for modern phones and also allows for 67W laptop charging.
Apple devices are supported for fast charging, with the maximum power depending on the model: iPhone 12-15 support charging up to 20W, iPhone 16 and 16 Pro up to 24W, iPhone 13 Pro to 15 Pro models and iPhone 17 up to 27W, iPhone 16 Pro Max up to 30W, and iPhone 17 Pro and Pro Max up to 40W. The charger is also compatible with iPads and Apple MacBook Air and Pro laptops.
Samsung Galaxy phones support Super Fast Charging up to 25W (SFC) for Galaxy S20-S25 series and foldable Z Fold and Z Flip models. Selected Galaxy Ultra models and Galaxy Tab tablets support even faster charging up to 45W (SFC 2.0).
Support also extends to other brands such as Motorola, Google Pixel, Xiaomi, Honor, Oppo, OnePlus, Realme, and other common phones and tablets. The charger is also suitable for charging laptops with PD 3.0 technology up to 67W, including brands like Lenovo, HP, Dell, Acer, Asus, and more.
An advanced output protection system keeps connected devices safe from damage. The charger's functions also ensure detection of the connected device and automatic selection of the optimal charging speed and process.
The charger's body has an ergonomic shape and compact size. Compared to conventional charging adapters with similar parameters, this charger is up to half the size. The combination of small dimensions from GaN technology and a wide input voltage range makes it an ideal travel companion. The integrated LCD display clearly shows the current charging power in watts in real time, so you can easily confirm that your connected device is drawing fast charging power.
Input:
Input voltage AC 100V-240V / 1.8A / 50-60Hz (WIV function), supports multiple national power standards
Two-pin Euro plug—integrated into the adapter body
Outputs:
USB-A port QC (phones) max. 30W: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
Charging technologies: QC 3.0, QC 2.0, AFC, SCP, FCP, SMART, Apple 2.4A
USB-C port PD (laptops, phones) max. 67W: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.35A, PPS: 3.3-11V/5A
Charging technologies: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, SMART, Apple PD

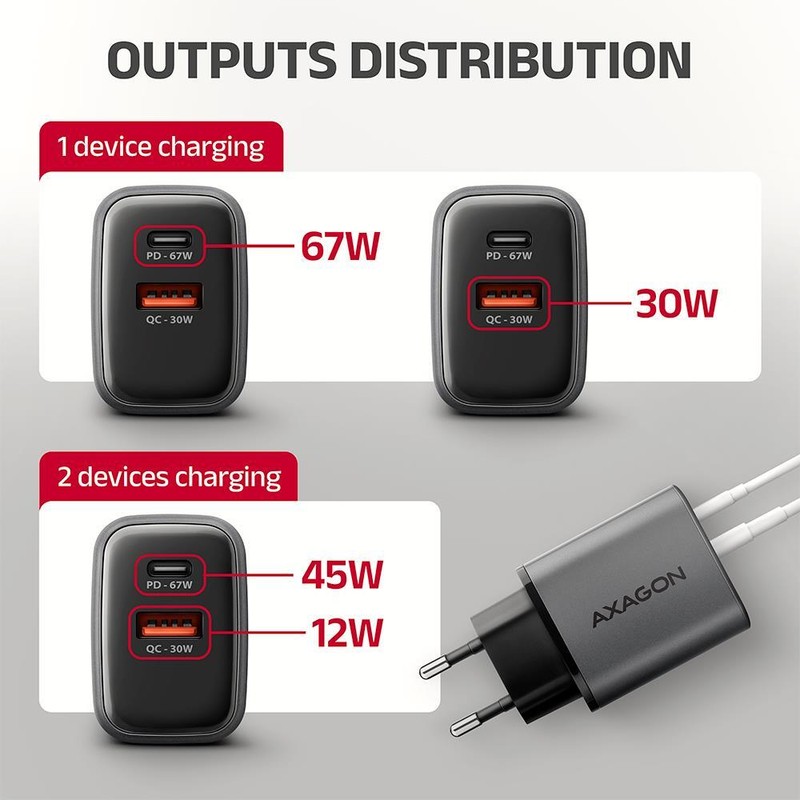

Maximum charger output when using multiple ports:
2 devices connected simultaneously
USB-C port PD = 45W MAX
USB-A port QC = 12W MAX
Note: When charging multiple devices, the devices share the available power. The allocated power may change during charging.

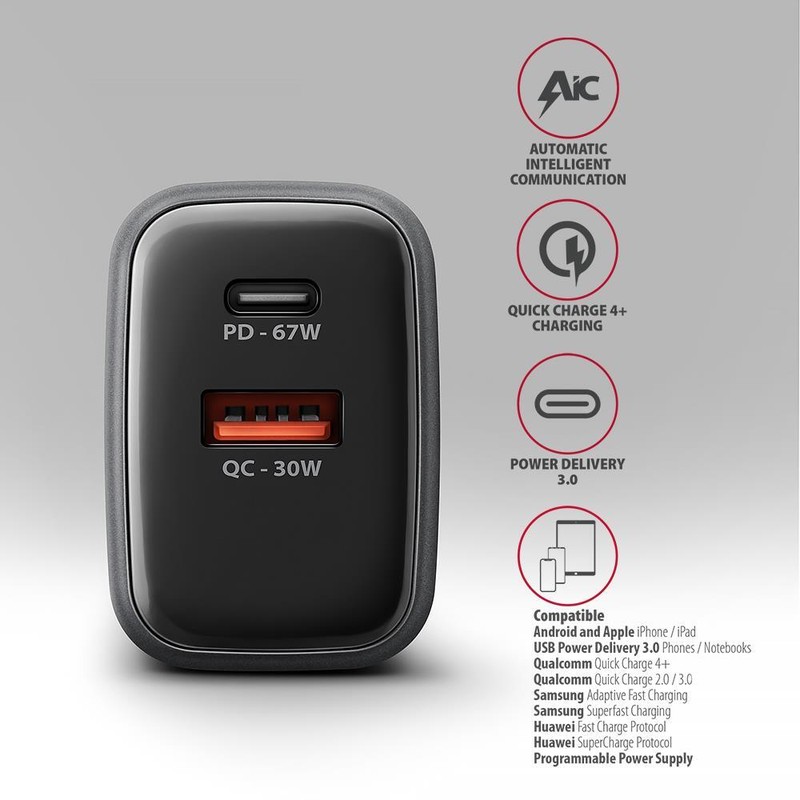

Supported charging technologies:
Standard charging for all devices supporting 5V and charging for Apple iPhone 5, 6, SE, 7.
SMART – charging up to 5V/4.5A, Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A), and Apple 2.4A (iPad).
FCP – fast charging with Huawei Fast Charge Protocol.
SCP – fast charging up to 25W with Huawei SuperCharge Protocol.
AFC – fast charging with Samsung Adaptive Fast Charging protocol.
SFC – fast charging with Samsung Super Fast Charging and Super Fast Charging 2.0.
QC – fast charging with Qualcomm Quick Charge 2.0, 3.0, and 4+.
PPS – fast charging with the Programmable Power Supply protocol (part of USB PD 3.0 and QC4+).
PD – fast charging with USB Power Delivery 2.0 and 3.0.
Examples of supported phones, tablets, and laptops:
SFC—fast charging (up to 25W) for Samsung Galaxy S20, S21, S22, S23, S24, S25 series, Note 10, 20 series, Z Fold 2-7 series, Z Flip 3-7 series.
SFC 2.0—fast charging (up to 45W) for Samsung Galaxy S20-S25 Ultra, Tab S7+, Tab S8+, Tab S9+, Tab S10+, Tab S8 Ultra, Tab S9 Ultra, Tab S10 Ultra
PD—fast charging for Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max.
PD—fast charging (up to 20W) for Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus, 15, 15 Plus, 16 Plus
PD—fast charging (up to 24W) for iPhone 16e, iPhone 16, iPhone 16 Pro
PD—fast charging (up to 27W) for Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max, 15 Pro, 15 Pro Max, iPhone 17
PD—fast charging (up to 30W) for iPhone 16 Pro Max
PD—fast charging (up to 40W) for iPhone 17 Pro, 17 Pro Max
PD—fast charging (up to 67W) for laptops from Lenovo, HP, Dell, Acer, Asus, Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro, and more.
The charger supports WIV, AIC, and CC functions:

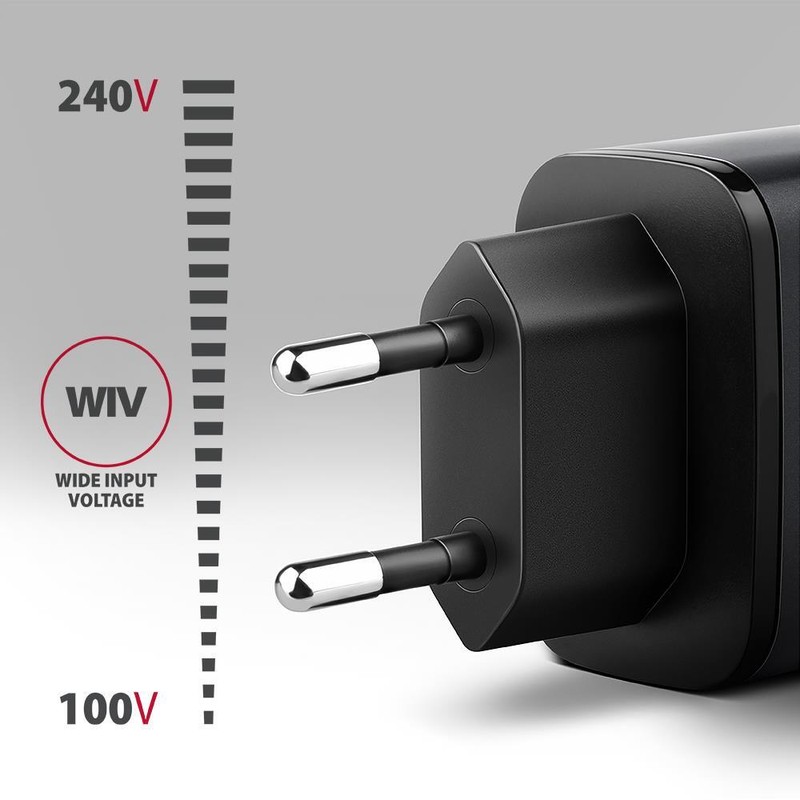

Wide Input Voltage—wide input range function protects the adapter from under- and over-voltage at the input and allows usage with different national standards.
Automatic Intelligent Communication—automatic detection of the connected device to select optimal charging parameters.
Constant Output Current—constant current function prevents output power fluctuations and ensures stable charging.

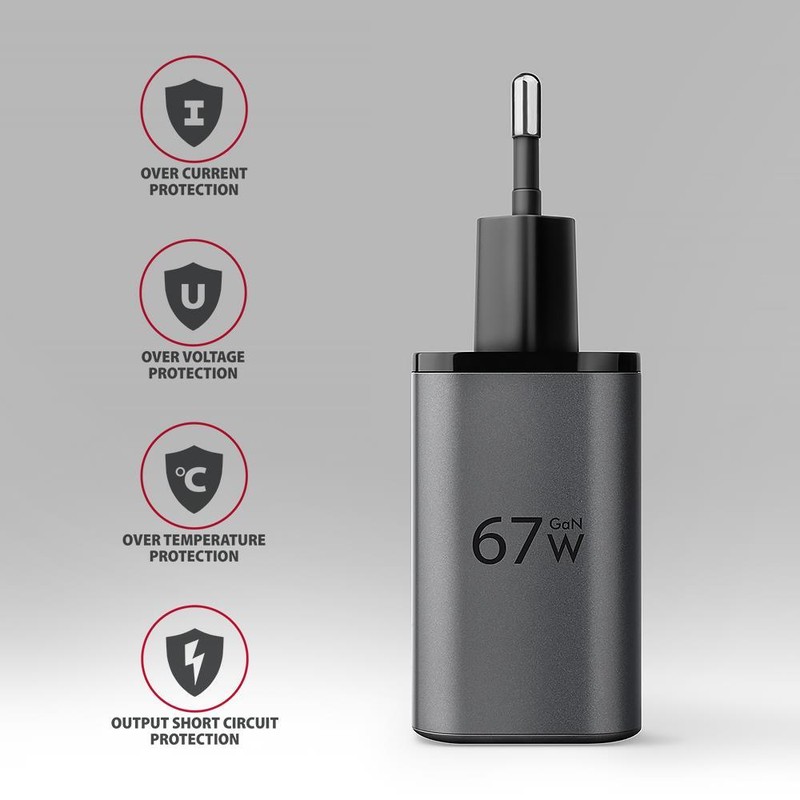

Comprehensive output protection: OCP, OVP, OTP, OSP:
Over Current Protection—output protection against current overload.
Over Voltage Protection—output overvoltage protection.
Over Temperature Protection—protection against adapter overheating.
Output Short Circuit protection—protection against output short circuit.

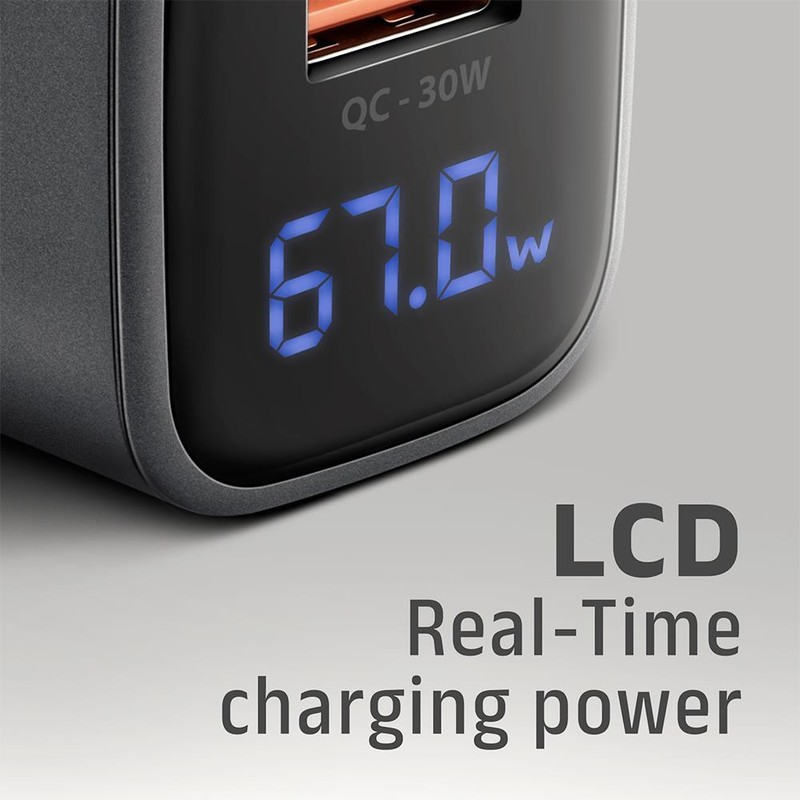

The LCD display shows:
Current charging power in watts (W).
Other features:
Charger adapter dimensions: 90 x 46 x 32 mm including plug
Weight: 105 g
Material: flame-retardant plastic
Package contains:
Gray wall charger
Multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA
Packed in a cardboard box with a hanging hole.
Techical details
- 2
- 1
- 1 x USB (Type C)
- 1 x USB
