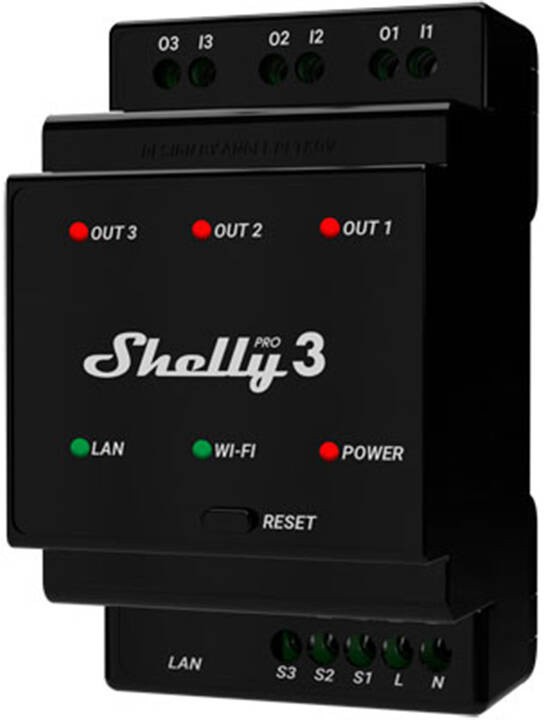

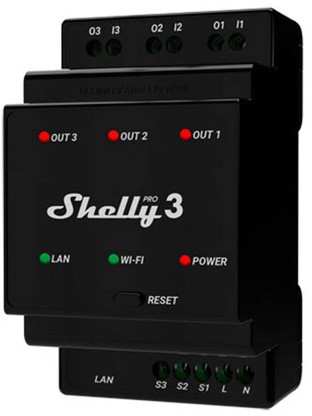

DIN Rail Smart Switch Shelly Pro 3 with dry contacts, 3 channels
3-Channel DIN Rail Relay Shelly Pro 3 WiFi
Shelly Pro 3 is an advanced DIN rail relay with three independent channels. Each channel supports a load of up to 16 A, with a total capacity of up to 48 A. With support for WiFi, LAN, and Bluetooth, it is well-suited for both home and building automation. It also integrates with popular voice assistants like Google Assistant, Samsung SmartThings, and Amazon Alexa, making home control even more convenient. Equipped with potential-free contacts, it provides great flexibility in handling various voltages and offers a wide range of possibilities in home automation. Furthermore, scripting features allow the creation of custom automation scenes based on various events, such as weather forecasts.
Many Possibilities
Gain full control over your home with Shelly Pro 3. It excels in various applications, allowing you to remotely control lighting in your home, safely lock and unlock doors, adjust the bathroom fan's operation based on detected motion, automate your pool pump, or control garden irrigation. With Shelly Pro 3, your home will become even smarter!
| Manufacturer | Shelly |
|---|---|
| Model | SPSW-003XE16EU |
| AC Power Supply Voltage | 110 - 240 V |
| Power Consumption | < 3 W |
| Max AC Switching Voltage | 240 V |
| Max DC Switching Voltage | 30 V |
| Max AC Switching Current | 16 A per channel, 48 A total |
| Max DC Switching Current | 16 A per channel, 48 A total |
| Internal Temperature Sensor | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Range | Up to 30 m indoors and up to 50 m outdoors |
| Bluetooth Protocol | 4.2 |
| Bluetooth Range | Up to 10 m indoors and up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash Memory | 8 MB |
| Dimensions | 96 x 53 x 59 ±0.5 mm |
| Mounting | DIN Rail |
| Housing Material | Plastic |
| Ambient Operating Temperature | From -20°C to +40°C |
| Humidity | From 30% to 70% RH |
| Maximum Altitude | 2000 m |
