AXAGON ACU-DPQ65W 1x USB-A / 2x USB-C, PD 3.0 / QC4+ / PPS, 65W, weiß
- Puudub info komplektis oleva laadija ja/või vahelduvvooluadapteri kohta. Täpsema info saamiseks võite pöörduda klienditeeninduse poole.
- Seade toetab USB Power Delivery tüüpi kiirlaadmist.
- Võimsus: 65; 30
- Pesade kogus: 3

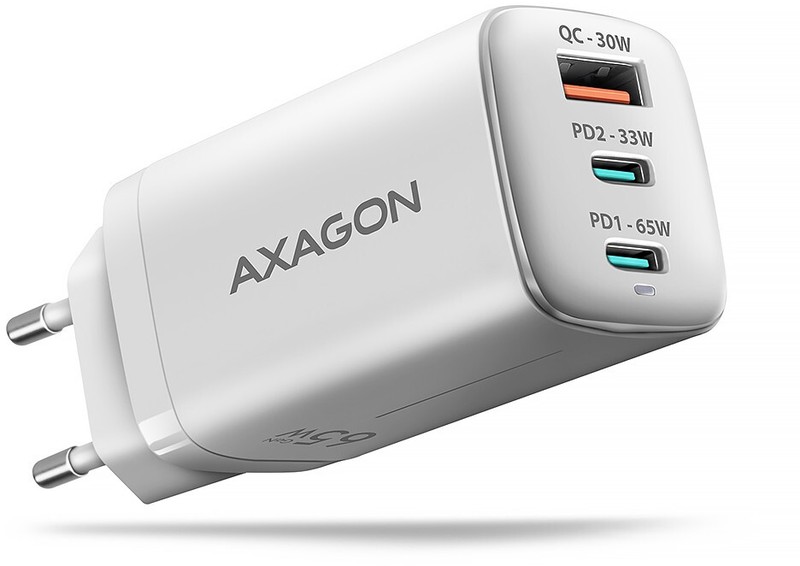

The AXAGON ACU-DPQ65W GaN travel wall charger enables fast charging of up to three mobile devices at the same time. With 65W of total power, the charger charges notebooks, phones and other mobile devices at the highest possible speed. The adapter offers a standard USB-A connector, but also two double-sided USB-C connectors.
Compact size and high performance is given by the new GaN technology used. The components used with Galium Nitride work with high efficiency, which allows you to achieve high performance with a small size. The charger is equipped with two Power Delivery 3.0 / Quick Charge 4+ USB Type-C outputs and one Quick Charge 3.0 USB Type-A output, enabling fast charging of not only smartphones and tablets, but also laptops.
The Quick Charge 4+ technology allows up to 4 times faster charging of phones than a standard USB charger. Power Delivery 3.0 technology not only supports charging of modern phones, but also enables 65W PD charging of powerful laptops.
The charger supports 20W PD charging for iPhone 12, 13, 14 and 15 and also offers 27W PD charging for iPhone 13 Pro, 14 Pro, 15 Pro and their Pro Max models. In addition, it supports 25W SFC charging for Samsung Galaxy S20 - S24, Note and Z Fold series and also offers 45W SFC 2.0 charging for Samsung Galaxy S20 - S24 Ultra, Tab S7+ - S9+, Tab S8 - S9 Ultra.
The adapter is also compatible with other fast phone charging standards such as Apple iPhone, iPad, Samsung, Huawei, Honor, Xiaomi, as well as the Power Delivery 3.0 standard for charging Apple MacBook, Lenovo, Asus, HP, Dell and other laptops.
The advanced protection system at the charging adapter output protects the device being charged from damage. The charger function also detects the device being charged and selects the optimal charging speed and progress.
The body of the power adapter has a pleasant shape and size. Compared to classic charging adapters with the same parameters, the size of this charger is up to half the size. The combination of small dimensions, achieved with GaN technology and a wide range of input voltages, makes the charger an ideal travel helper. The operation of the charger is indicated by an elegant LED.
Input:
input voltage AC 100V-240V / 1.5A / 50-60 Hz (WIV function) supports multiple national power standards
two-pin euro plug - integrated in the body of the charger

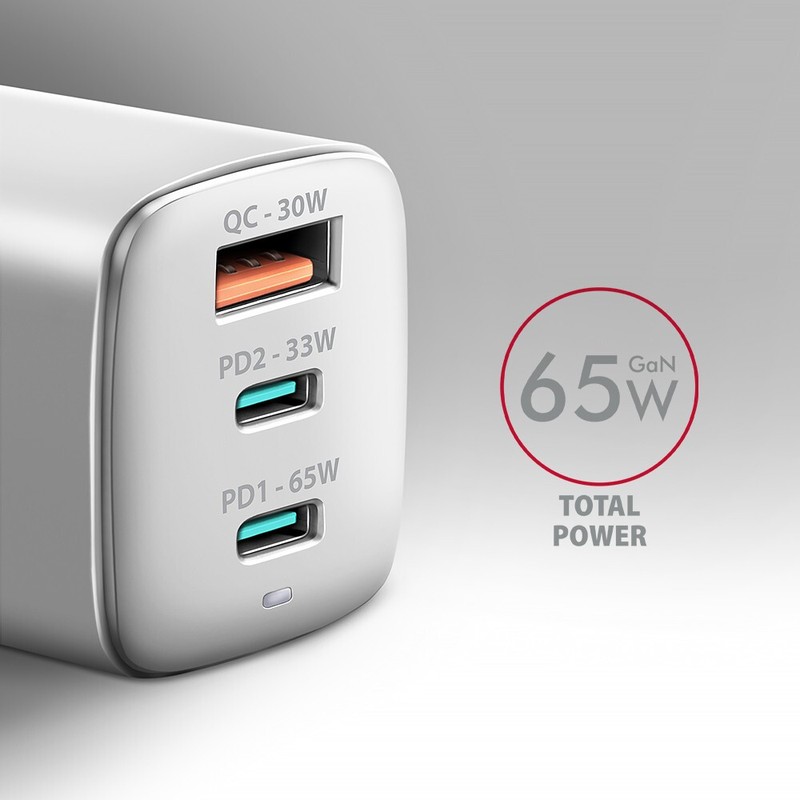

Outputs:
USB-A port QC (phones) max. 30W: 4.5V/5A, 5V/4.5A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A
Charging technology: QC 3.0, QC 2.0, AFC, SCP, FCP, PE+, SMART, Apple 2.4A
USB-C port PD2 (phones) max. 33W: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, PPS: 3.3-11V/3A
Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PD
USB-C port PD1 (laptops, phones) max. 65W:5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, PPS: 3.3-11V/5A
Charging technology: PD 3.0, PD 2.0, PPS, QC4+, QC 3.0, QC 2.0, SFC 2.0, SFC, AFC, SCP, FCP, PE+, SMART, Apple PD
Maximum performance using multiple ports:
maximum power QC + PD2 24W, SMART mode charging is used (max. 5V/4.5A)
QC + PD1 maximum power 63W
PD1 + PD2 maximum power 63W
QC + PD1 + PD2 maximum power 60W
total maximum power 65W
total maximum current 5A
Supported charging technologies:
Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging.
SMART - charging max. 5V/4.5A, Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A) and Apple 2.4A (iPad).
PE+ - quick charging using MediaTek Pump Express+ and Pump Express+ 2.0 protocol
FCP - quick charging using Huawei Fast Charge Protocol.
SCP - quick charging (up to 20W) using Huawei SuperCharge Protocol.
AFC - quick charging using Samsung Adaptive Fast Charging protocol.
SFC - quick charging using Samsung Super Fast Charging and Super Fast Charging 2.0 protocol.
QC - quick charging using Qualcomm Quick Charge 2.0, Quick Charge 3.0 and Quick Charge 4+ protocols.
PPS - quick charging using Programmable Power Supply protocol (part of USB PD 3.0 and QC4+).
PD - quick charging using USB Power Delivery 2.0 and Power Delivery 3.0 protocol.
Examples of supported phones, tablets and laptops:
SFC - quick charging (up to 25W) of Samsung Galaxy S20, S21, S22, S23, S24 series, Note 10, 20 series, Z Fold 2, 3, 4 series.
SFC 2.0 - quick charging (up to 45W) of Samsung Galaxy S20, S21, S22, S23, S24 Ultra, Tab S7+, Tab S8+, Tab S9+, Tab S8 Ultra, Tab S9 Ultra.
PD - quick charging of Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max phone.
PD - quick charging (up to 20W) Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus, 15, 15 Plus phone.
PD - quick charging (up to 27W) Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max, 15 Pro, 15 Pro Max phone.
PD - quick charging (up to 65W) of Lenovo, HP, Dell, Acer, Asus, Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro and others notebooks.

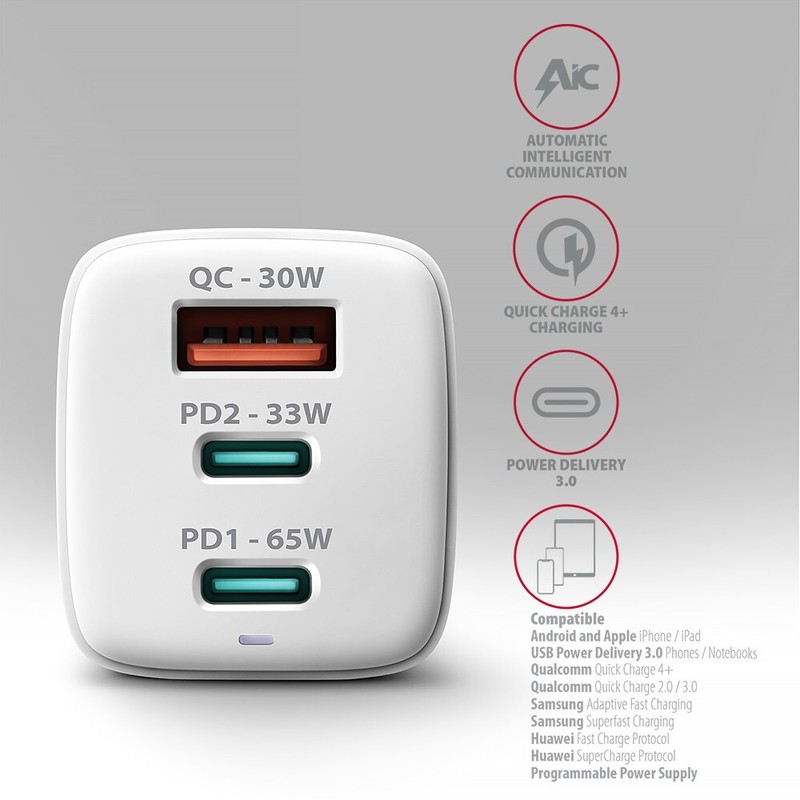

The charger supports WIV, AIC and CC functions:

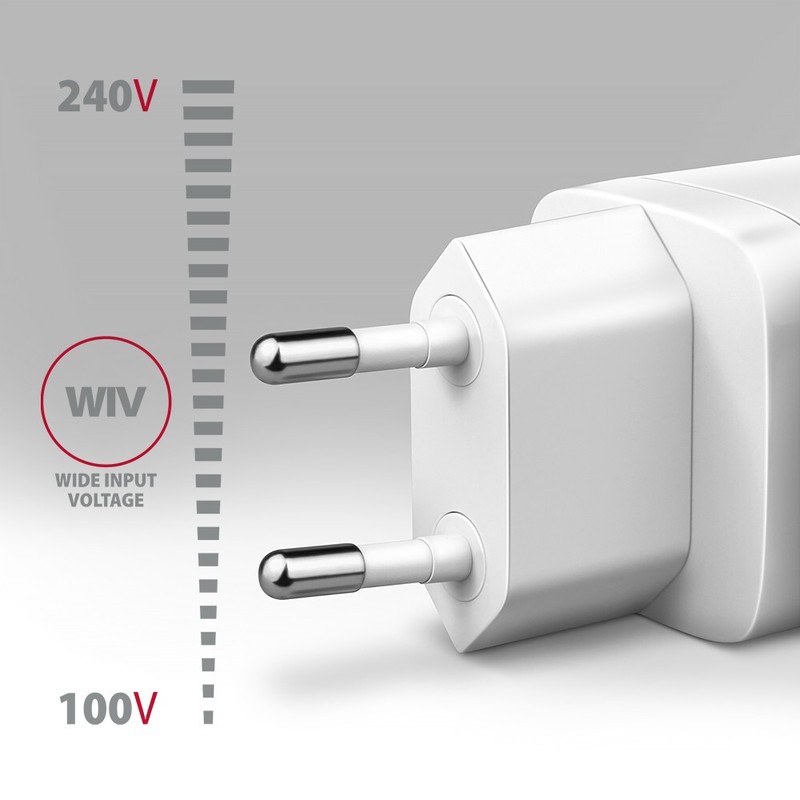

Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more national power standards.
Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.
Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging.

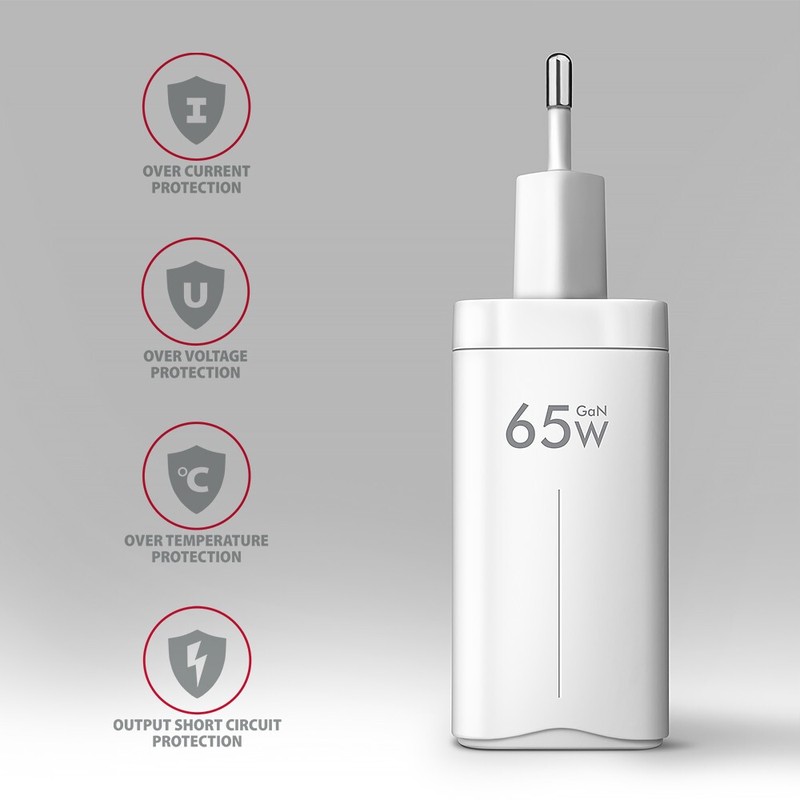

Complex output protection: OCP, OVP, OTP, OSP:
Over Current Protection. Protection of output against current overload.
Over Voltage Protection. Protection against overvoltage at the output.
Over Temperature Protection. Protection against overheating of the adapter.
Output Short Circuit protection. Short circuit protection at the output.
Other features:

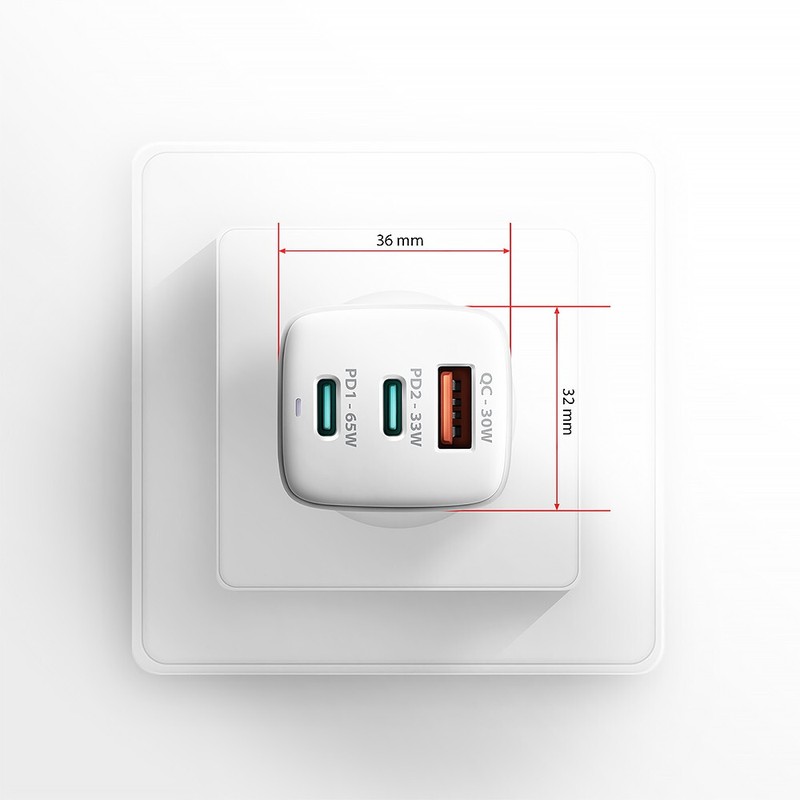

dimensions of the charger body 103 x 36 x 32mm including a plug,
weight: 118 g,
material: non-flammable plastic.

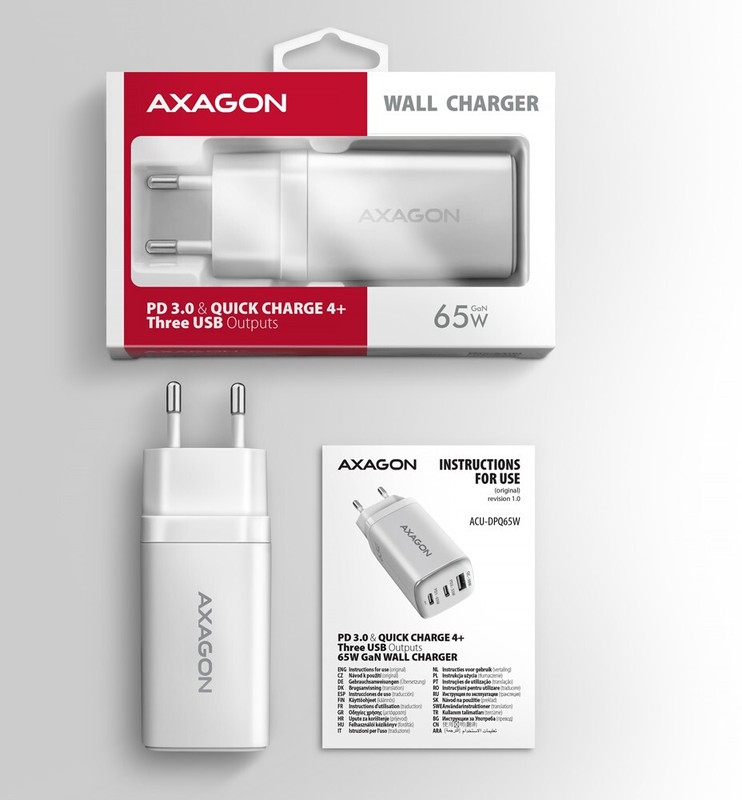

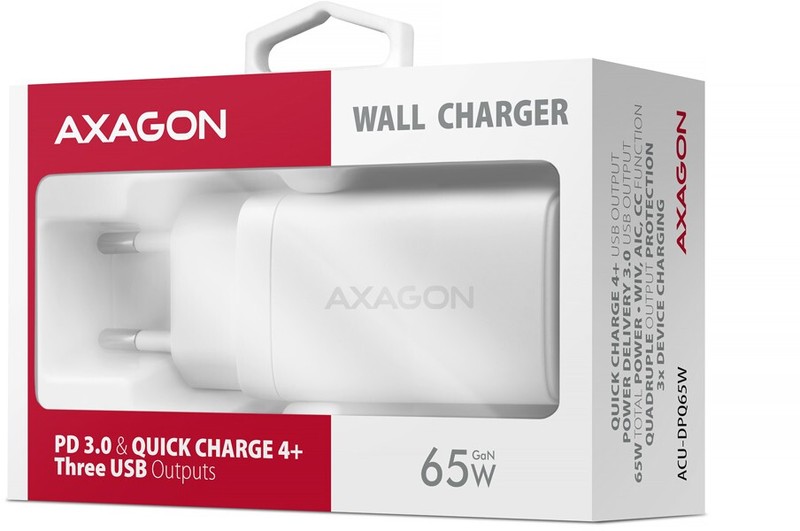

Package contains:
white wall charger,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box with a hanging hole.
