AXAGON Sil wallcharger 2x port (USB-A + USB-C), 30W | ACU-PQ30
- Võimsus: 30
- Pesade kogus: 2 outputs; 2; 1

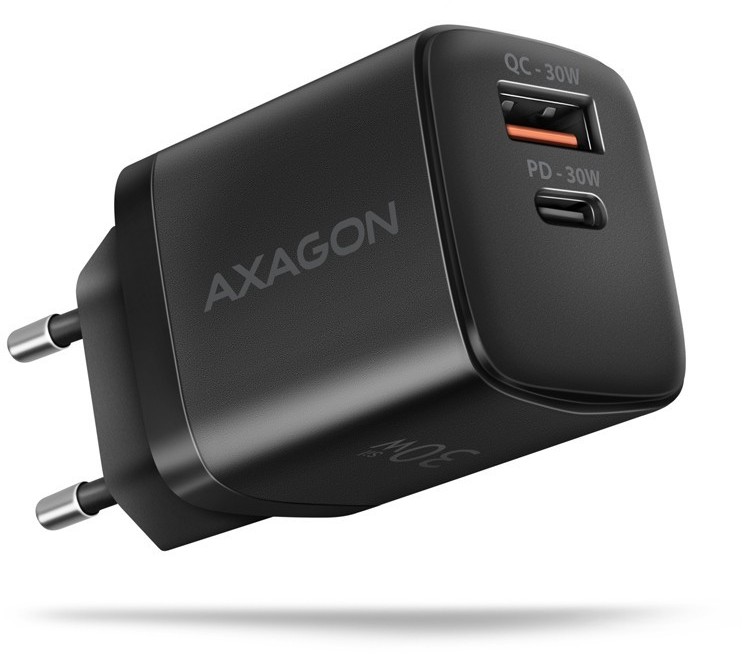

Compact USB wall charger AXAGON ACU-PQ30 Sil for fast charging of up to two mobile devices at a time. With 30W of total power, the charger charges phones and other mobile devices at the highest possible speed. The adapter offers a standard USB-A connector, but also double-sided USB-C connectors.
Compact size and high performance is given by the new Sil technology used. Super silicon uses advanced silicon-based materials. The charger can thus achieve smaller dimensions and at the same time safe, stable and fast charging. The efficiency is thus identical to GaN technology while maintaining a favorable price.
Power Delivery 3.0 / Quick Charge 4+ USB type C output and one Quick Charge 3.0 USB type A output allow fast charging of smartphones and tablets but also charging of smaller laptops. The charger is compatible with fast charging standards for Apple iPhones, iPads, Samsung, Huawei, Honor, Xiaomi, Motorola, Sony, Google and other phones and tablets.
Supports also 20W PD charging for iPhone 12, 13, 14. 27W PD charging for iPhone 13 Pro, 14 Pro and their Pro Max models. 25W SFC charging for Samsung Galaxy S20 - S23, Note, Z Fold series.
The Quick Charge 4+ technology allows up to 4 times faster charging of phones than a standard USB charger. The Power Delivery 3.0 technology provides support for modern phones, but also for charging modern laptops.
The AIC function recognizes the connected device and automatically selects the optimal charging speed, while the CC function ensures steady course of charging. WIV function works with wide range of input voltages, it protects the adapter against undervoltage and input overvoltage, and allows the use of multiple "national power supply standards". The advanced protection system at the charging adapter output protects the device being charged from damage.
The body of the power adapter has a pleasant shape and size. Compared to classic charging adapters with same parameters, the size of the charger is a third smaller. The combination of small dimensions, achieved with Sil technology and a wide range of input voltages, makes the charger an ideal travel helper.
Input:
input voltage AC 100V-240V / 50-60 Hz (WIV function) supports multiple national power standards
two-pin euro plug - integrated in the body of the charger
Outputs:
two outputs
1x USB type A port QC (phones): Quick Charge 3.0: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, SCP: 3.3-5.5V/4A
1x USB type C port PD (notebooks, phones): Power Delivery 3.0, QC4+: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, PPS: 3.3-11V/3A, SCP: 3.3-12V/2,2A
By simultaneous charging from both outputs, SMART charging is used (max. 5V/4A)
maximum power 30W (using QC port)
maximum power 30W (using PD port)
total maximum power 20W (QC port and PD port simultaneously)
total maximum current 4A (QC port and PD port simultaneously)
Supported charging technologies:
USB type A port QC (max. 30W): Fast charging QC2.0, QC3.0, AFC, FCP, SCP, PE+, SMART charging max. 5V/4A
USB type C ports PD (max. 30W): Fast charging PD 2.0, PD 3.0, PPS, QC2.0, QC3.0, QC4+, AFC, SFC, FCP, SCP, PE+, SMART charging max. 5V/4A
The charger charges devices with the following technologies:
Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging.
Smart 5V/4A Qualcomm Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A) and Apple 2.4A (iPad).
QC - quick charging of devices that support Qualcomm Quick Charge 2.0, Quick Charge 3.0 and Quick Charge 4+.
AFC - quick charging of devices that support Samsung Adaptive Fast Charging.
SFC - quick charging of devices that support Samsung Superfast Charging.
FCP - quick charging of devices that support Huawei Fast Charge Protocol.
SCP - quick charging of devices that support Huawei SuperCharge Protocol.
PE+ - quick charging of devices that support MediaTek Pump Express+ and Pump Express+ 2.0.
PPS - charging using the Programmable Power Supply 3.3 protocol - 11V / 3A.
PD - quick charging of devices that support Power Delivery 2.0 and Power Delivery 3.0.
PD - quick charging of Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max phone.
PD - quick charging (up to 20W) of Apple iPhone 12, 12 Mini, 12 Pro, 12 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, 13, 13 Mini, 14, 14 Plus phone.
PD - quick charging (up to 27W) of Apple iPhone 13 Pro, 13 Pro Max, 14 Pro, 14 Pro Max phone.
SFC - quick charging (up to 25W) of Samsung Galaxy S20, S21, S22, S23 series, Note 10, 20 series, Z Fold 2, 3, 4 series phone.
PD - charging (up to 30W) of Apple MacBook Air, MacBook Pro, iPad mini, iPad Air, iPad Pro.
The charger supports WIV, AIC and CC functions:
Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more national power standards.
Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.
Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging.
Complex output protection: OCP, OVP, OTP, OSP:
Over Current Protection. Protection of output against current overload.
Over Voltage Protection. Protection against overvoltage at the output.
Over Temperature Protection. Protection against overheating of the adapter.
Output Short Circuit protection. Short circuit protection at the output.
Other features:

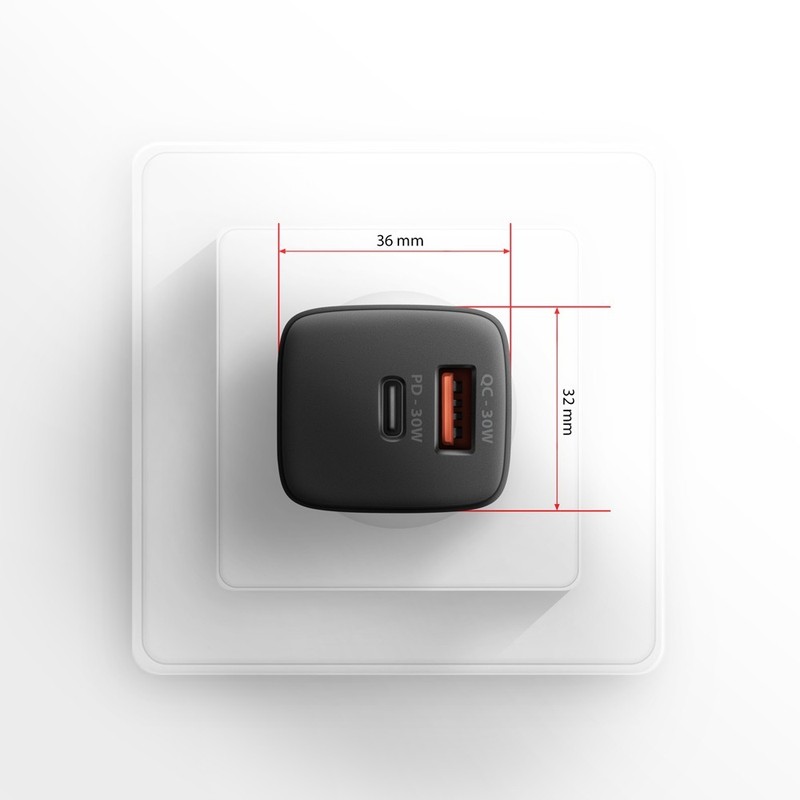

dimensions of the charger body 84 x 36 x 32 mm including a plug,
weight: 60 g,
material: non-flammable plastic.
Package contains:
wall charger,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box with a hanging hole.
Tehnilised detailid
- 2 outputs
- 2
- 1
- 1 x USB (Type C)
- 1 x USB
