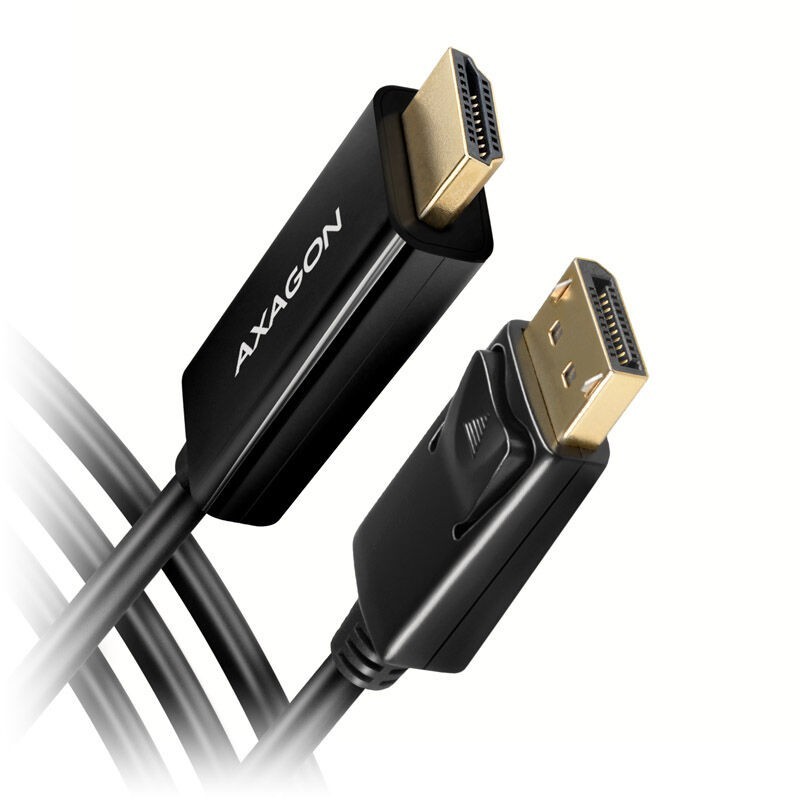

AXAGON RVD-HI14C2 DisplayPort > HDMI 1.4 cable 1.8m 4K/30Hz
- Ühendus: DisplayPort (Male); HDMI Type-A Male
- Pikkus: 1.8
DisplayPort -> HDMI active cable - adapter AXAGON RVD-HI14C2 to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.
The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.
Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. It is an ideal solution - you don't need a HDMI cable and converter. With this active cable everything is integrated into one compact unit.
The cable is only one-way, i.e. DisplayPort to HDMI, not otherwise.
Input:
DisplayPort v1.2
DP male connector with latch (M)
connector latch control button
Output:
HDMI v1.4b
HDMI A (M) male connector
Supported resolutions:
Resolution and frequency depend on monitor and graphics adapter.
max. 4096 x 2160 (19:10) @30Hz DCI 4K
3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) @60Hz WQHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3)
1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
1856 x 1392 (4:3)
1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1536 x 864 (16:9)
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
Other features:
sound transfer support
DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
HPD (Hot-Plug-Detect) support - communication sequence controlling the connection / disconnection of the device while running
HDCP 1.4 and 2.2
support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
power supply via bus - no external power is needed
gold-plated connectors for perfect contact and oxidation limitation
adapter dimensions 45 x 21 x 12 mm
total cable length incl. connector 1.8 m
weight only 70 g
Supported operating systems:
All versions of MS Windows, Mac OS X, Linux and other operating systems.
It is a pure hardware converter, the transfer is provided only by a cable chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.
Package contains:
DisplayPort > HDMI cable length 1.8 m,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Ühenduvus
- DisplayPort (Male)
- HDMI Type-A Male
