AXAGON RVD-VGN DisplayPort -> VGA adapter FullHD, 1920*1200
- Ühendus: DisplayPort male; D-sub 15pin Female
- Pikkus: 0.15 m

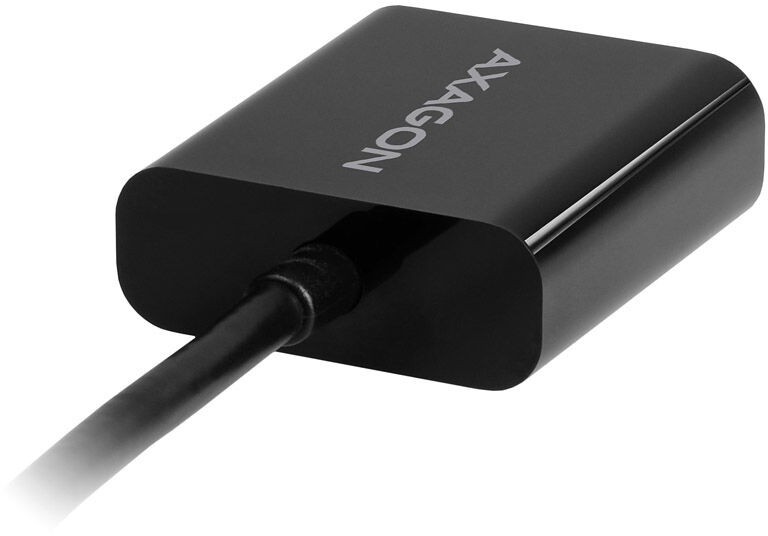

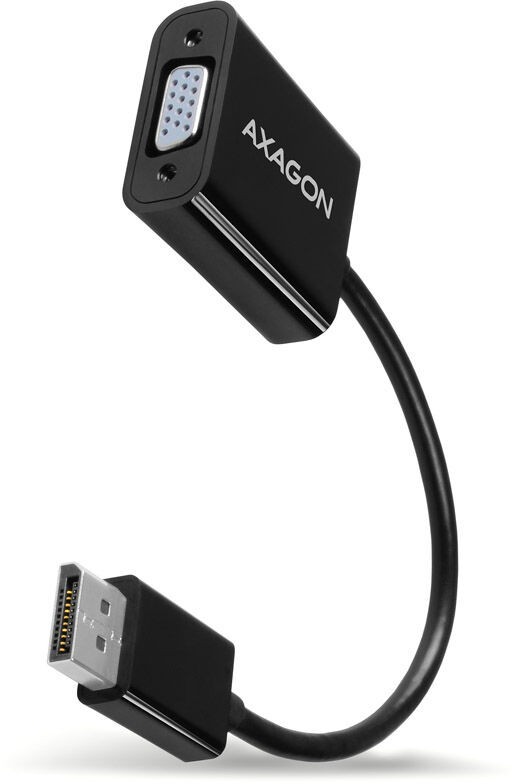

DisplayPort -> VGA active adapter AXAGON RVD-VGN for connecting an older VGA monitor/TV/ projector to a computer or other device with Display Port output.
Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The reduction is only one-way, i.e. DP to VGA converter, not the opposite way.
Input:
DisplayPort 1.1a digital interface
DisplayPort (M) male connector
Output:
Analog VGA interface
D-Sub 15-pin (F) female connector
Supported resolutions:
max. 1920x1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
640 x 480 (4:3) VGA
576i/576p PAL
480i/480p NTSC
Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Other features:
supported modes: mirroring the primary monitor's desktop, extending the primary monitor's desktop, and more,
charging from Displayport input - no external power needed,
Compact dimensions 42 x 37 x 16 mm,
Cable length approx. 16 cm,
Weight 31g,
Operating temperature: 0 ~ 40°C,
Storage temperature: -20 ~ 85°C.
Supported OSs:
All versions of MS Windows, Mac OS X, Linux, Android, Chrome and other operating systems.
This is a purely hardware converter, the conversion is provided by the adapter chip without computer participation, no drivers need to be installed, so compatibility is not dependent on your operating system.
Package contains:
DisplayPort > VGA converter,
printed multilingual manual CZ/DE/DK/ENG/ESP/FIN/FR/GR/HR/HU/IT/NL/PL/PT/RO/RU/SK/SWE/BG/CN/TR/ARA,

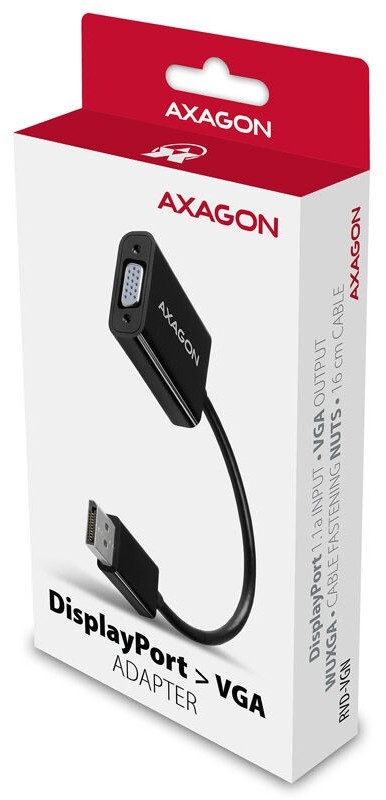

packed in a cardboard box.
