AXAGON RVDM-HI14N Mini DP > HDMI 1.4 adapter 4K/30Hz

Axagon
Tootekood: RVDM-HI14N
  • Ühendus: Mini DisplayPort male; HDMI Type-A Male
  • Pikkus: 0.18 m
Hind
12.55 €

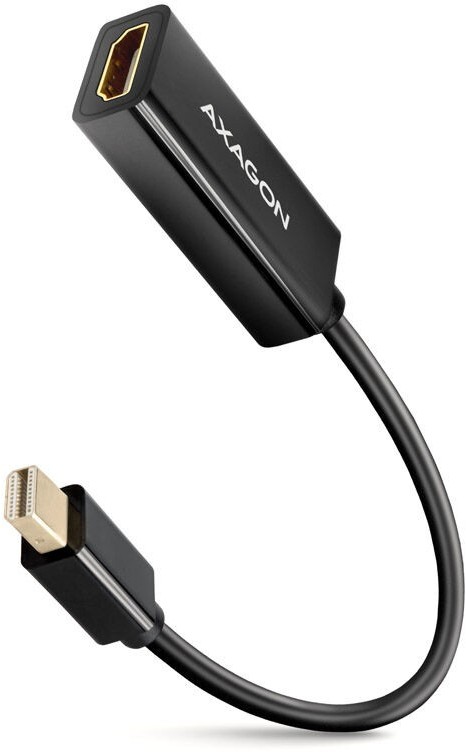

Mini DisplayPort -> HDMI active adapter AXAGON RVDM-HI14N to connect HDMI monitor/TV/projector to the computer with the Mini DisplayPort output.

The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.

Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. This is a convenient solution if you already own an HDMI cable - you only add a reducer.

The adapter is only one-way, i.e. Mini DisplayPort to HDMI, not otherwise.

Input:
Mini DisplayPort v1.2
Mini DP male connector

Output:
HDMI v1.4b
HDMI A (F) female connector

Supported resolutions:
Resolution and frequency depend on monitor, graphics adapter and also cable.
max. 4096 x 2160 (19:10) @30Hz DCI 4K
3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
2560 x 2048 (5:4) QSXGA
2560 x 1920 (4:3)
2560 x 1600 (16:10) WQXGA
2560 x 1440 (16:9) @60Hz WQHD
2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
2048 x 1536 (4:3) QXGA
2048 x 1152 (16:9) QWXGA
1920 x 1440 (4:3)
1920 x 1200 (16:10) WUXGA
1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
1856 x 1392 (4:3)
1792 x 1344 (4:3)
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1536 x 864 (16:9)
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) HD
1360 x 768 (16:9) HD
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA

Other features:
sound transfer support
DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running
HDCP 1.4 and 2.2
support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)
power supply via bus - no external power is needed
gold-plated connectors for perfect contact and oxidation limitation
adapter dimensions 45 x 21 x 12 mm
total cable length incl. connector 18 cm
weight only 17 g

Supported operating systems:
All versions of MS Windows, Mac OS X, Linux and other operating systems.
It is a pure hardware converter, the transfer is provided only by the adapter chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

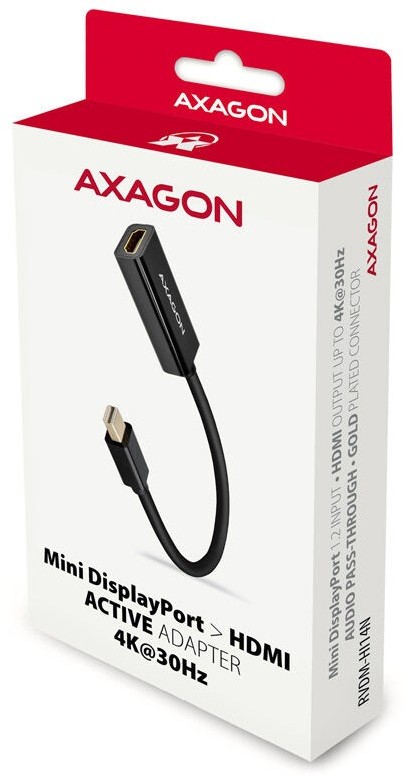

Package contains:
Mini DisplayPort > HDMI adapter,
printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.

Ühenduvus

ÜhendusMini DisplayPort male; HDMI Type-A Male
Pikkus0.18 m
