AXAGON RVH-VGN, HDMI -> VGA Reduction / Adapter, FullHD
- Ühendus: D-sub 15pin Female; HDMI Type-A Male
- Pikkus: 0.15 m

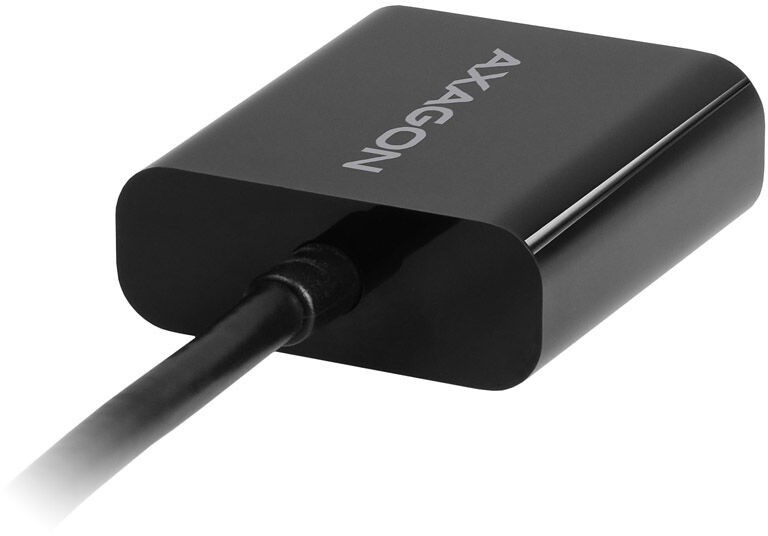

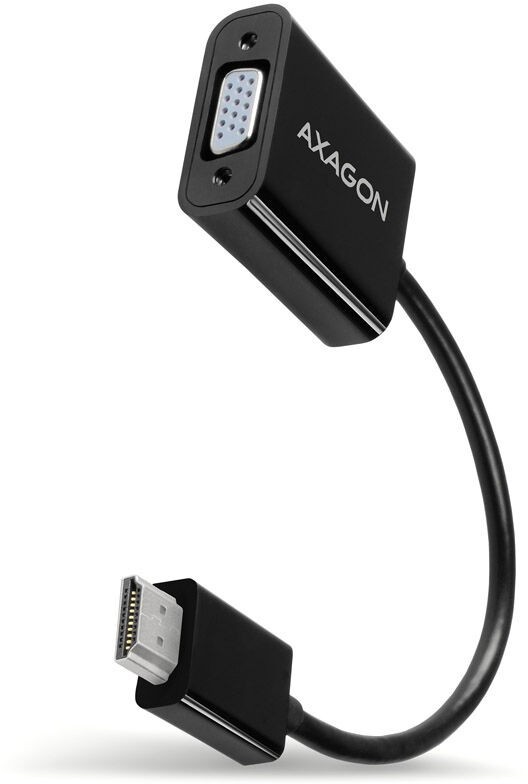

HDMI -> VGA active adapter AXAGON RVH-VGN for connecting an older VGA monitor / TV / projector to a computer or other device with HDMI output. It can also be used with set-top boxes or Xbox and PlayStation consoles.
Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.
The innovative design of the adapter electronics ensures high-quality clear and sharp images.
The reduction is only one-way, i.e. HDMI to VGA converter, not the opposite way.
Input:
HDMI v1.4b digital interface
HDMI A (M) male
Output:
Analog VGA interface
D-Sub 15-pin (F) female connector
Supported resolutions:
max. 1920x1200 (16:10) WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA
640 x 480 (4:3) VGA
576i/576p PAL
480i/480p NTSC
Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Other features:
HDCP 1.4 copy protection support for video and audio content,
supported modes: mirroring the primary monitor's desktop, extending the primary monitor's desktop, and more,
charging from HDMI input - no external power needed,
Compact dimensions 42 x 38 x 16 mm,
Cable length approx. 17 cm,
Weight 27g,
Operating temperature: 0 ~ 40°C,
Storage temperature: -20 ~ 85°C.
Supported OSs:
All versions of MS Windows, Mac OS X, Linux, Android, Chrome and other operating systems.
This is a purely hardware converter, the conversion is provided by the adapter chip without computer participation, no drivers need to be installed, so compatibility is not dependent on your operating system.

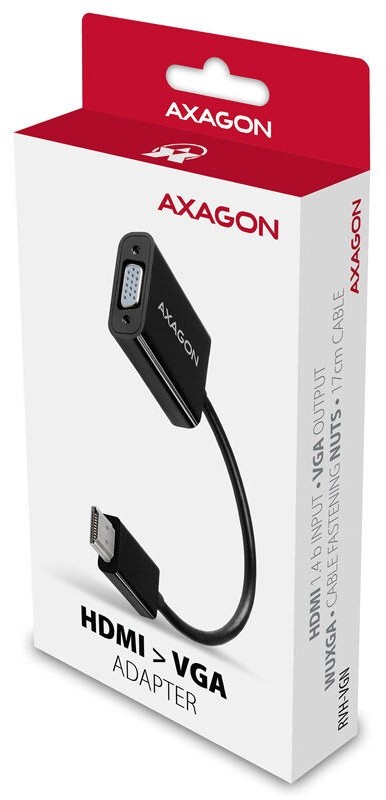

Package contains:
HDMI > VGA converter,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
Ühenduvus
- D-sub 15pin Female
- HDMI Type-A Male
