Adapter PoE+ 802.3at, max. 55V 60W Gigabit 10/100/1000Mbps, active

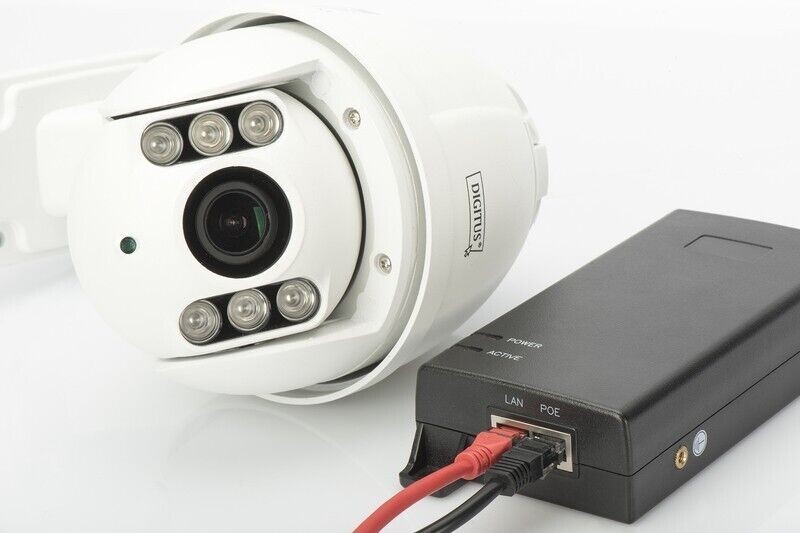

The power supply is used to supply voltage via a twisted pair cable directly to devices that support the PoE+ standard, eg IP cameras, access points, IP telephones.

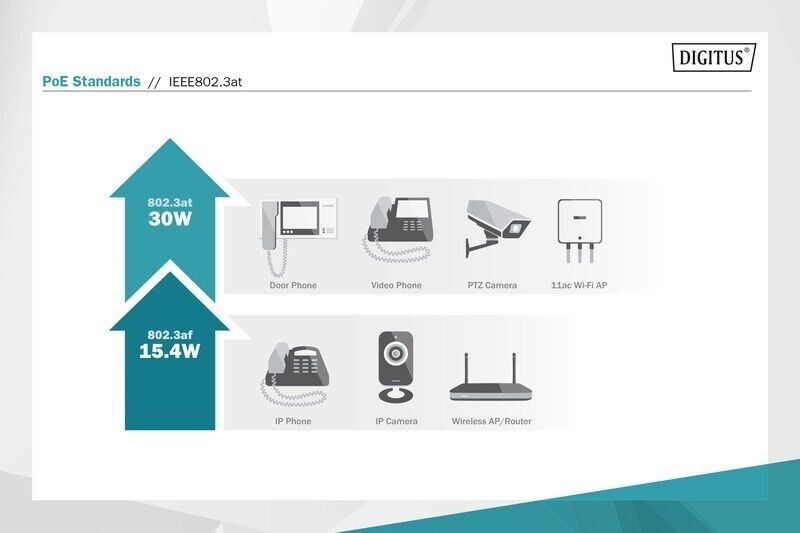

• Compatibility with 802.3at Ultra PoE+ and 802.3af PoE standards
• Simple connection of the power cable and data cable in one cable
• Supports all PoE devices (eg access points, VoIP phones and IP cameras) compatible with IEEE 802.3af
• The transmission range is up to 100 m and with an additional PoE extension cable up to 400 m
• Own consumption: 1.6 W max.
• Own consumption (full load): 10 W max.

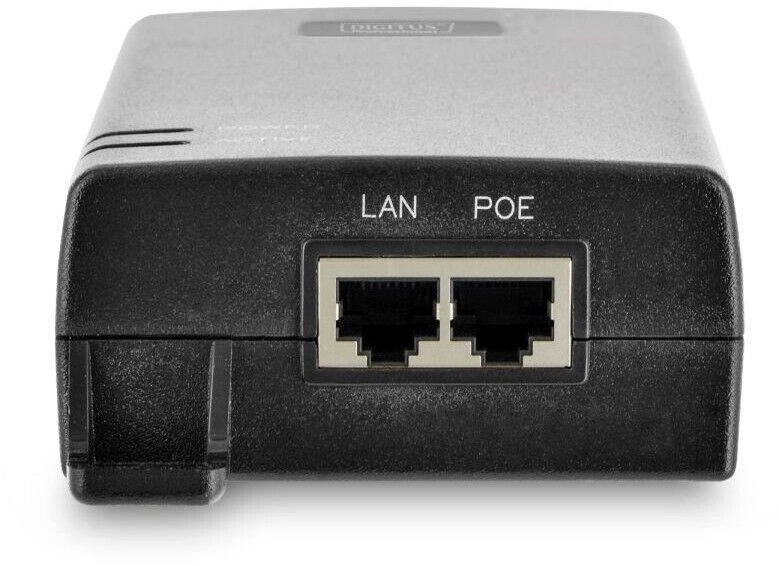

• Input: 1 x RJ-45 (data)
• Output: 1 x RJ-45 (current and data)
• Data output: 100/100/1000 Mbit/s Gigabit
• Output power: 60 watts
• Output voltage: 55 V DC
• Working temperature range: -10°C to +45°C
