STC

650

Rigid Reliability, Extreme Silence

COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.

Power Conversion Efficiency

Up to 86% efficiency under 230V. A guaranteed highly reliablepower supply.

Active Power Factor Correction

High power conversion efficiency. PF value up to 99%, provides clean and reliable power

120mm Extreme Temperature Control

Using COUGAR’s exclusive 120mm silent fan, the advancedframe increase the concentration of air-flow and its fancurvature has been fine-tuned to reduce vibration at any loads,helping you enjoy a quieter gaming experience.

Assigned Japanese Components

STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.

The Japanese polypropylene capacitor minimize thenoise during the voltage transition.

Features

Active Power Factor Correction (Active PFC)

PFC value up to 99%, provides clean and reliable power.

Compatible with the Newest Components

Created for use with multi-core CPU and PCI express 3.0graphics cards with 8(6+2) pin PCI-e connector.

Superior Fan Curve Tuning

Advanced technology for noise minimization

105°C Japanese Standby Capacitors

Reliable and durable components that extend the PSU’suseful life.

Strong Safeguards : OCP, OPP, OVP, UVP & SCP

Maximum safety for your key system components

Connector Color Cables	MB	CPU	P-ATA	S-ATA	PCI-E
Pin	24(20+4)	8(4+4)	4	5	8(6+2)
Length (mm)	450	650	450
STC 400	1	1	1	4	1
STC 500	1	1	2	5	2
STC 550	1	1	2	5	2
STC 600	1	1	2	6	2
STC 650	1	1	2	6	2
STC 700	1	2	3	8	4
STC 750	1	1	3	6	4

User Manual

STC 550 / 650

Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

STC

650

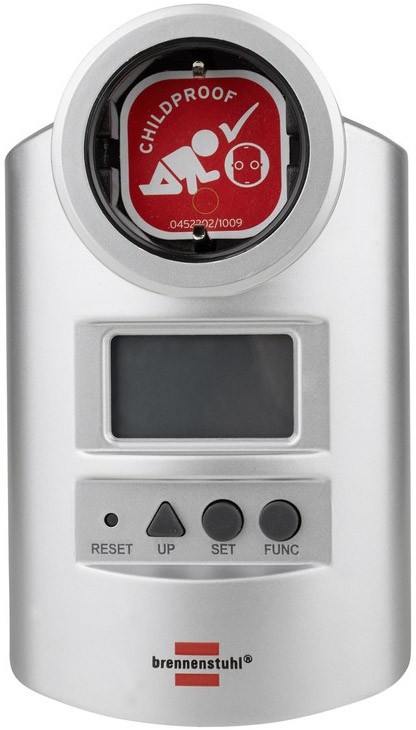

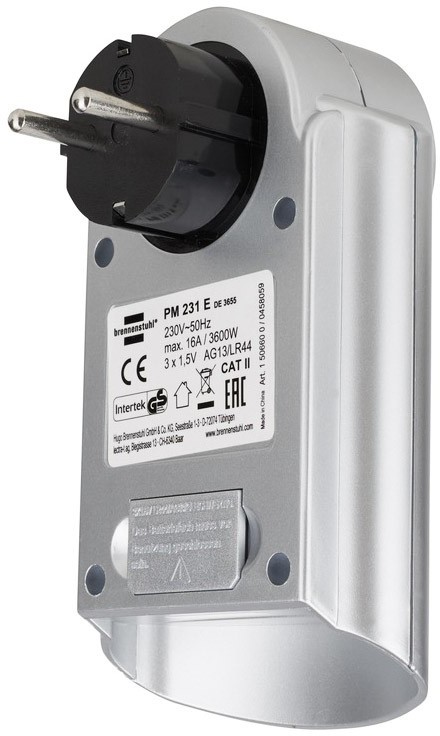

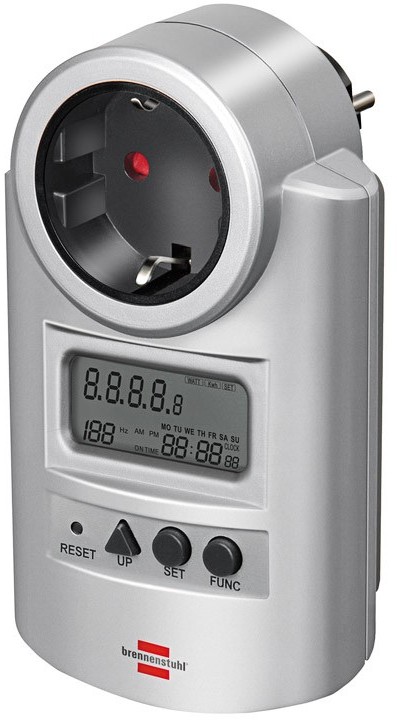

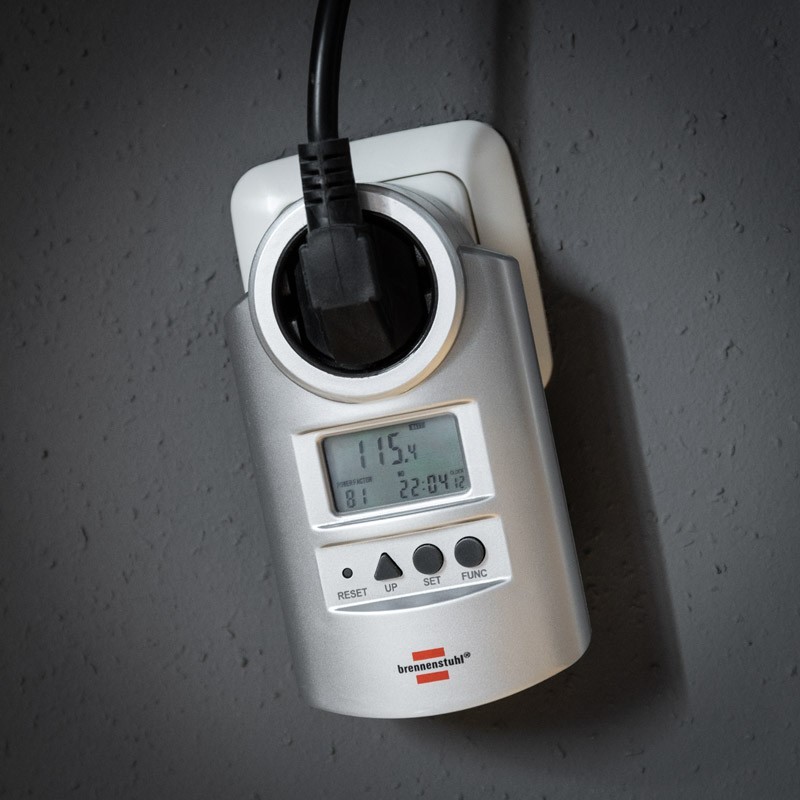

Energy power meter
