DIGITUS Extender Set HDMI Fiber 4K/60Hz schwarz
- Tootel on komplektis kaasas laadija ja/või vahelduvvooluadapter.
HDMI 4K/60Hz Fiber Optic Extender with KVM USB 1.1 over IP 1G or up to 40 km/300 m, max. 253 Receivers, HDMI Loop-Out, Audio Set
This kit allows transmission of UHD HDMI signals (4K/60Hz) over distances of up to 40 km (single-mode) / 300 m (multi-mode) in point-to-point configuration and offers KVM functionality on the receiver side.
The set enables high-resolution 4K/60Hz (3840x2160p) AV signal transmission over long distances using fiber optic cables. Both single-mode (SM) and multi-mode (MM) fibers are supported. In point-to-point mode, signals can be transmitted losslessly up to 40 km (single-mode) or 300 m (multi-mode).
The device also supports point-to-multipoint connections, allowing distribution of signals to up to 253 receivers (displays). By utilizing 1G network switches and existing 1G infrastructure, signals can be transmitted over unlimited distances through cascading, enabling flexible system expansion. For multi-display projects, the extender set can be expanded with additional receivers (RX), sold separately (model: DS-55349).
The system is compatible with LC and SC SFP modules, which are available separately (LC single-mode (SM): DN-81002, LC multi-mode (MM): DN-81000). Support for both single-mode and multi-mode fiber cables ensures high flexibility for various applications.
A standout feature of this extender is the receiver-side KVM function, allowing direct control of the source using a mouse and keyboard. Additionally, a 3.5 mm stereo jack is provided for separate audio output, ensuring optimal sound transmission.
These advanced features make the HDMI fiber optic KVM extender ideal for data centers, conference rooms, digital signage, broadcast environments, and industrial applications that require stable, lossless, high-resolution AV transmission over long distances.
Key Features:
- Long-range transmission: AV signal over fiber - single-mode up to 40 km, multi-mode up to 300 m (point-to-point)

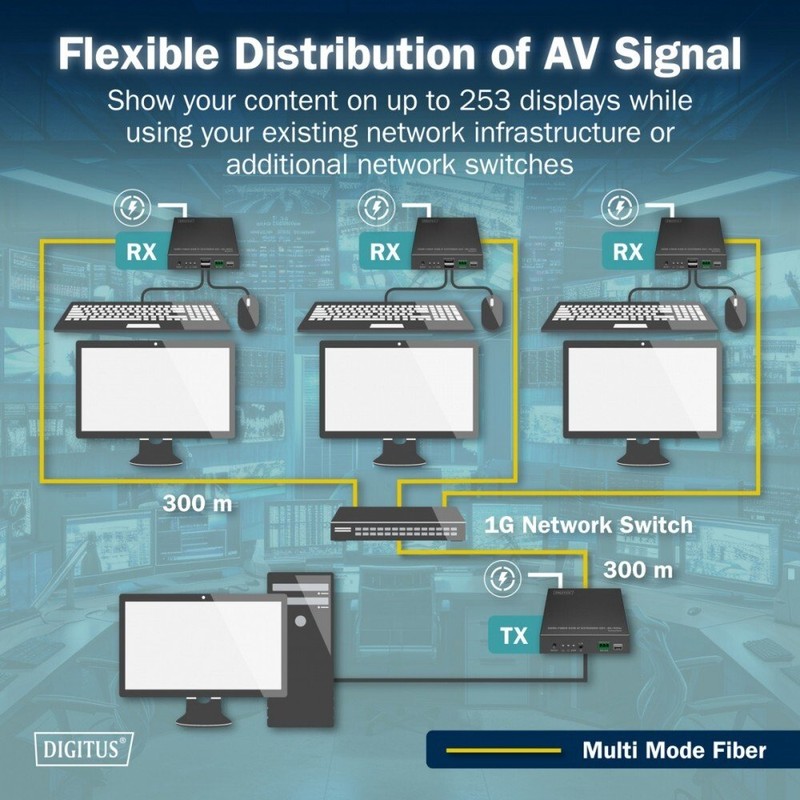

- IP-based scalability: Supports up to 253 receivers (displays) - point-to-multipoint

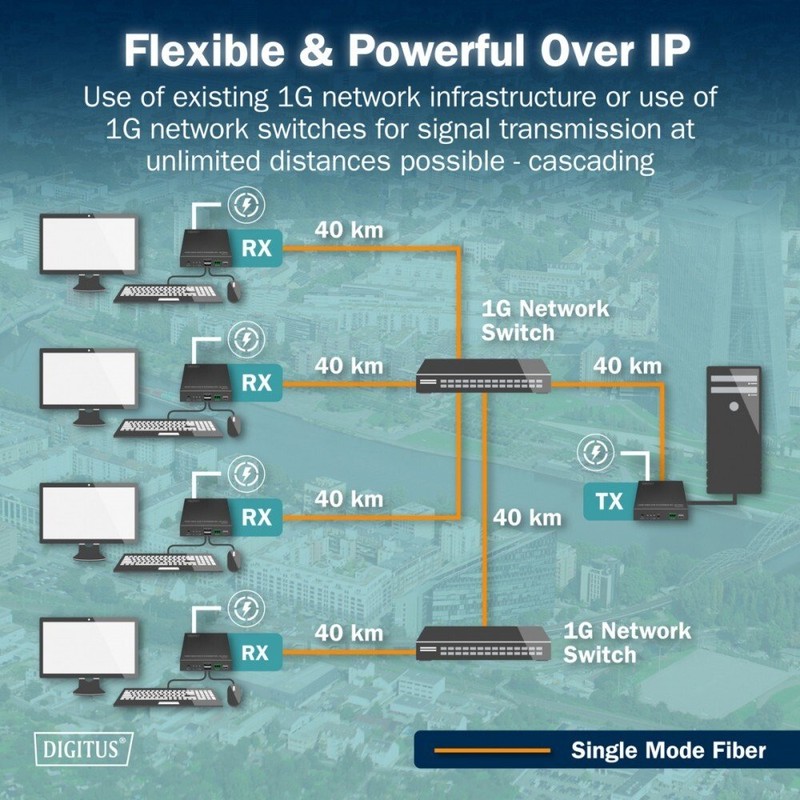

- Flexible and efficient over IP: Utilizes existing 1G network infrastructure or 1G switches for unlimited distance transmission via cascading
- Expansion options: Additional receivers (RX) available separately (DS-55349)
- SFP modules sold separately: LC single-mode (SM): DN-81002, LC multi-mode (MM): DN-81000
- Wide compatibility: Supports LC and SC SFP modules and both single-mode and multi-mode fiber cables
- Exceptional image quality: UHD transmission up to 4K/60Hz (3840x2160p) with low latency of 80140 ms

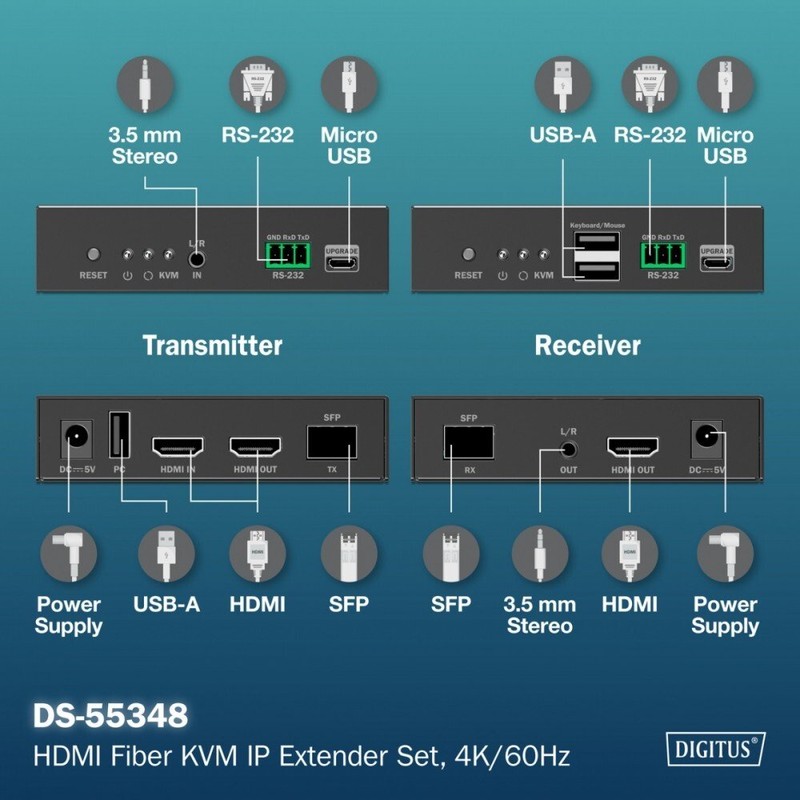

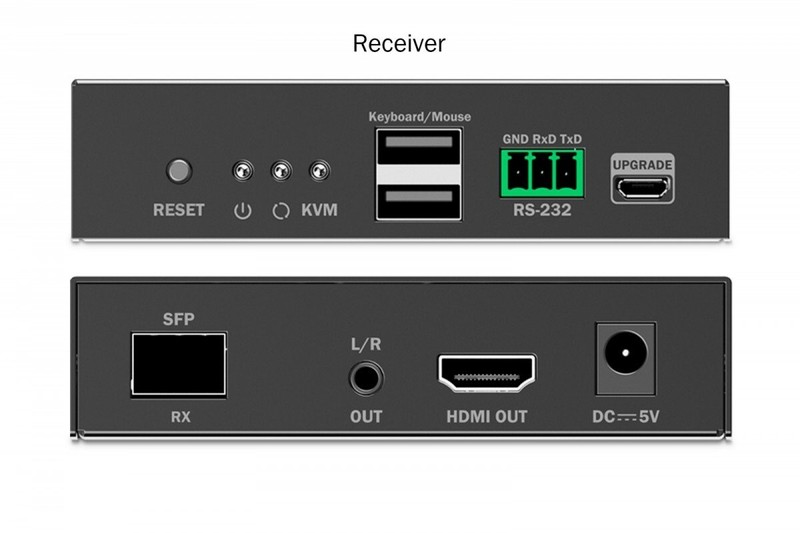

- Receiver-side KVM: Connect mouse and keyboard to control the source directly
- Additional audio output: 3.5 mm stereo jack for separate sound transmission

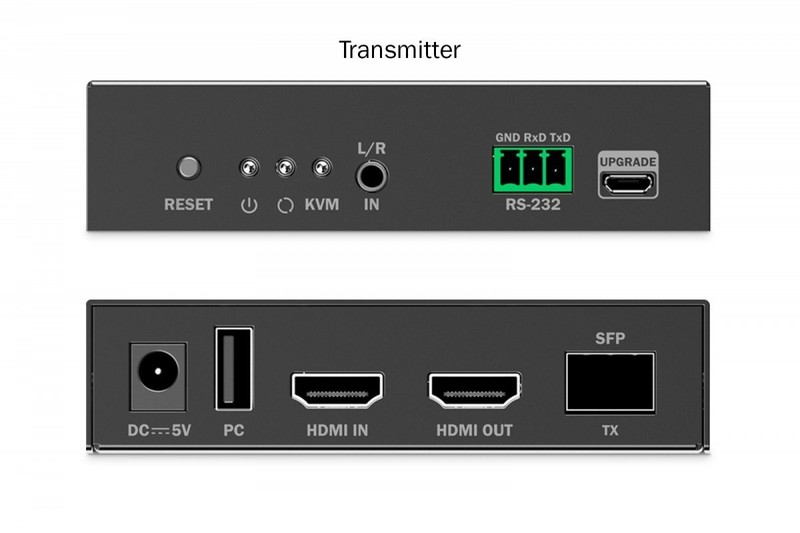

- HDMI Loop-Out: Connect a local monitor to the transmitter (TX)
